Maintaining a clean and safe environment is crucial in 3D printing, especially when working with materials that emit volatile organic compounds (VOCs) and ultrafine particles (UFPs). The Nevermore StealthMax V2 is a cutting-edge filtration system designed to tackle these challenges head-on, ensuring optimal air quality within enclosed 3D printer chambers. With advanced filtration technology, modular adaptability, and high-performance airflow, this system is a must-have for serious makers and professionals.
Why Filtration Matters in 3D Printing
3D printers, particularly those using ABS, ASA, and resin-based materials, release harmful VOCs and fine particulates during operation. These emissions can cause headaches, respiratory irritation, and long-term health risks if not properly managed. While ventilation helps, a dedicated filtration system like the Nevermore StealthMax V2 ensures a controlled and effective approach to air purification.

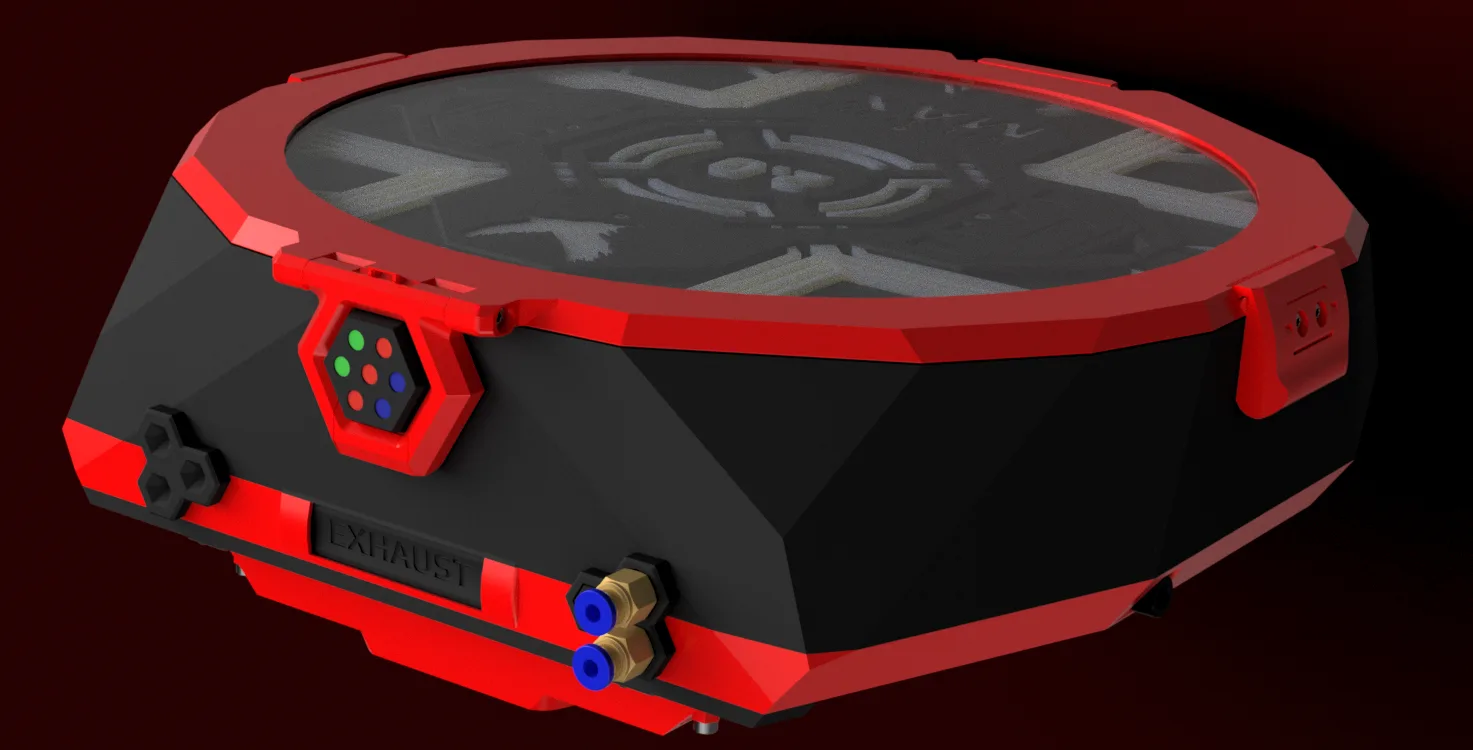

Technical Breakdown of the StealthMax V2
The Nevermore StealthMax V2 is engineered for high-efficiency filtration within enclosed 3D printer chambers. Here’s a closer look at its technical specifications:
- Industrial-Grade H14 HEPA Filter: The StealthMax V2 features a 99.995% efficient H14 HEPA filter, capable of capturing ultrafine particles down to 0.3 microns. This is a significant upgrade from previous models that relied on uncertified vacuum filters.
- Advanced Activated Carbon Filtration: The system includes premium activated carbon, specifically designed to absorb VOCs like styrene, benzaldehyde, and toluene. This ensures harmful fumes are effectively neutralized.
- High-Performance 7020 Fan: The new MX7020GBH2 fan delivers twice the airflow compared to previous models while maintaining the same noise level. This means quieter operation and more efficient filtration.
- Servo-Controlled Vent System: Unlike previous versions, the StealthMax V2 features a servo-controlled exhaust vent, allowing users to regulate chamber temperatures when printing PLA. This ensures optimal thermal conditions without compromising filtration efficiency.
- Modular & Customizable: Users can swap out different filtration materials depending on their printing needs, ensuring long-term adaptability.
Advantages of Nevermore Scorch and Nevermore Carbon
While the StealthMax V2 is a powerful filtration system, its effectiveness can be further enhanced with Nevermore Scorch and Nevermore Carbon, two specialized filtration media designed for different printing environments.
Nevermore Scorch: High-Temperature VOC Filtration
Nevermore Scorch is an advanced air filtration medium designed for high-temperature 3D printer chambers. Traditional carbon filters lose efficiency above 50°C, but Scorch excels in heated environments, capturing a wider range of VOCs.
- Heat-Resistant Filtration: Unlike standard carbon filters, Scorch remains effective at temperatures above 60°C, making it ideal for heated chambers.
- Zeolite-Based Adsorption: Scorch uses zeolite and potassium permanganate (KMnO4) to permanently trap VOCs and convert harmful gases like styrene into safer by-products such as potassium benzoate.
- Color-Based Replacement Indicator: The filter material changes from bright purple to dull grey, signaling when it’s time for replacement.
- Customizable Mixing Ratios: Users can mix Scorch with activated carbon based on their chamber temperature:
- Below 35°C: 90% Carbon / 10% Scorch
- 40°C ± 5°C: 75% Carbon / 25% Scorch
- 50°C ± 5°C: 50% Carbon / 50% Scorch
- 60°C ± 5°C: 25% Carbon / 75% Scorch
- Above 65°C: 100% Scorch
Nevermore Carbon: Optimized VOC Absorption
Nevermore Carbon is a high-quality activated carbon designed for VOC absorption in standard 3D printing environments. It is particularly effective for filament-based printing, where materials like ABS and ASA release harmful fumes.
- Premium Carbon Pellets: Nevermore Carbon is optimized for VOC absorption, ensuring maximum efficiency in enclosed chambers.
- Long-Lasting Performance: The pellets maintain their effectiveness over extended periods, reducing the frequency of filter replacements.
- Compatible with StealthMax V2: Nevermore Carbon works seamlessly with the StealthMax V2, enhancing its filtration capabilities.
Installation & Maintenance
Setting up the StealthMax V2 is straightforward, making it accessible even for beginners. It fits seamlessly into most enclosed 3D printers and comes with a simple plug-and-play design. Once installed, the system operates automatically, continuously filtering the air without requiring user intervention.
Maintenance is also hassle-free, with filters that are easy to replace and designed for long-term durability. The modular nature of the system means users can upgrade filtration elements as needed, adapting to changes in printing materials or environmental conditions.
Who Should Use the StealthMax V2?
The StealthMax V2 isn’t just for professionals—it’s a must-have for anyone serious about improving air quality while 3D printing. Whether you’re printing in an enclosed office, a small apartment, or a dedicated workshop, ensuring a safer printing experience is essential.
- Makers & Hobbyists: If you frequently print with materials like ABS or resin, this filtration system helps eliminate odors and potential health risks.
- Small Business Owners: Businesses using 3D printing for prototyping or production benefit from enhanced air quality, ensuring workplace safety.
- Education & Research Labs: Institutions incorporating 3D printing into STEM education or research facilities will find this system invaluable for protecting users from airborne contaminants.
Conclusion: A Worthwhile Investment
Investing in the Nevermore StealthMax V2 isn’t just about improving print quality—it’s about safeguarding health and optimizing the printing experience. With its advanced filtration technology, quiet operation, and modular flexibility, it stands as one of the best filtration solutions for enclosed 3D printers.
Pairing the StealthMax V2 with Nevermore Scorch and Nevermore Carbon ensures maximum VOC absorption and air purification, making it the ultimate filtration setup for high-performance 3D printing.
If you’re passionate about high-quality prints and a safe workspace, upgrading to the Nevermore StealthMax V2 with Scorch and Carbon is a smart investment. Ready to breathe easier? Take your 3D printing environment to the next level today!
More info on the Nevermore GIT.
