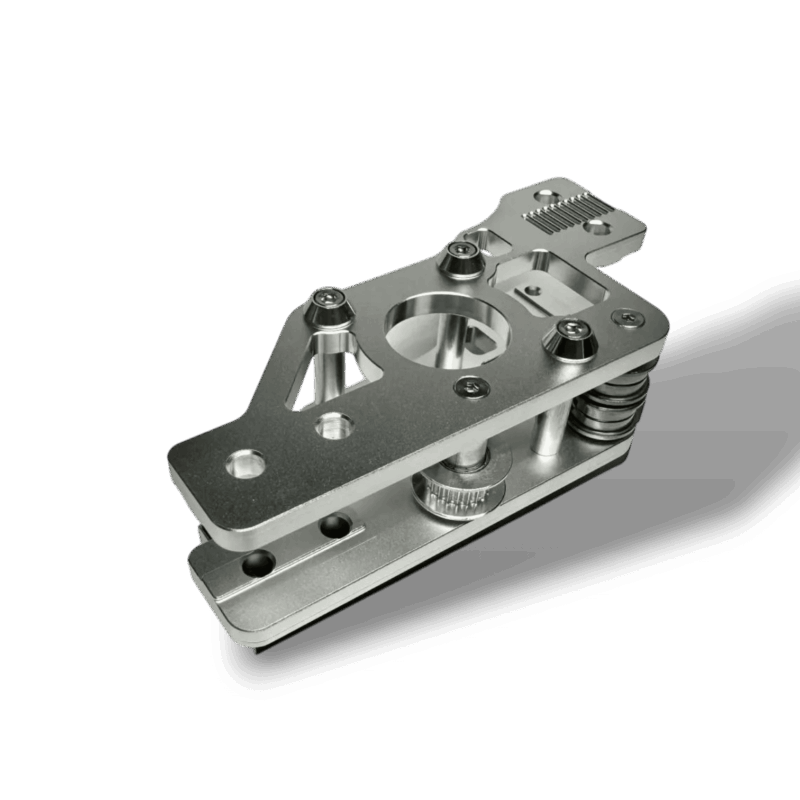

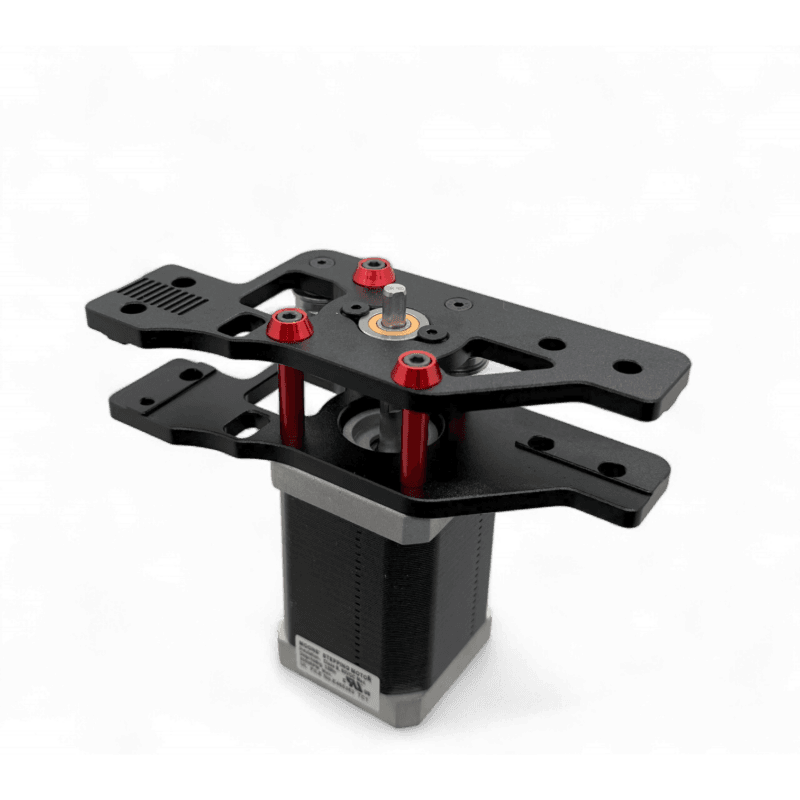

Vitalii3D CNC Double Shear Voron 2.4 AB Motor Mounts

The Vitalii3D CNC Double Shear Voron 2.4 AB Motor Mounts are precision-machined from 5mm 6061 aluminium, offering superior rigidity and thermal performance for Voron 2.4 motion systems.

Description

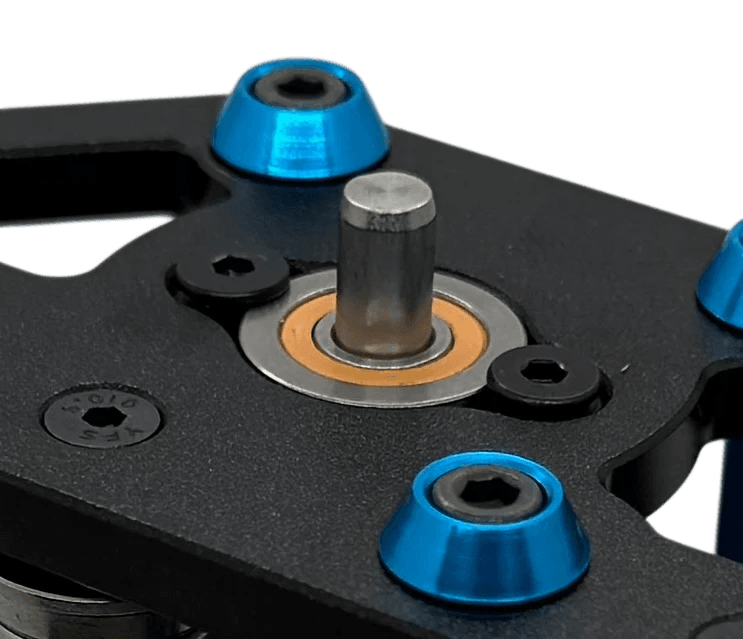

Machined out of 6061 aluminium, 5mm thick mounts add rigidity to the gantry and help to cool down motors. Designed to provide extra support to motor shaft using F695 bearing. Steppers with a minimum shaft length of 35mm required!

• Stainless steel pins are used for all motion elements, no M5 bolts anymore
• Double shear to support extra tension
• 5mm 6061 aluminium is perfect to cool down motor during work

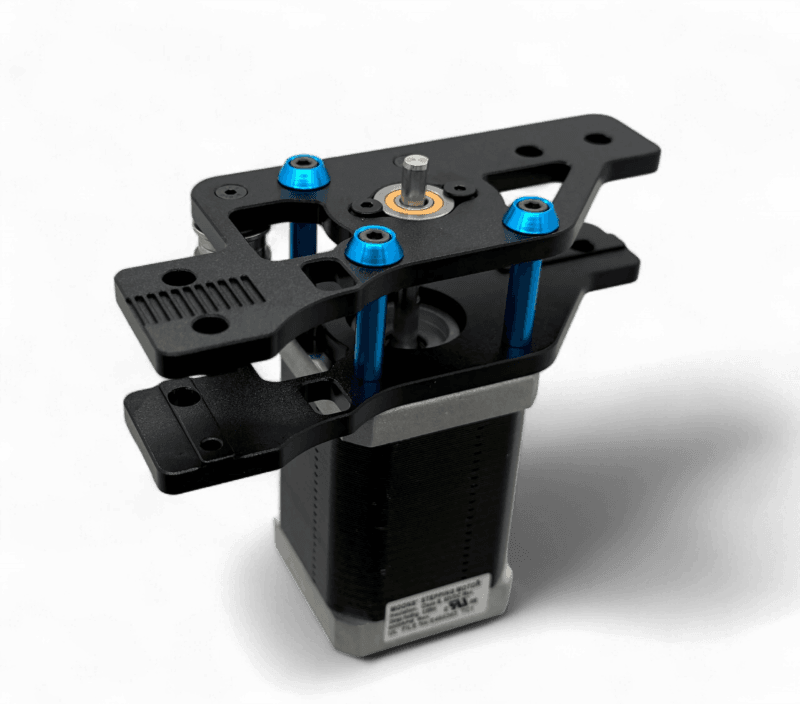

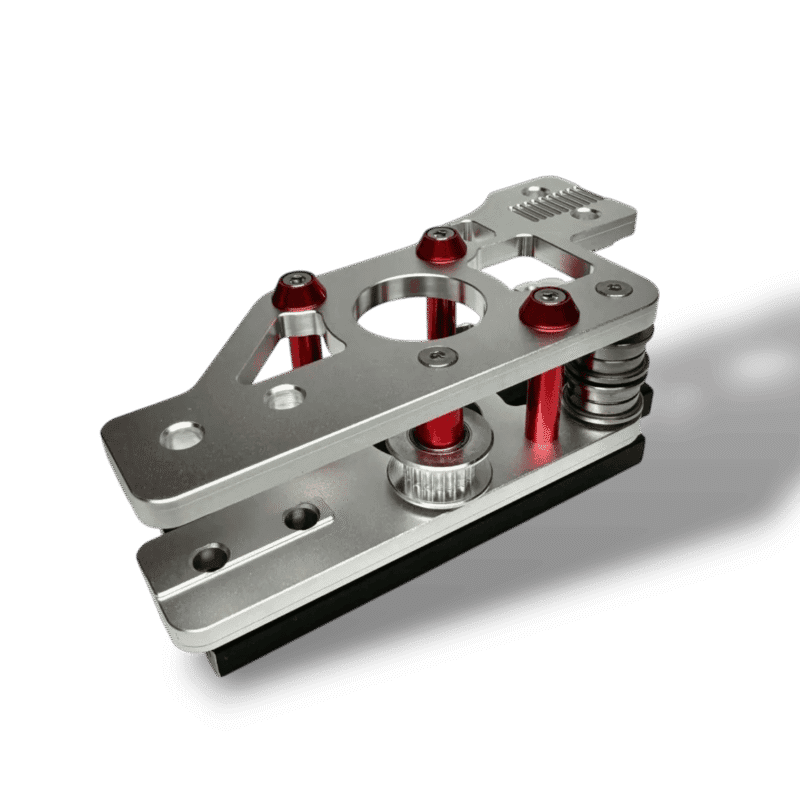

• Many accent colours are available

‼️ Assembling Instructions

Contents

• 4 aluminium parts
• 4 precision steel pins
• 8 FSHCS M3x8mm bolts
• 6 SHSC M3x35 bolts
• 6 Cup Washers
• 6 M3x20 spacers
• 2 M5x10 spacers
• Not included: Bearings 14pcs

Required items from printed set

• M5 bolts
• Bearings
• Belt Clamps

Printable Addons

• Voron Z-Chain Move moves Z Chain under the gantry
• Voron 2.4 Vitalii CNC AB Drive Units Top Bearing and Z-Chain Mount
• Vitalii CNC Aluminium Gantry Z-Chain/Endstop Mount
