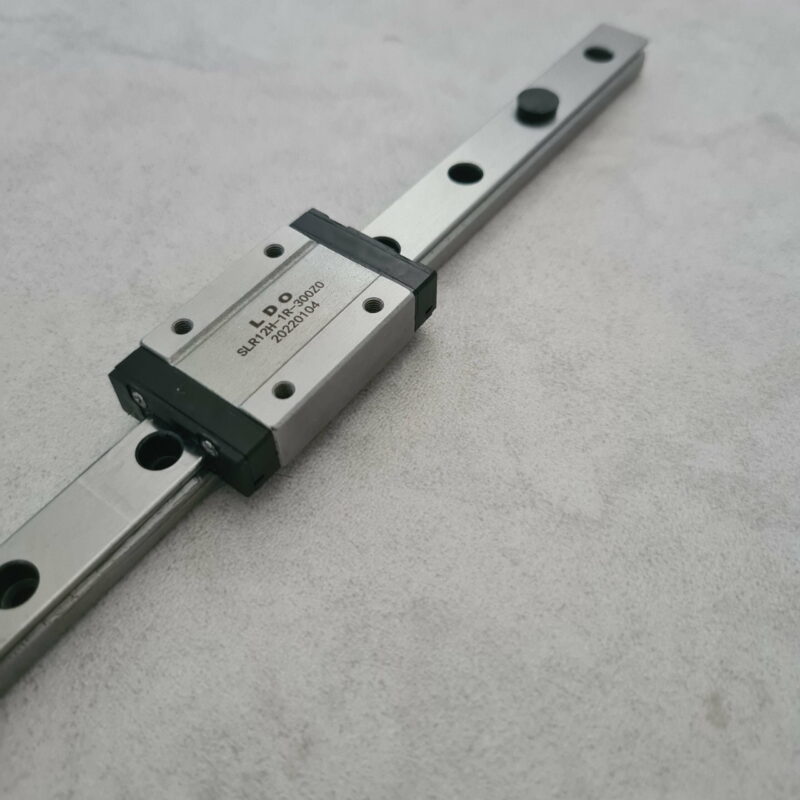

Stainless Steel Linear Rails MGN12H (LDO)

This version of the LDO linear rails are made from stainless steel, instead of bearing steel (Gr15). That means no more oxidising rails.

LDO Linear Rails for the Voron 2.4, Switchwire & Voron Trident and the VzBot:

• Stainless steel
• Incl. carriage
• Type: MGN12H
• Pre-load: Z1
• Length: 300mm, 350mm & 400mm
• Part-No. LDO-SLR12H-1R-xxxZ1

Please make sure to clean the rails with a piece of cloth and then lubricate them with lithium grease before installation.

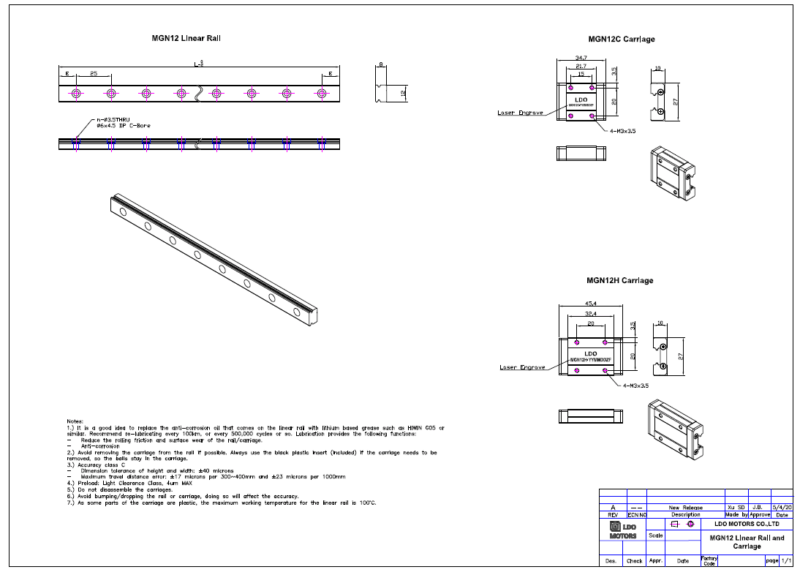

Datasheet: LDO-MGN12_Linear_Rail_RevA

Info about pre-load on linear rails (why they don’t move “smooth”)
