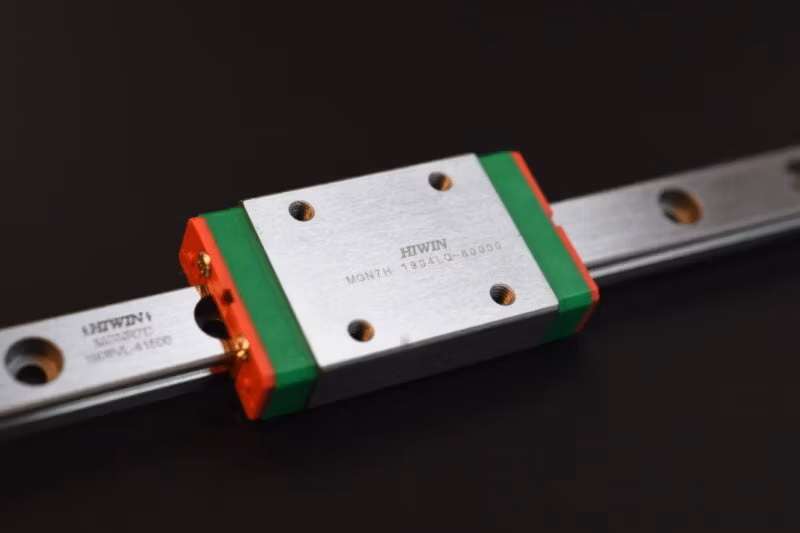

HIWIN MG Series Miniature Linear Rails

US$51.28US$106.53

High quality linear rails from HIWIN. Sourced from an authorized HIWIN distributor. Please select the size and carriage needed.

Add to Cart
HiWin Linear Rails
HIWIN MG Series Miniature Linear Rails
US$51.28US$106.53

HIWIN MG Series Miniature Linear Rails

High quality HIWIN MG Series Miniature Linear Rails. Sourced from an authorized HIWIN distributor. Please select the size and carriage needed.

  • Carriage pre-installed
  • Preload: Z1
  • Accuracy: H
  • Material: 440C (stainless steel)

Article codes

  • MGN7H 150mm (MGN7H-1-R150-Z1HM E=7.5)
  • MGN9H 300mm (MGN9H-1-R300-Z1HM E=10)
  • MGN9H 350mm (MGN9H-1-R350-Z1HM E=5)
  • MGN9H 400mm (MGN9H-1-R400-Z1HM E=10)
  • MGN12H 300mm (MGN12H-1-R300-Z1HM E=12.5)
  • MGN12H 350mm (MGN12H-1-R350-Z1HM E=12.5)
  • MGN12H 400mm (MGN12H-1-R400-Z1HM E=12.5)

Technical Data

Hiwin MGN Rails Technical Drawing
Hiwin MGN Rails Technical Drawing
HiWin Linear Rails Technical Data
HiWin Linear Rails Technical Data

We strongly recommend: Do not remove the carriage from the profile rail before installation or for cleaning! Warning: Removing the wagon will expire any warranty!

Download Installation guide

Download Technical Data

Info about pre-load on linear rails (why they don’t move “smooth”)

Additional information

WeightN/A
DimensionsN/A
Size

150mm, 300mm, 350mm, 400mm

Variant

MGN12H, MGN7H, MGN9C, MGN9H

Brand

HIWIN
