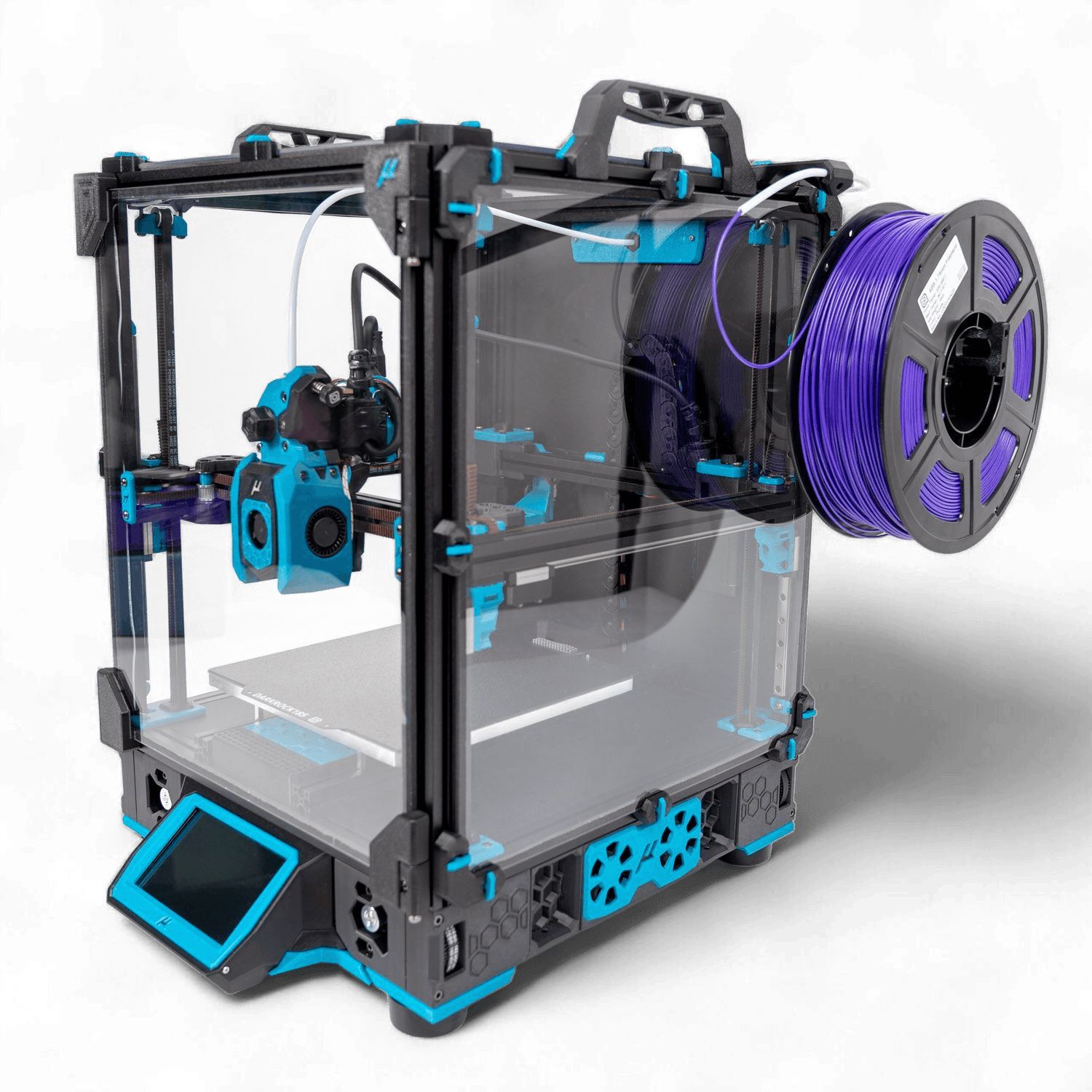

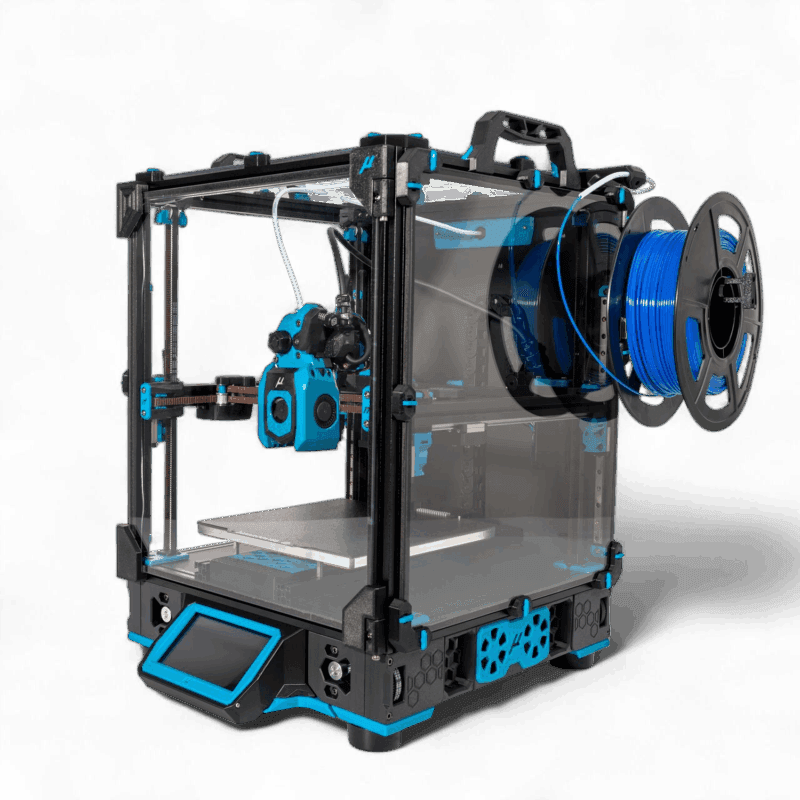

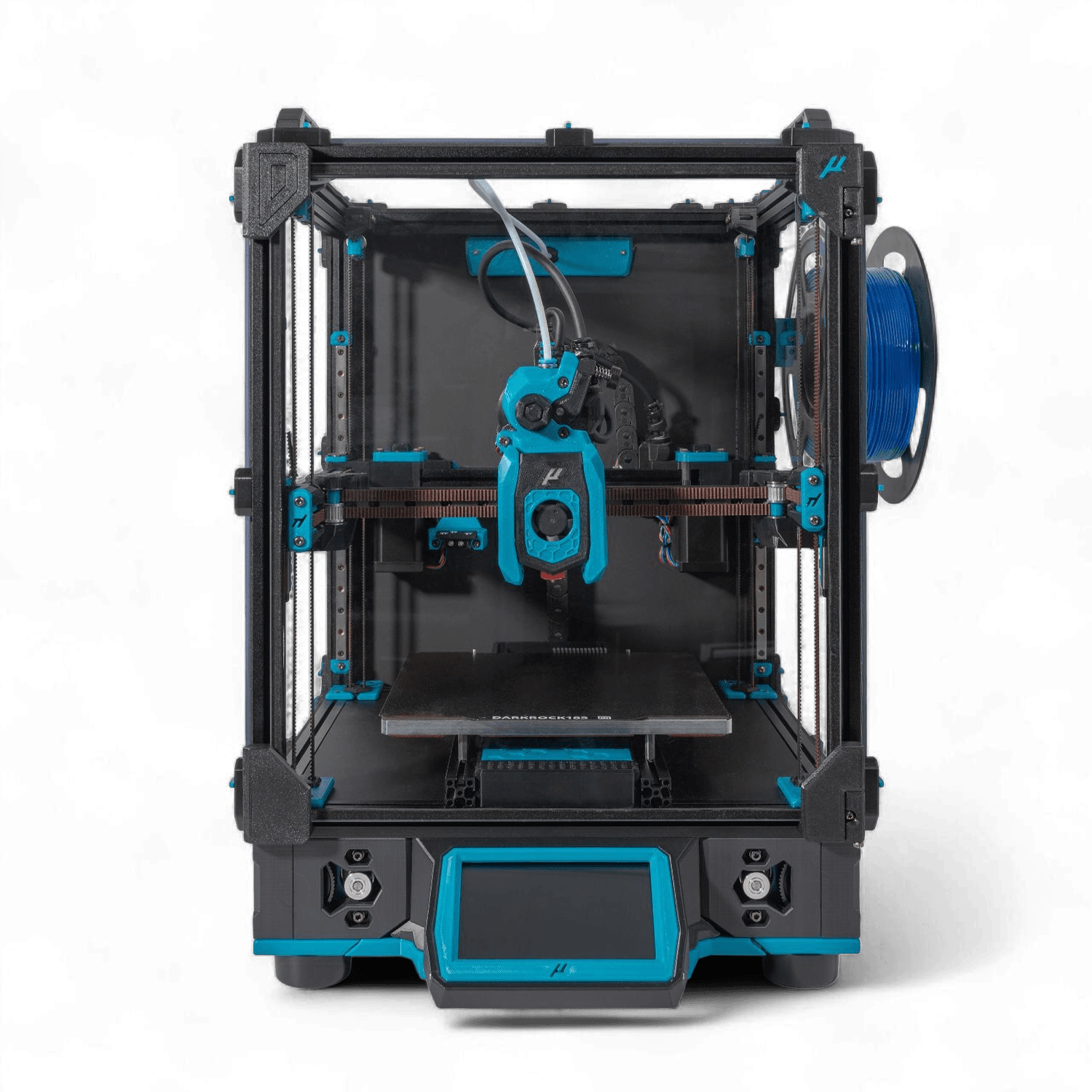

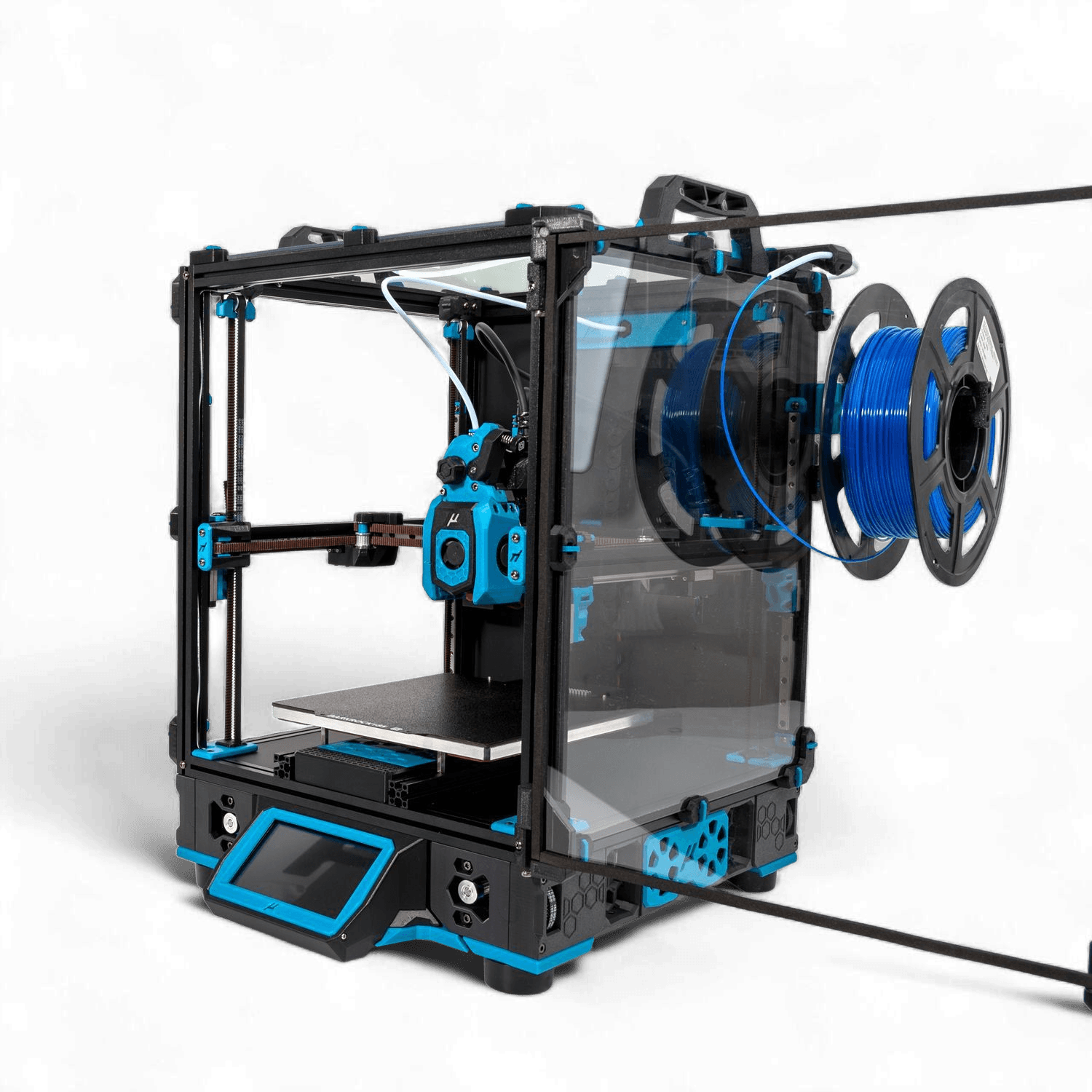

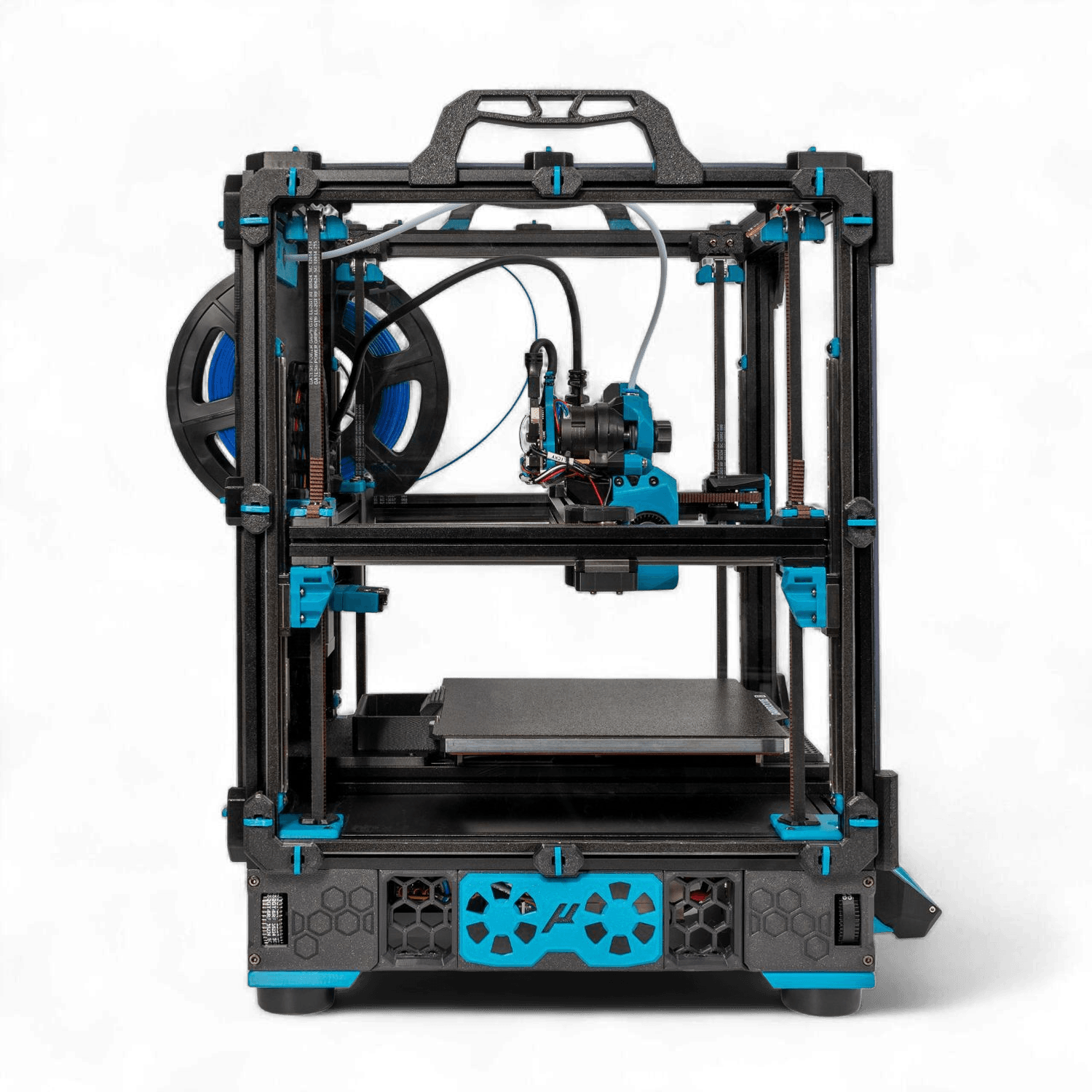

LDO Micron+ R1 DIY Kit

The Micron+ R1 is a refined, miniaturised version of the Voron V2.4, optimized for a 180×180mm build volume. Developed by LDO and tested by its original developer HartK and other community members, it features precision motion systems, robust power delivery, and compatibility with Klipper firmware. Despite its compact footprint, it offers full-scale performance for demanding filament types and high-speed printing.

Main features:

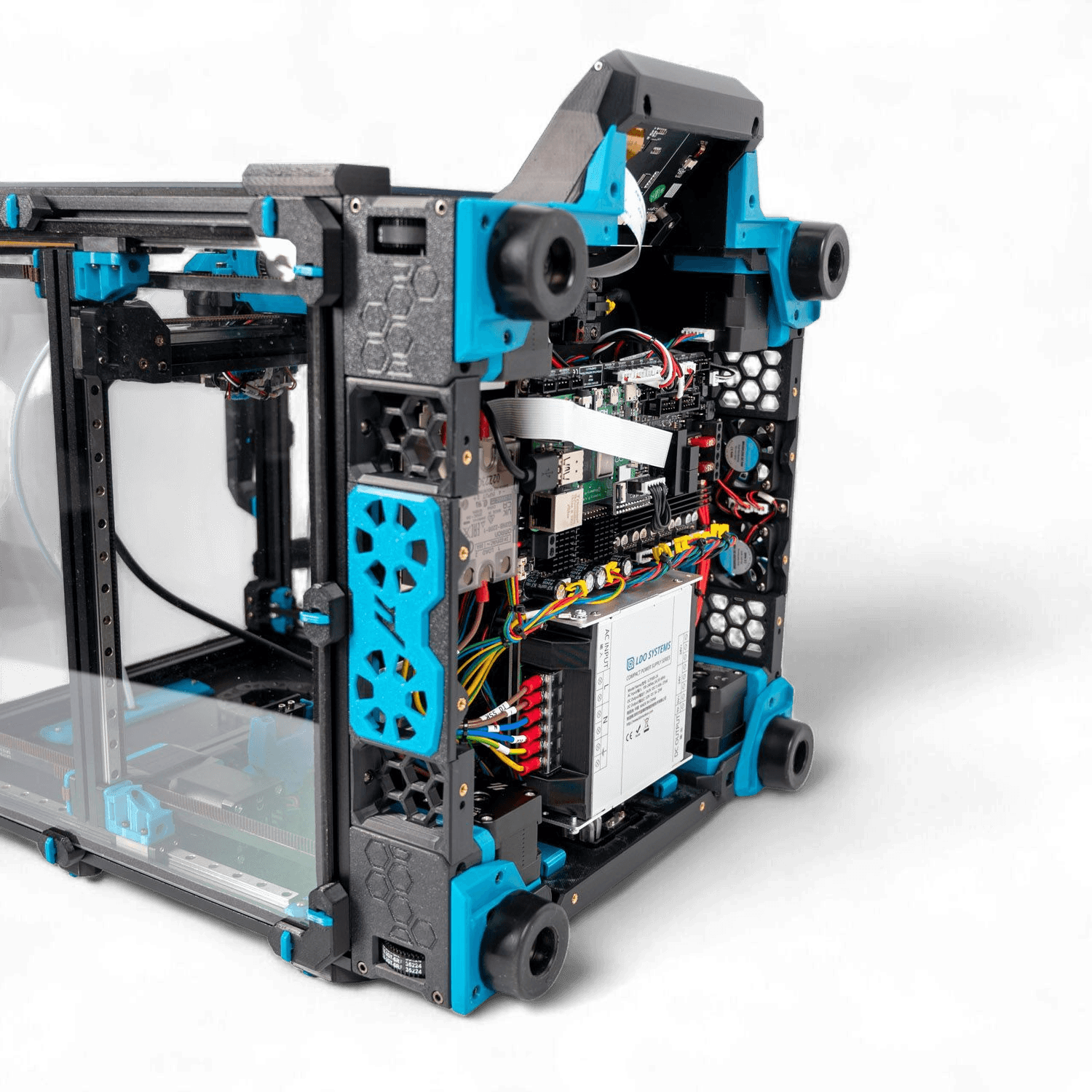

• Electronics: LDO Leviathan board, with Nitehawk-36 toolhead board
• Raspberry Pi 4B

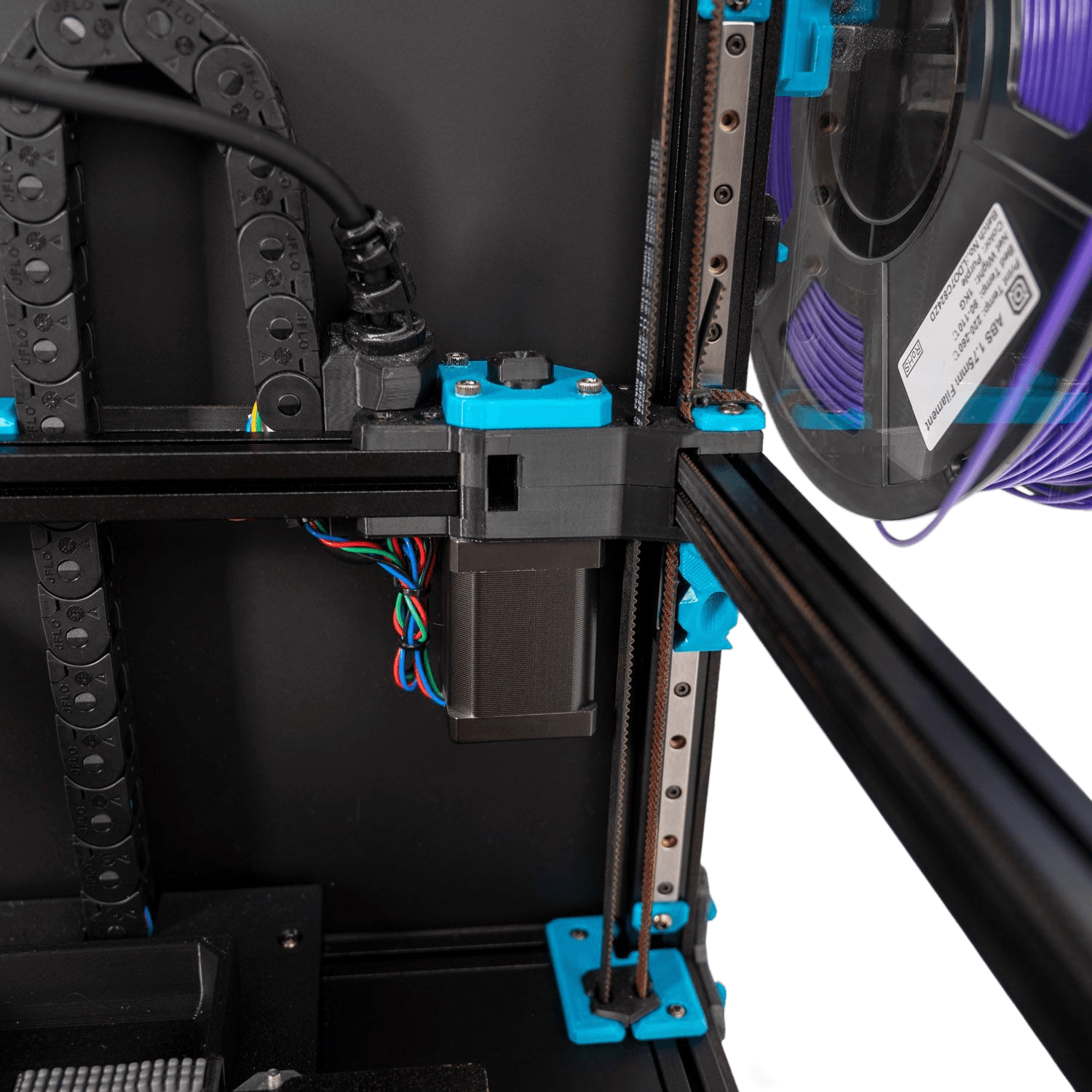

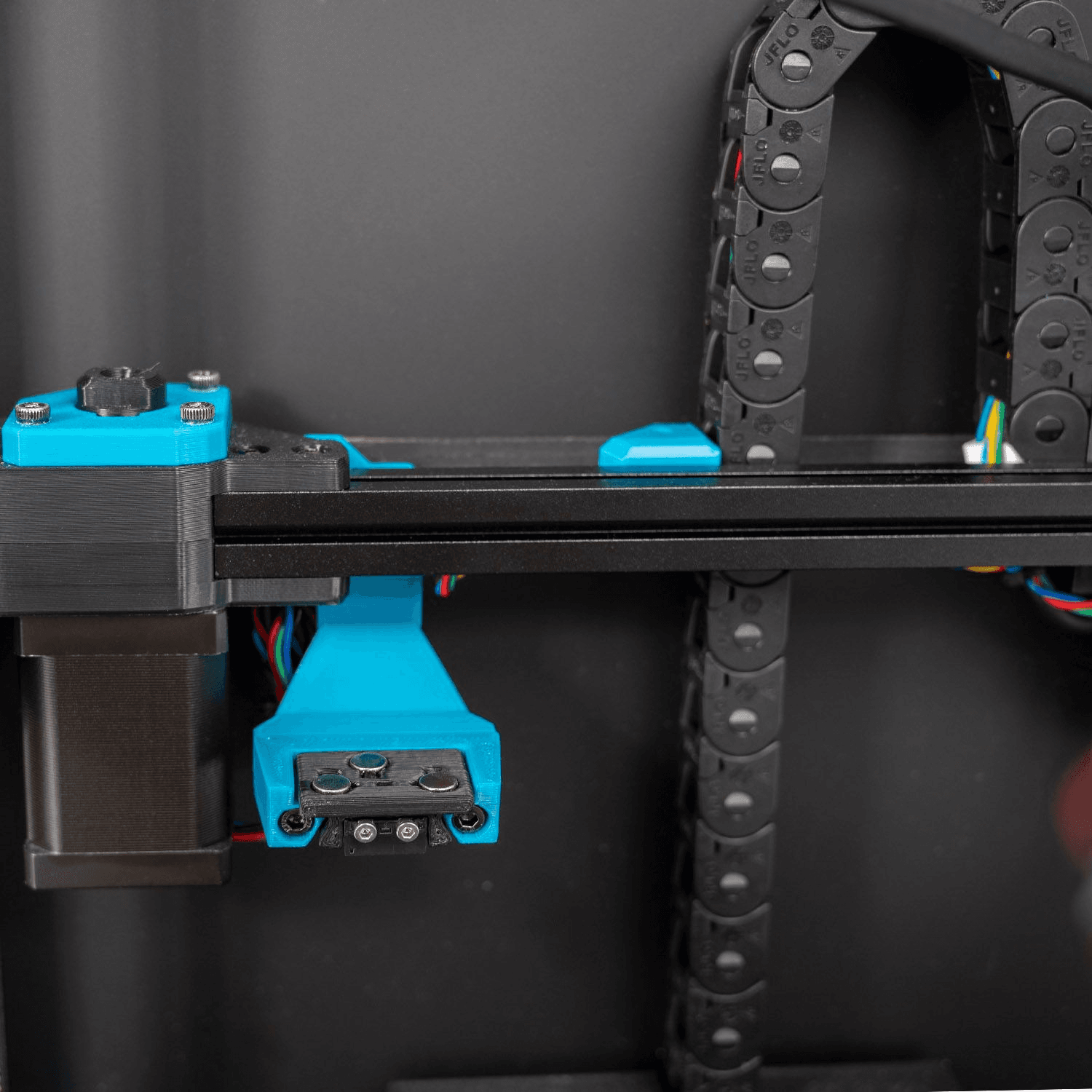

• Double Shear motor mount, with 35mm long shaft motor LDO-35STH52-2004AH(S35)

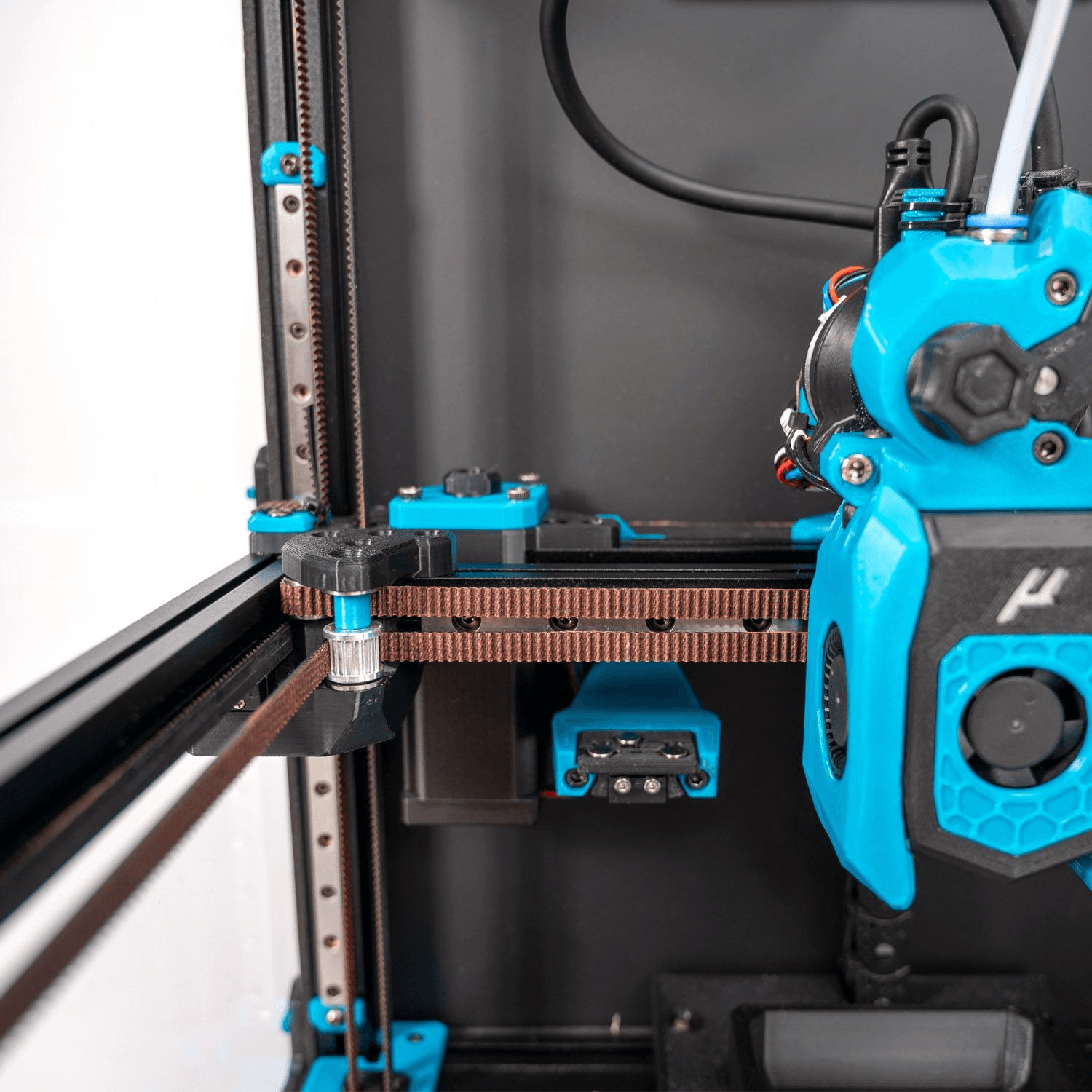

• Live Idlers for X/Y joints, precision pins for ABZ pulleys
• Custom under-bed PCB for Bed fans and filter
• Fast 300-watt bed heater
• Brand new LDO Compact PSU, with 275w 24v & 25w 5v outputs
• Latest R1 version, tested by original designer HartK and several community members

Due to the endless range of compatible hotends, LDO decided not to include one, but instead leave the choice to the user. Please add a hotend of your choice to the order and get a 10% discount on the hotend price (automatically added when the Micron+ and hotend are in the basket).

Technical Data:

• Printer Type: FDM 3D printer DIY Kit, self-assembly
• Model: LDO Micron Plus R1
• Printing Size: 180*180*165
• Construction: Core XY
• Controller Board: LDO Leviathan V1.3
• Weight: 11.06 KG
• Frame colour: black or space-grey
• Supported Filament: ABS/ASA/PC/PLA/PETG/TPU/
• Filament Diameter: 1.75mm
• Printing Speed: Depends on choice of Hotend
• Acceleration: 10000mm/s²
• Hotend Max Temperature: Depends on choice of Hotend
• Heated bed Max Temperature: 120C
• Levelling Mode: Quad Gantry Leveling (QGL), Klicky

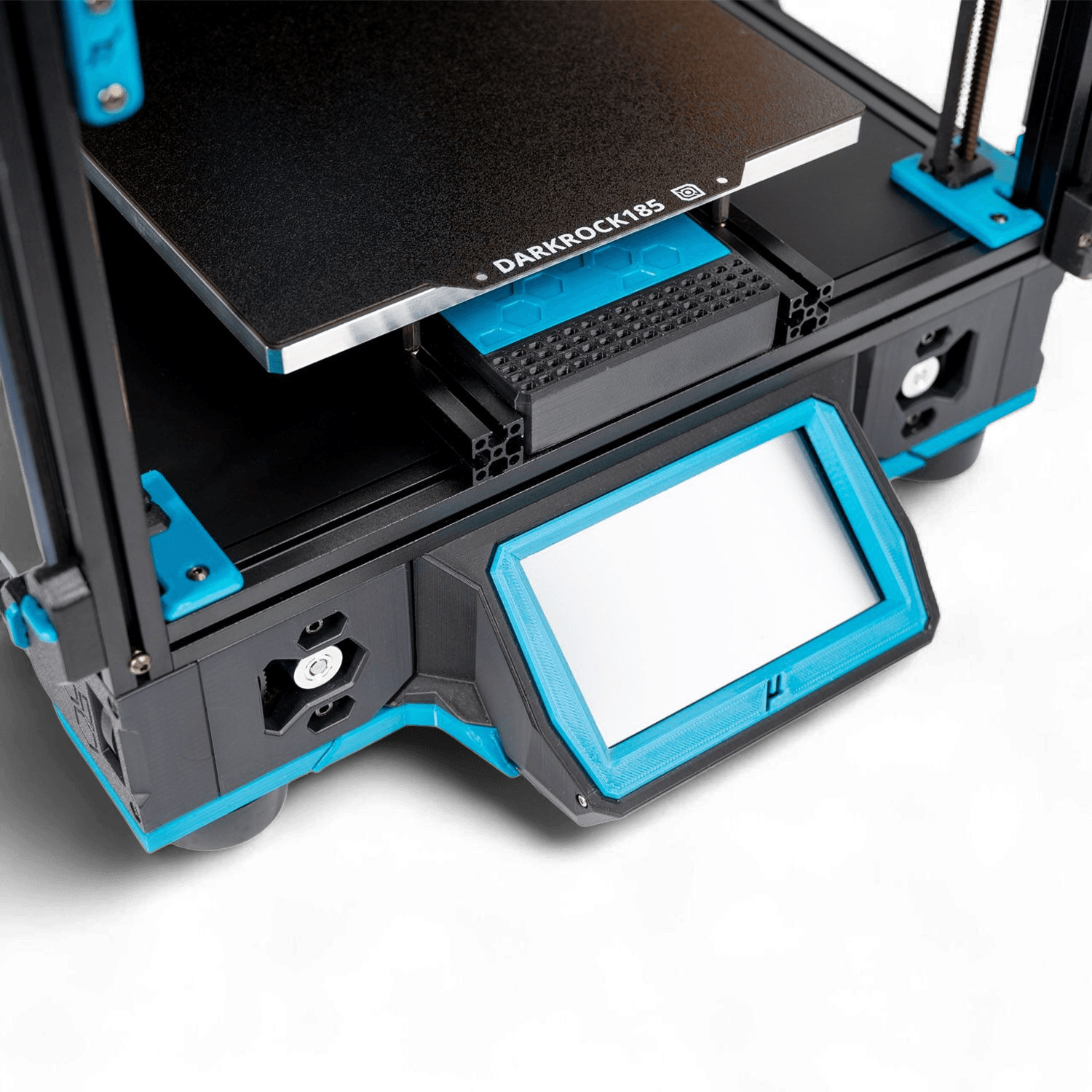

• Display Screen: Yes (BTT pi 4.3)
• Firmware: Klipper

More information on the Micron project can be found on GIT.
