Voron Daylight on a Stick by Blamm

Illuminate your printer with high-colour accuracy (90CRI) natural white CREE LEDs (JB2835AWT-W-U40GA, 4000K, 149lm/W). Ideal to take colour-accurate pictures of your printed objects in the chamber.

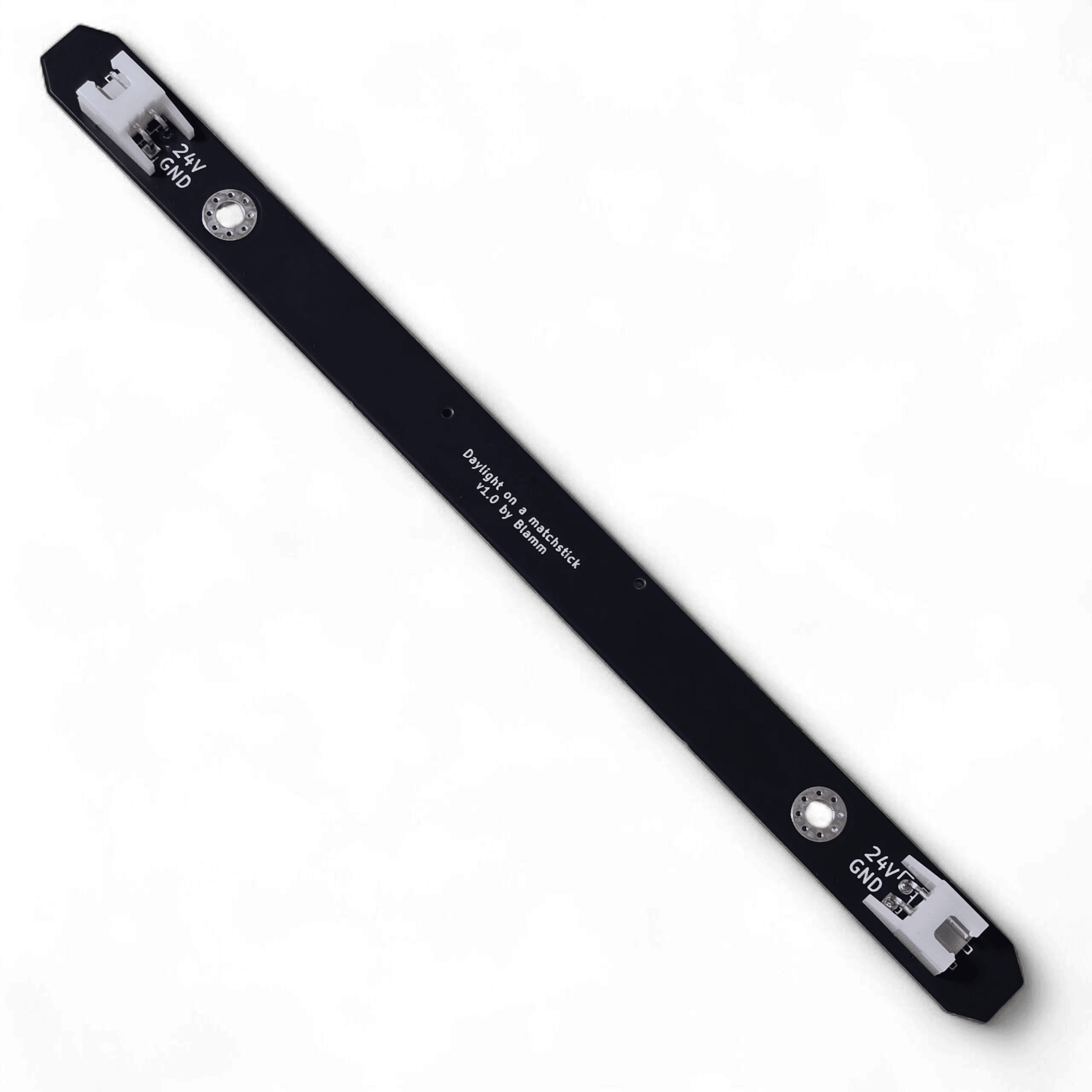

All sticks come including pre-soldered 90 degree JST-XH 2.54 connectors.

Each stick requires 24V and GND as supply and can be daisy-chained to other sticks.

Available in three versions:

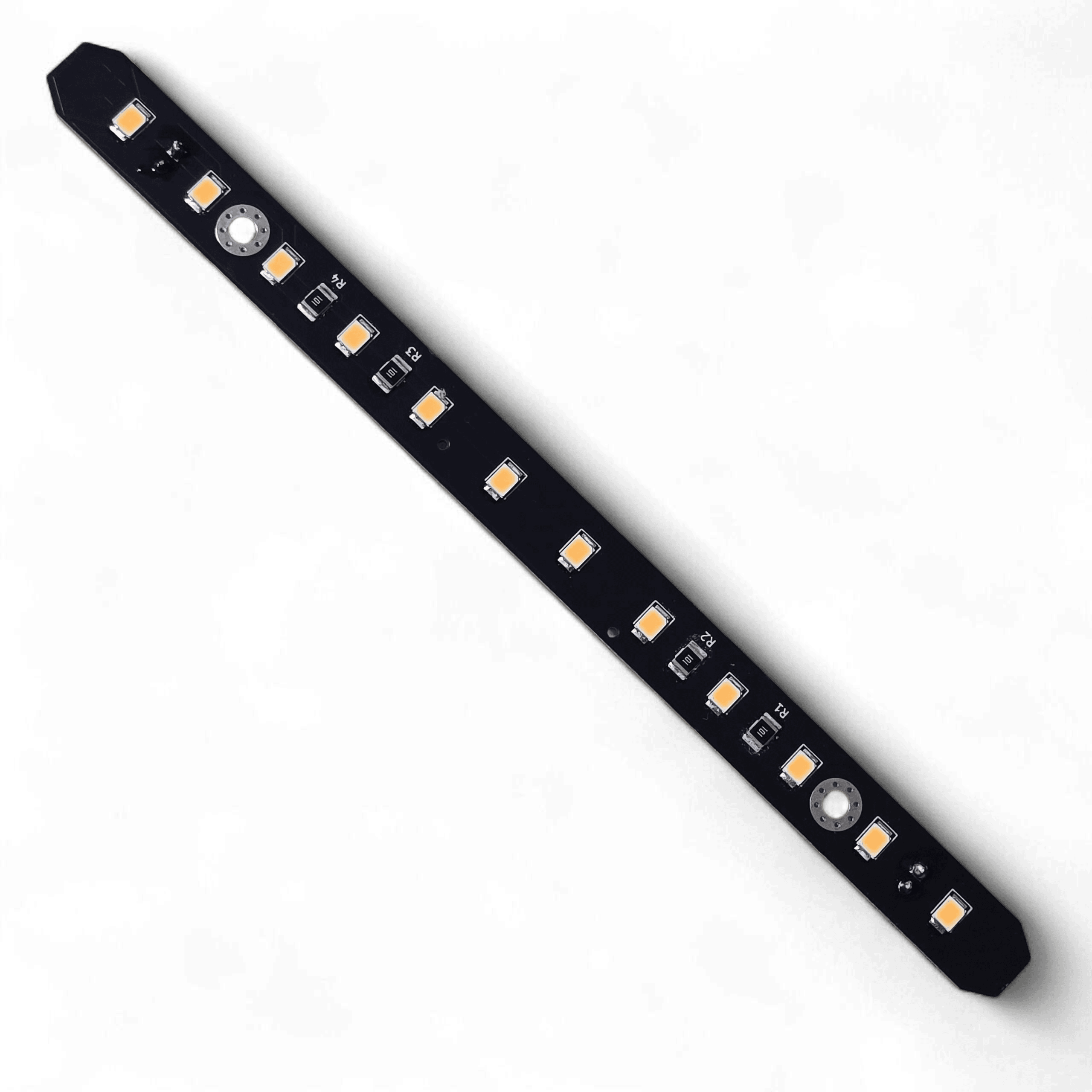

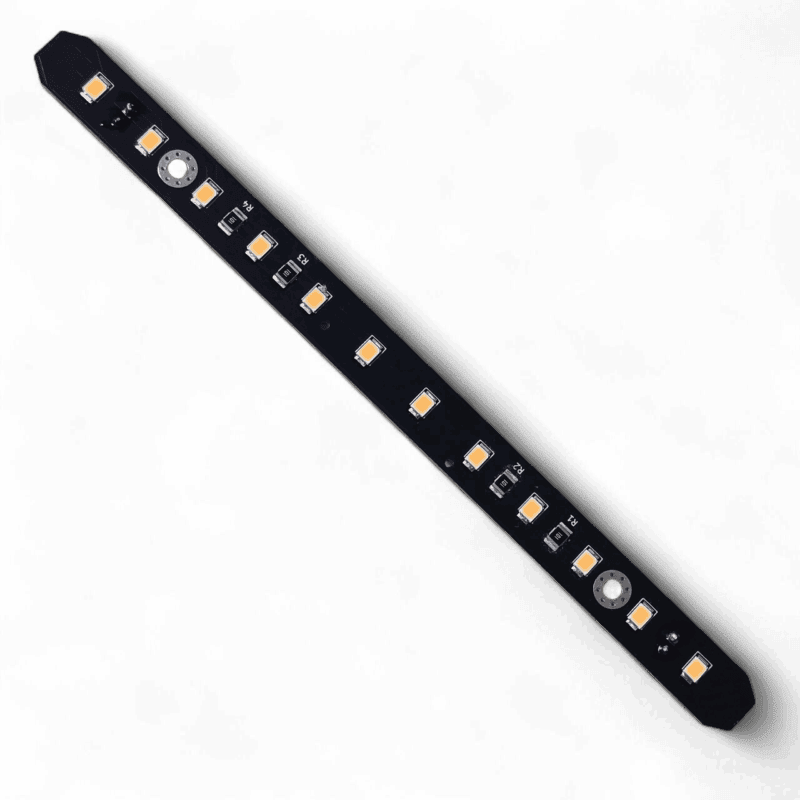

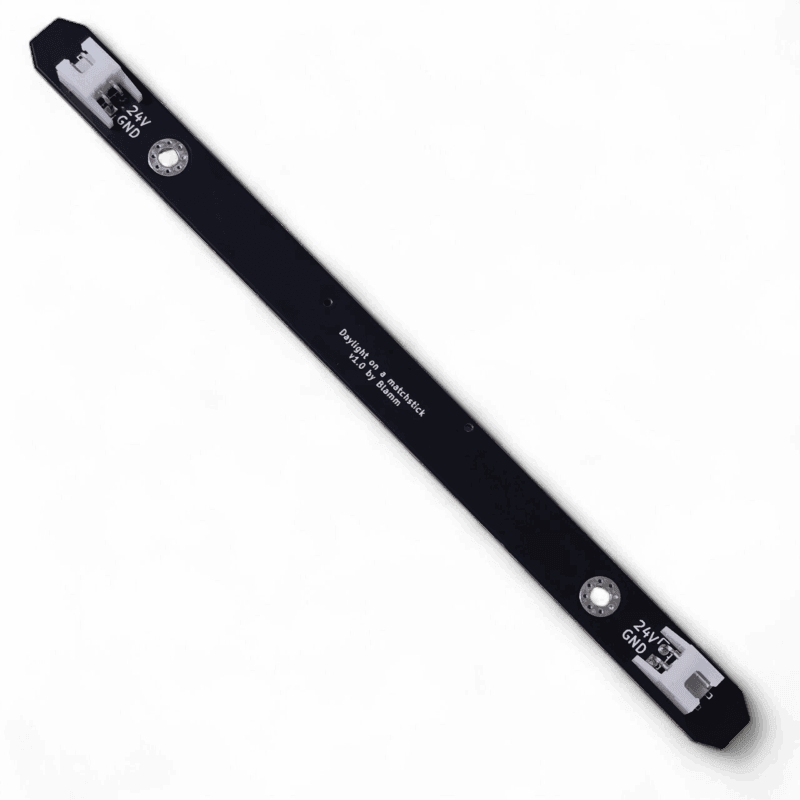

• Daylight on a Matchstick (12 natural-white LEDs, 158x11mm, for Voron 0.x or other printers for ants)

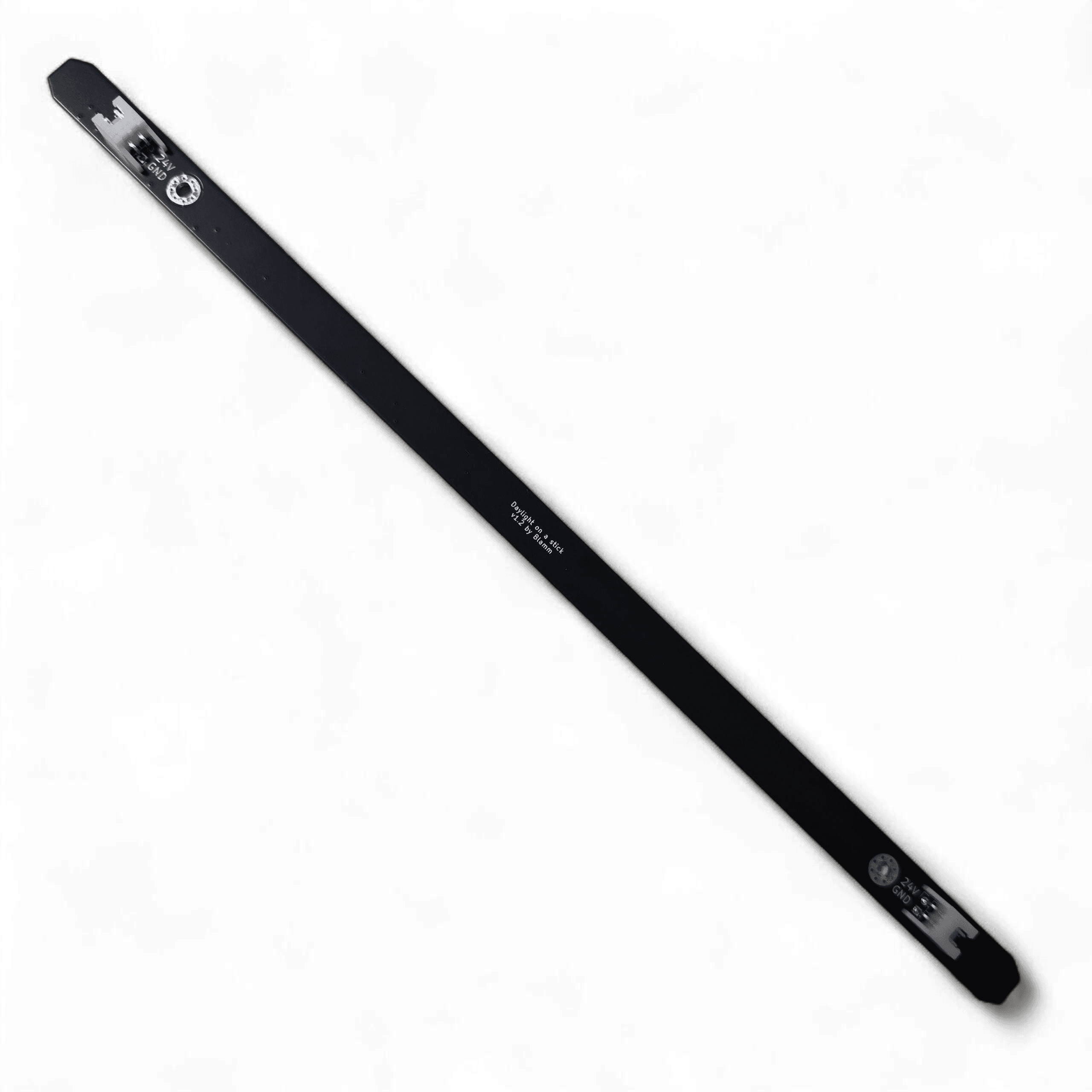

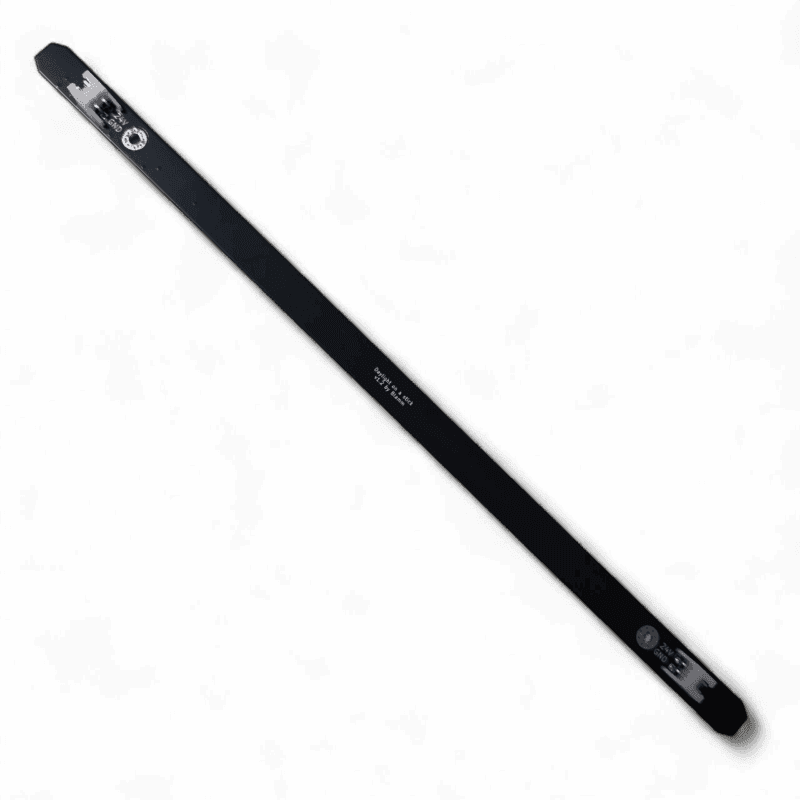

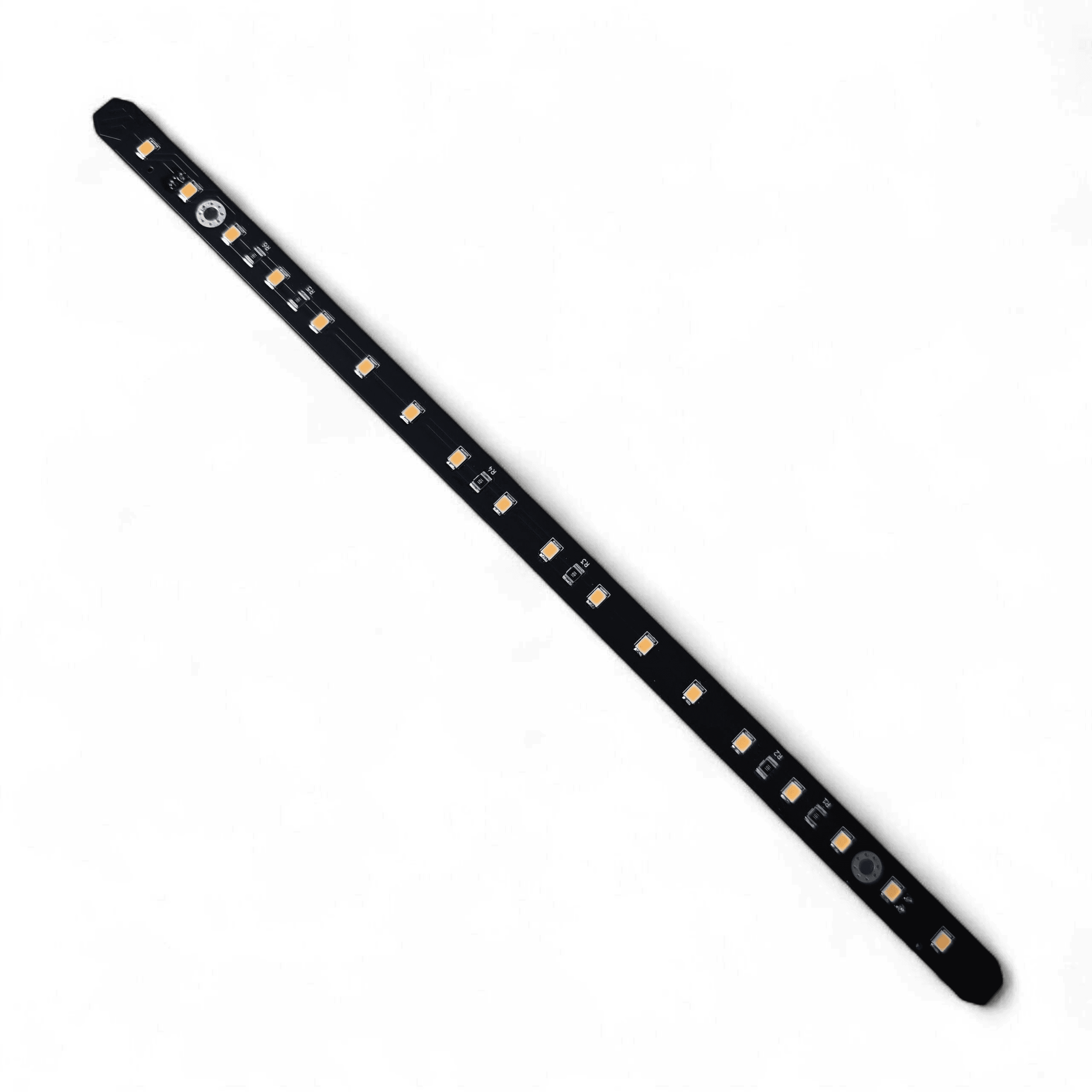

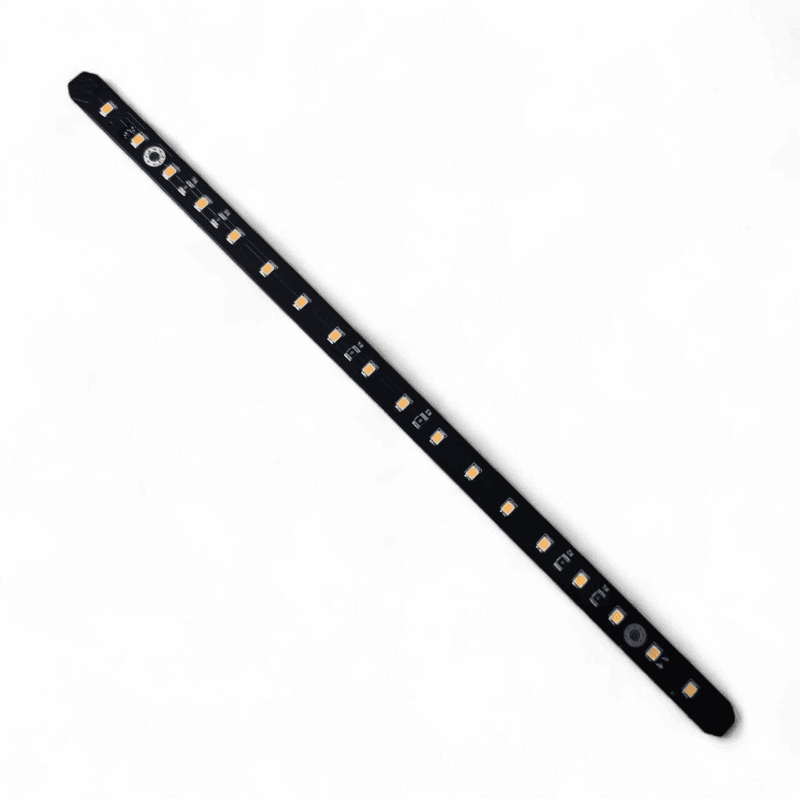

• Daylight on a Stick (18 natural-white LEDs, 270x11mm, for Voron sizes of 250mm and upwards)
• Daylight on a Stick XXL (30 natural-white LEDs, 370x11mm, for Voron 350 or bigger printers)

This article is for a single stick, you typically need two per printer.

Installation & config:

The brackets for 2020 profiles are mounted to the profile using an M3x6 or M3x8 SHCS screw together with a roll-in nut, and need an M3 heat insert to mount the strip onto the bracket itself.

On 1515 frames like the V0.x the brackets for 1515 profiles are used. They take an M3 heat insert and clip into the extrusion. Mount the pcb on them with an M3x6 BHCS screw.

Use the Daylight on a Stick/Matchstick directly on 24V or hook them up to a spare heater output on your controller board.

In Klipper, if you connected them to a heater output, you can control their brightness with this code:

[output_pin daylight]

pin: ##PIN## pwm: True cycle_time: 0.01

More info here
