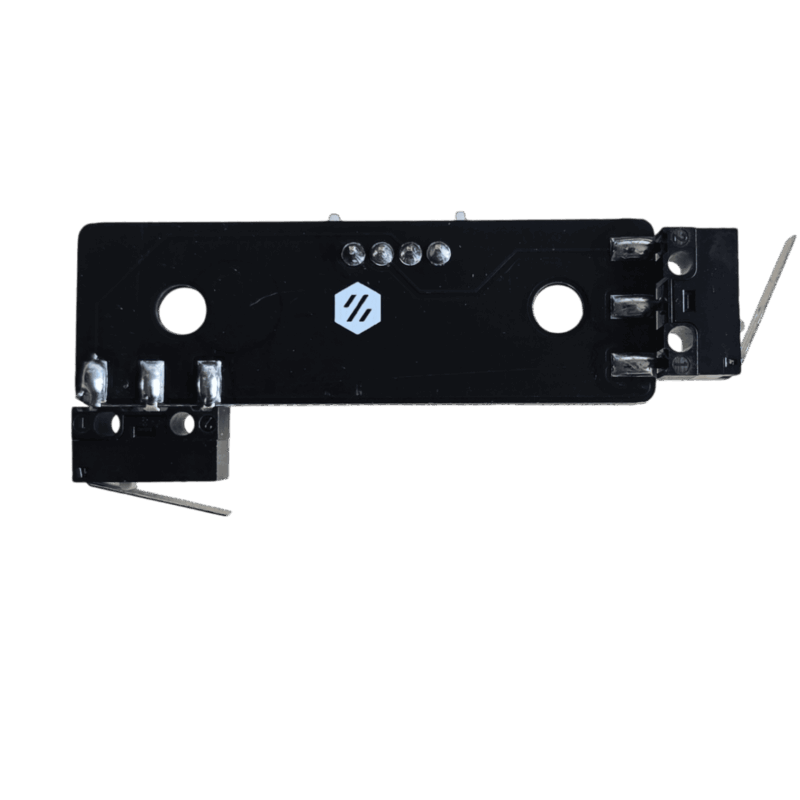

Voron Microswitch XY Endstop PCB

The Voron Microswitch XY Endstop PCB facilitates the wiring of the XY endswitches for your Voron printer. It comes with original Omron D2F-L end switches as specified in the Voron BOM.

It is based on the design by the VoronHardware team, as published here on GitHub.

You can order this product fully assembled, PCB and parts only or PCB only.

You will need to print a different POD for mounting this PCB. The stl can be found here.

The PCB comes fully assembled (or PCB and parts) with

  • 2x Omron D2F-L end switches
  • 1x 4pin header (JST 2.5 90deg shrouded)

Additional information

Weight0.006 kg
Dimensions5 × 2.5 × 2.5 cm
Variant

fully assembled, partially assembled, PCB only

Brand

VoronDesign
