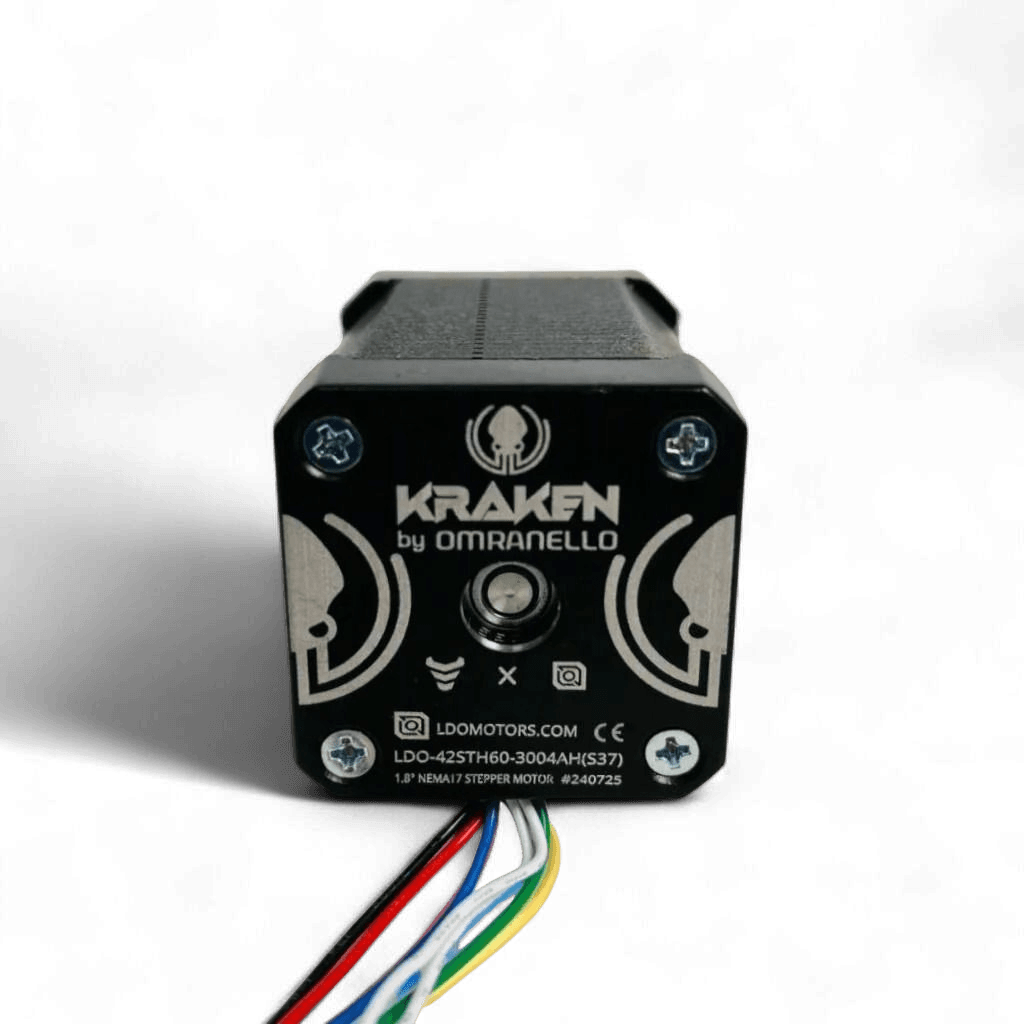

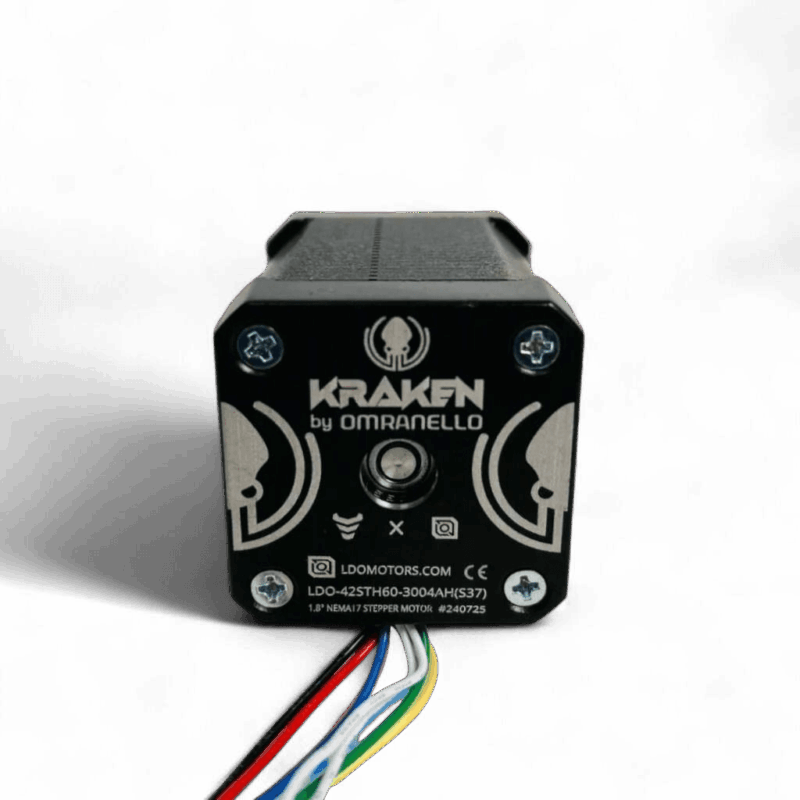

DevilDesign 4x Kraken LDO-42STH60-3004AH(S8-55) by Omranello

The DevilDesign Kraken LDO-42STH60-3004AH(S8-55) by Omranello is a high-performance NEMA 17 stepper motor engineered for demanding applications requiring exceptional torque and thermal stability. Designed specifically for 3D printing, CNC machines, and robotics, this motor integrates advanced features to optimize precision and durability.

This kit contains 4x LDO-42STH60-3004AH(S8-55)

Key Specifications:

• Step Angle: 1.8° (200 steps per revolution)
• Holding Torque: 8.0 kg/cm
• Current Rating: 3.0A
• Body Length: 60mm

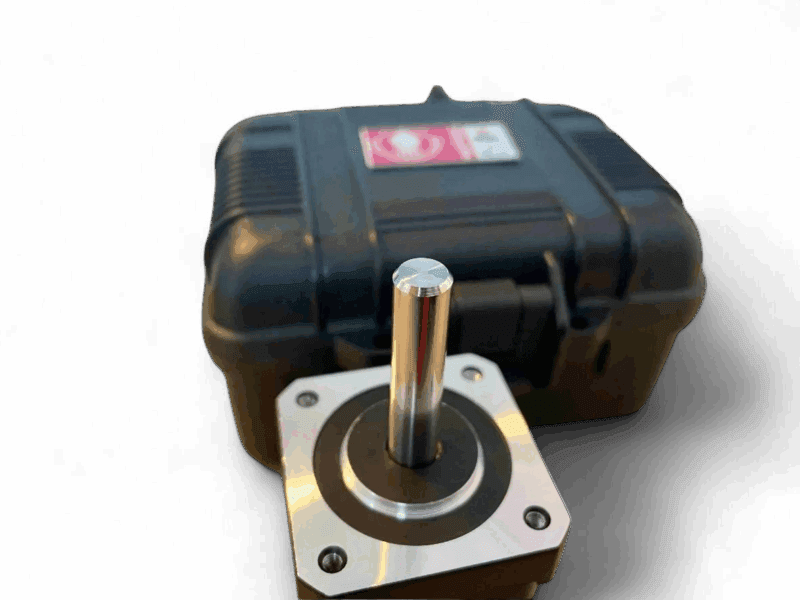

• Shaft Length: 55mm (8mm diameter, round shaft)*
• Integrated Thermistor: ATC Semitec 104GT-2 for real-time temperature monitoring
• Connector: 4-pin JST-XH with a 1-meter cable for motor and thermistor

Performance & Applications:

The Kraken motor is built for high-torque applications, ensuring smooth operation even under heavy loads. Its internal thermistor allows precise temperature tracking, preventing overheating and ensuring long-term reliability. The round shaft design enhances stability, making it ideal for frequent directional changes and high-precision builds.

This motor is a top choice for enthusiasts and professionals seeking robust motion control in high-performance 3D printing setups. Whether upgrading an existing system or designing a new machine, the DevilDesign Kraken LDO-42STH60-3004AH(S8-55) delivers unmatched reliability and efficiency

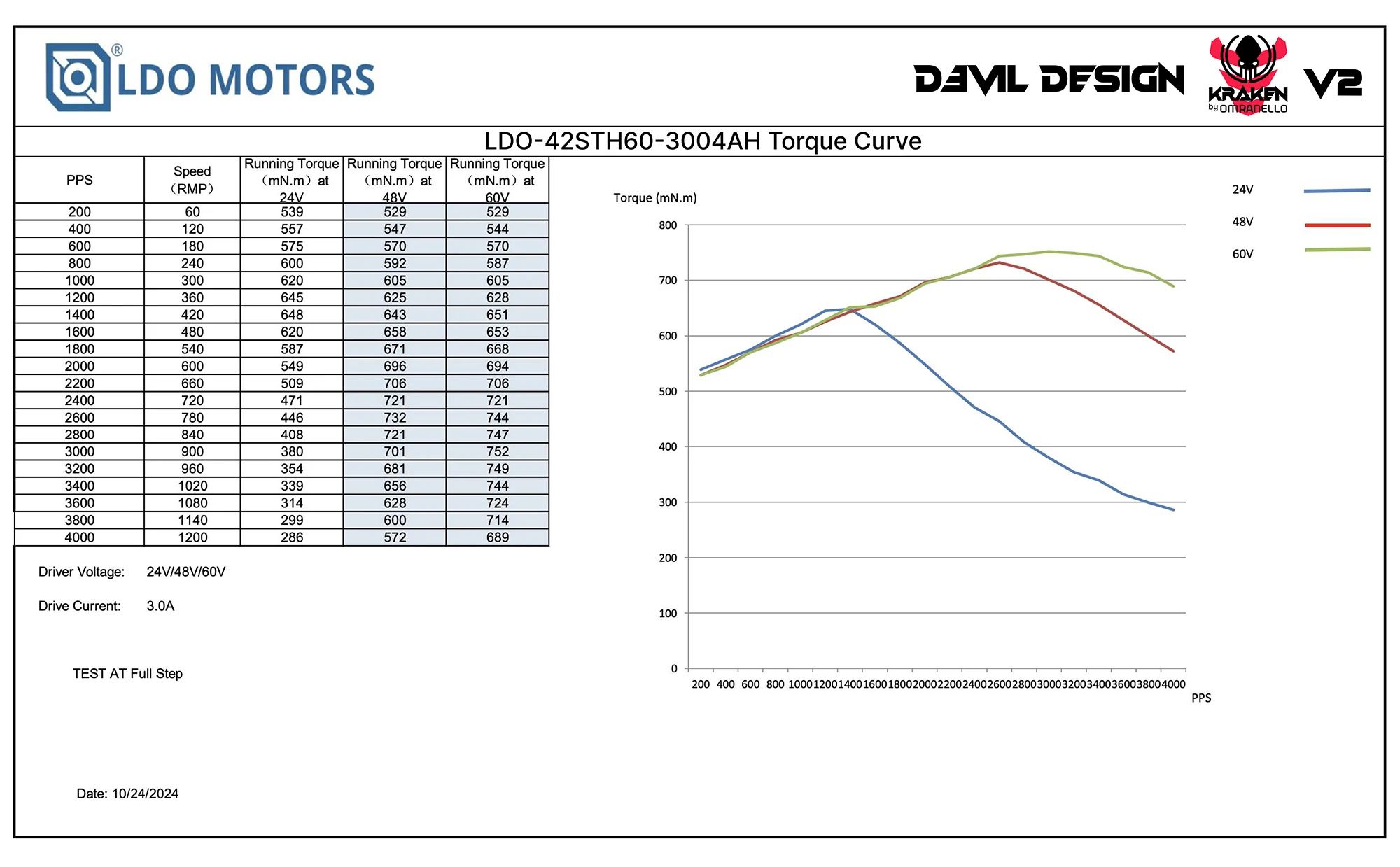

Datasheet LDO-42STH60-3004AH_S8-55

More information on GIT

*due to the long shaft length, use a top bearing when installing the stepper in combination with traction belts, to avoid damage to the stepper by lateral force to the shaft
