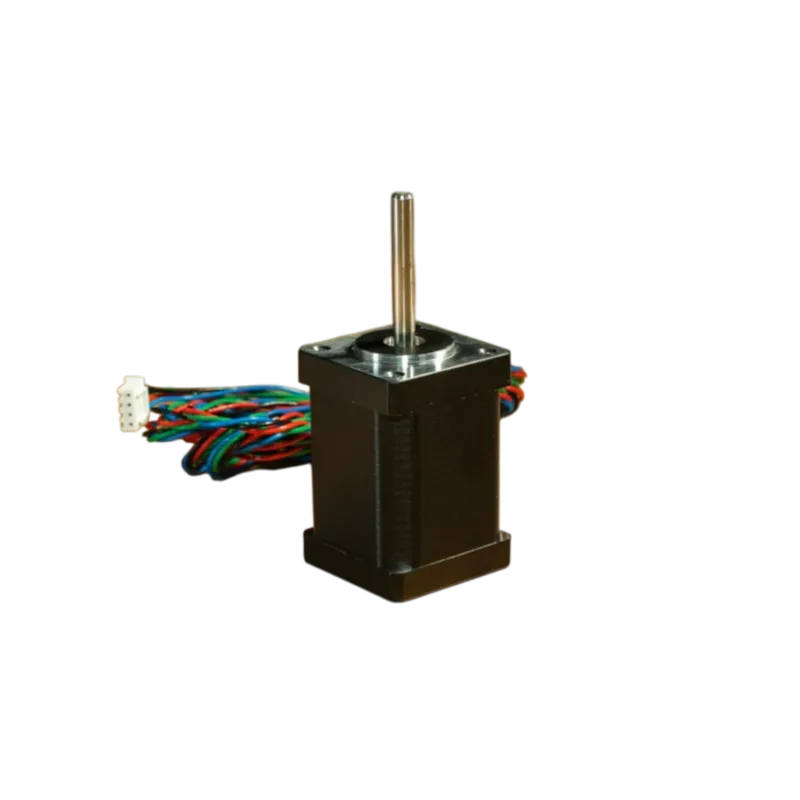

LDO 35STH52-2004AH(S35) Stepper Motor

US$28.18 (incl. VAT Germany)

Upgrade your 3D printer with the LDO 35STH52-2004AH(S35) stepper motor! This high-performance motor is designed to provide precise control and reliable operation for your 3D printing projects.

In stock

Add to Cart
LDO-35STH52-2004AH(S35)
LDO 35STH52-2004AH(S35) Stepper Motor
US$28.18 (incl. VAT Germany)
This item is selling fast!

LDO 35STH52-2004AH(S35) Stepper Motor

Upgrade your 3D printer with the LDO 35STH52-2004AH(S35) stepper motor! This high-performance motor is designed to provide precise control and reliable operation for your 3D printing projects.

Key Features:
  • High Holding Torque: Delivers a holding torque of ≥0.4 Nm, ensuring strong and consistent performance.
  • High Resolution: With a step angle of 1.8° ±5%, it offers precise movement control for detailed prints.
  • Temperature Resistance: Operates effectively within a temperature range of -20°C to 50°C.
  • Low Inertia: Features a rotor inertia of ≤40 g·cm², allowing for quick and responsive movements.
  • Compact Design: NEMA14 frame size with a 35mm shaft, making it suitable for various applications.
  • Durability: Built with high-quality materials for long-lasting performance and reliability.
Technical Specifications:
  • Rated Voltage: 2A/Phase
  • Resistance: ≤1.34 Ohms ±10%@20°C
  • Inductance: ≤2.1 mH
  • Shaft Length: 35mm
  • Weight: Approximately 0.28 kg

Enhance your 3D printer’s performance with the LDO 35STH52-2004AH(S35) stepper motor and enjoy precise, high-quality prints every time!

Additional information

Weight0.34 kg
Dimensions10.5 × 8.5 × 6.5 cm

Brand

LDO
