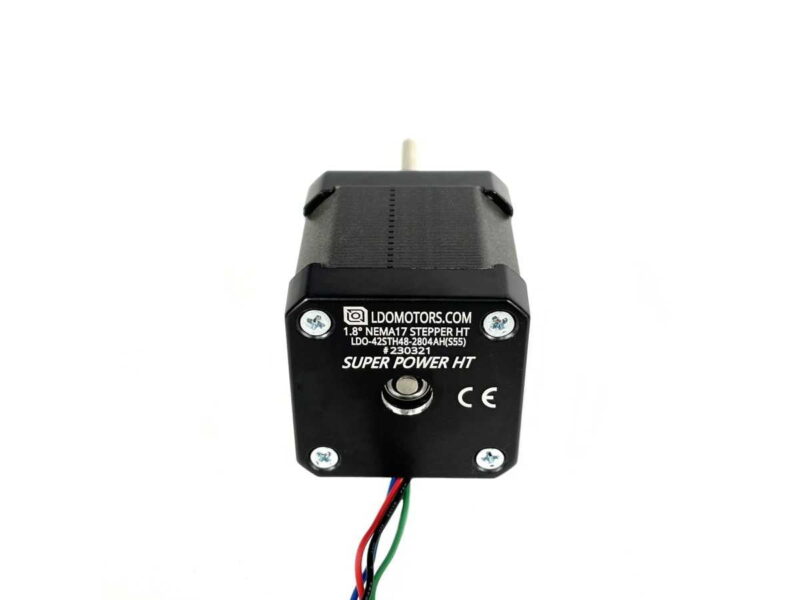

LDO-42STH48-2804AH (S55) Super Power Stepper Motor

The LDO 42STH48-2804AH (S55) Super Power Stepper Motor is a high-performance, high-torque NEMA 17 motor designed for demanding applications. This motor is part of LDO’s Super Power series, known for its superior efficiency and robust construction.

Key Features:

• High Torque Output: Delivers exceptional holding torque of 420mN-m, ensuring powerful and reliable performance.
• Precision: With a 1.8° step angle and 200 steps per revolution, it offers precise control for intricate tasks.
• High Current Rating: Rated at 2.8A, providing the necessary power for high-speed operations.

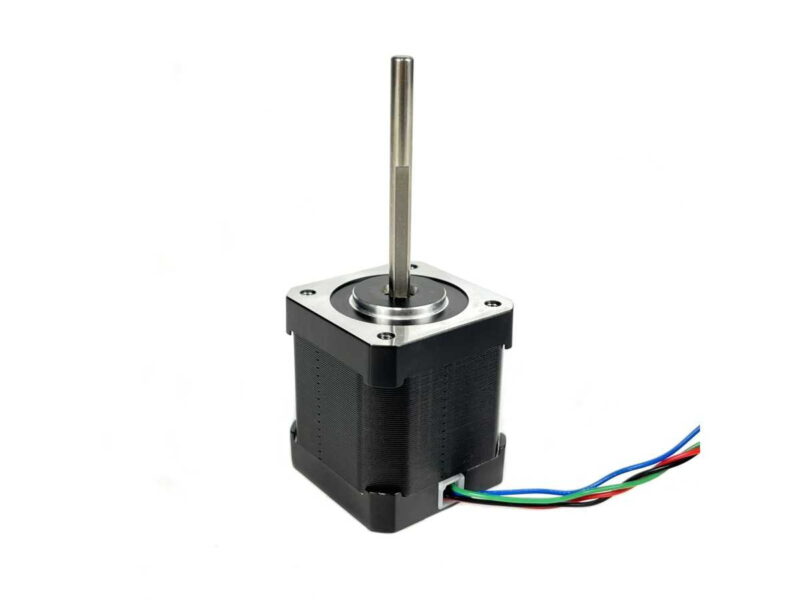

• Durable Construction: The motor features a 48mm body length and a 5mm diameter output shaft, with the S55 version offering a 55mm output shaft for added versatility.
• High Temperature Performance: Available in both standard and high-temperature (Class H) versions, capable of withstanding extreme conditions.

Applications: Ideal for use in 3D printers, CNC machines, robotics, and other applications requiring precise motion control and high torque.

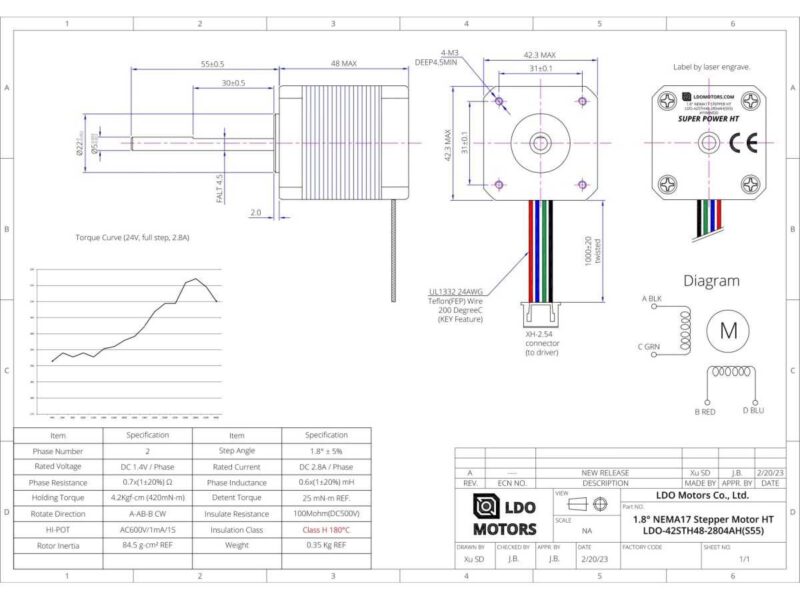

Technical Specifications:

• Step Angle: 1.8°
• Steps Per Revolution: 200
• Rated Current: 2.8A
• Holding Torque: 420mN-m
• Body Length: 48mm
• Output Shaft Diameter: 5mm (S55 version: 55mm length)

Additional Information: The motor comes with a 1-meter wire terminated with a 4-pin JST-XH connector, making it easy to integrate into various systems.

Experience the power and precision of the LDO 42STH48-2804AH (S55) Super Power Stepper Motor, designed to meet the highest standards of performance and reliability.
