Bondtech OEM IDGA Set

US$32.31

In stock

Add to Cart
Bondtech OEM IDGA Set
US$32.31
This item is selling fast!

Bondtech OEM IDGA Set

Reduce the runout of the main drive gear on your Dual Drive extruder with the Bondtech OEM IDGA Set .

A very solid, reliable and improved solution from Bondtech that provides a slight improvement to the print surface quality.

When adapting this piece of hardware into your design, make sure to allow for a bit of axial play in both directions, in order for the filament path to retain some level of self-correction.

The bearing facing the motor face should have about 0.4 mm of material between it and the motor face in order for the plastic gear to retain as much engagement as possible.

Please contact us if you have further questions regarding integrations.

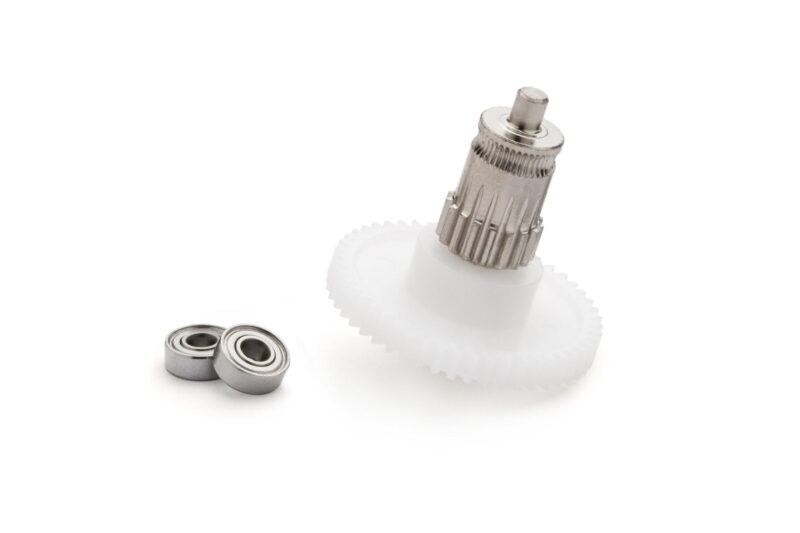

This main drive gear assembly set includes:
  • 1x 15168 OEM IDGA Integrated Drive Gear Assembly;
  • 2x MR85ZZ 5x8x2.5mm ball bearing.
The OEM IDGA is designed to allow for maximum compatibility with the following Open Source extruder:
  • Voron CW2 extruder.

It must be used with 5x8x2.5 mm ball bearings (INCLUDED).

This IDGA, Integrated Drive Gear Assembly, replaces the following mini drive train items:

  • Main shaft
  • Main gear
  • Set screw
  • Primary drive gear
Technical Specification
  • Shaft length: 27.8 +/-0.03mm
  • Shaft length to support ball bearings : Main Gear side < 2.60 +/-0,03mm – 2.60 +/-0,03mm > filament teeth side
  • Filament teeth’s center to end of shaft : Main Gear side < 22.2mm – 5.60 +/-0.04mm > filament teeth side
  • Number of drive gear teeth : 17
  • Drive gear teeth length : 4mm
  • Integrated drive gear Material: Hardened Steel
    Materials Compatibility:

    • Flexible : yes;
    • Rigid : yes;
    • Abrasive : yes.
  • Number of main gear teeth : 50
  • Main gear teeth length : 3mm

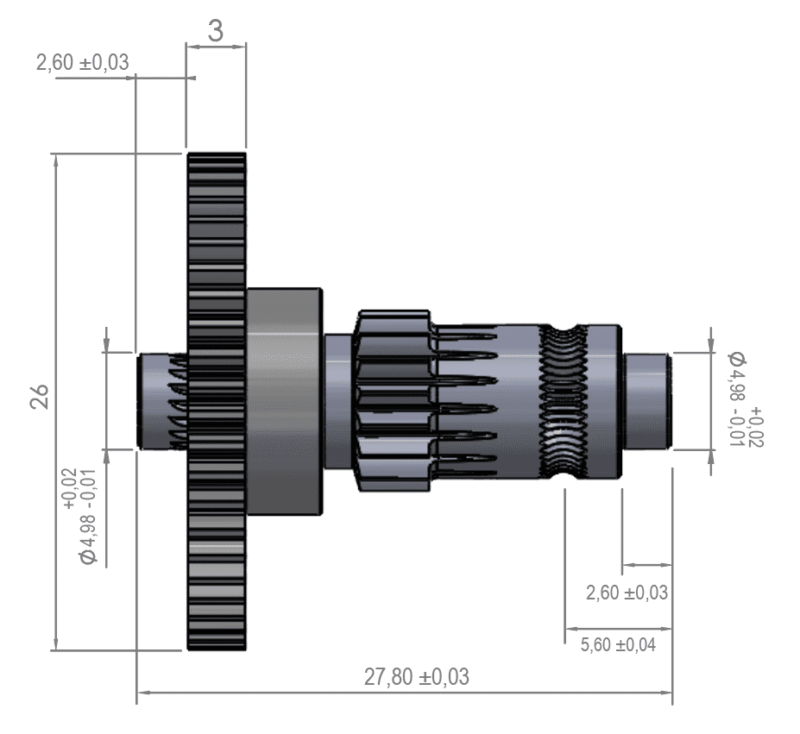

Technical Drawing:

Technical Drawing 15168_OEM_IDGA

Additional information

Weight0.02 kg
Dimensions5 × 5 × 4 cm

Brand

Bondtech
