Fysetc QHV5160 60V Stepstick

The QHv5160 is specially designed for high voltage drive requirements and can work in the voltage range of 8-60v, such as 48V.

It contains 100V X7R 0805 ceramic capacitors and is  based on the TMC5160-wa.

  • 1000 x 600mil / 25.4 x 15.24mm
  • 6 layer TG155 PCB
  • 8-60V 3.0A (rms) / 4.2A (peak)
  • 4x DMT6018 (17 mΩ)

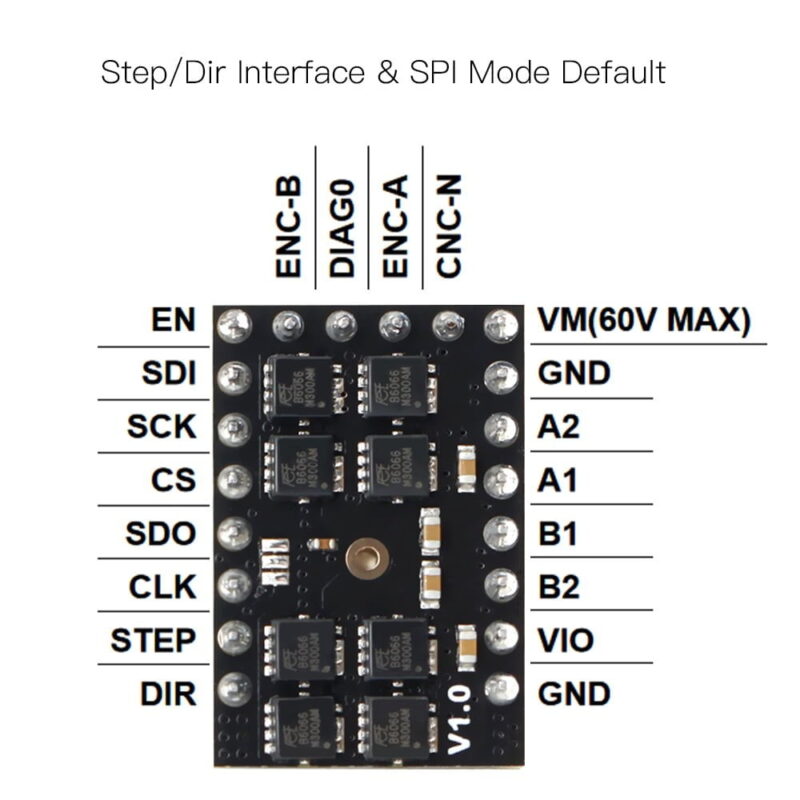

  • Step/Dir interface & SPI mode default

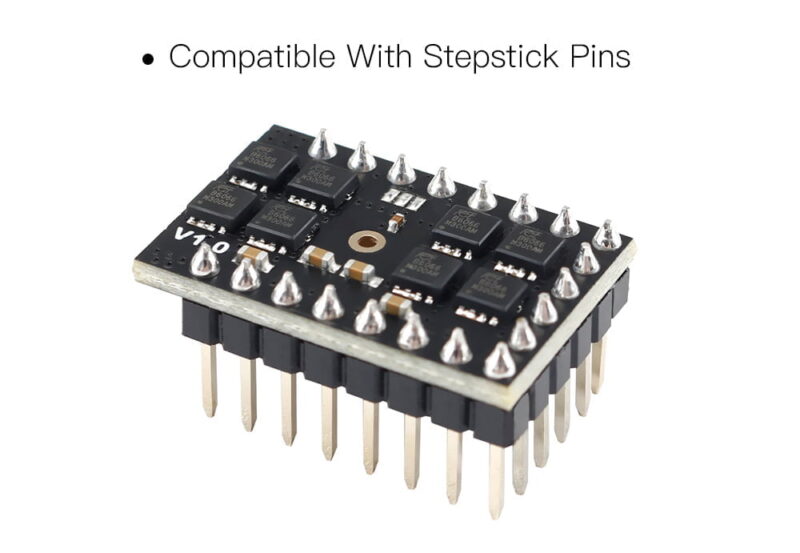

  • Compatible with Stepstick Pins

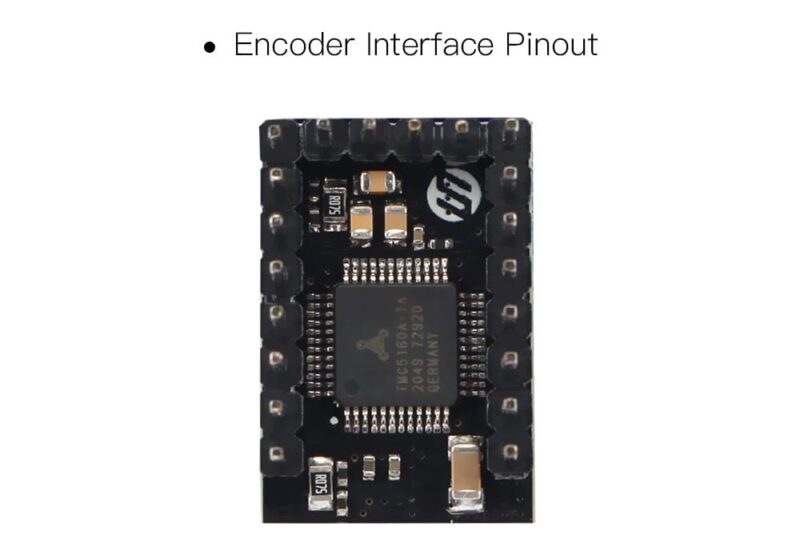

  • Encoder Interface pinout

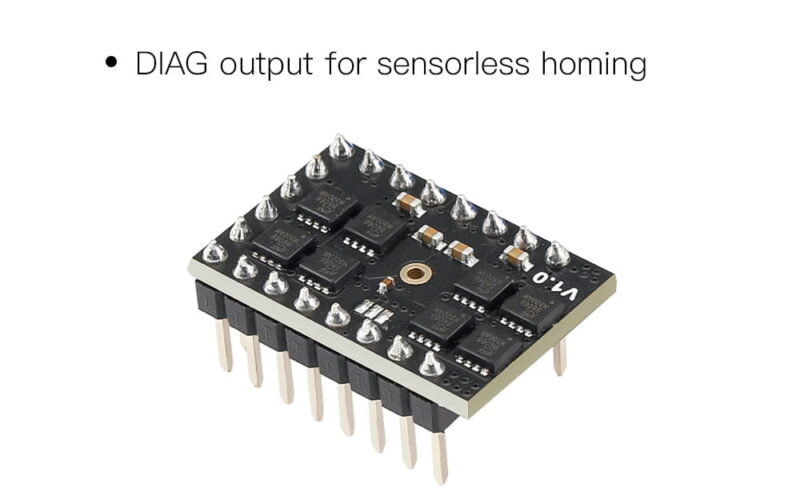

  • DIAG output for sensorless homing

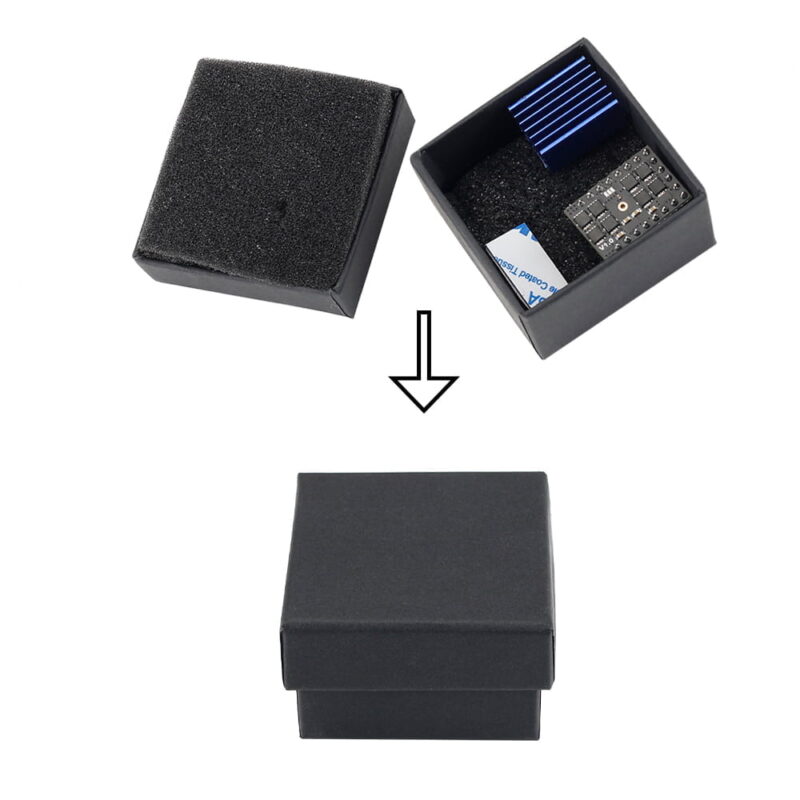

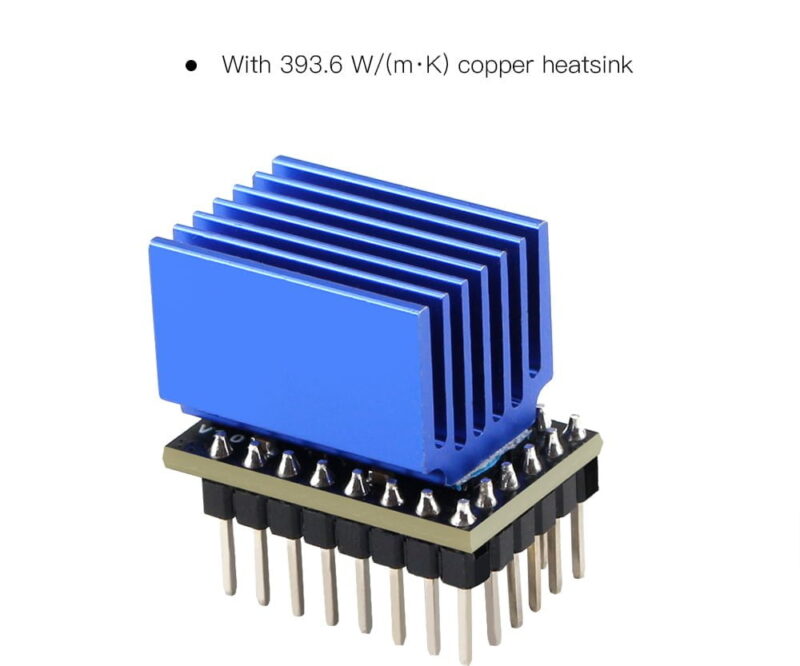

  • Comes with blue aluminium heat sink

Compatible with Fystec Spider and Octopus Pro controller boards.



Weight 0.02 kg
Dimensions 5 × 5 × 3 cm
