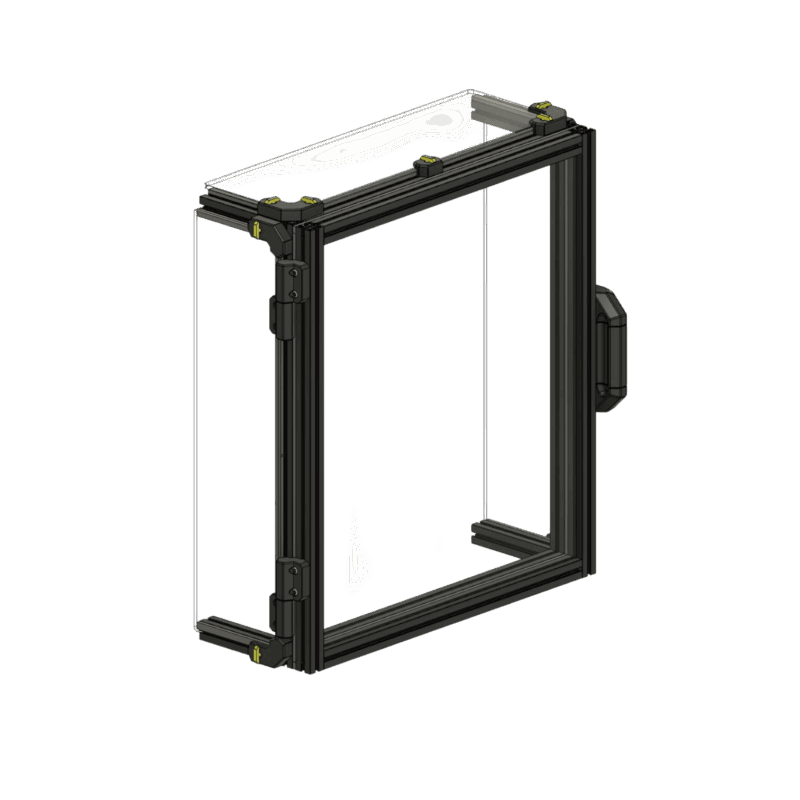

LDO Colony Clacker Kit for Micron+
Inspired by the popular Clicky-Clack Fridge Door mod by tanaes, Colony Clacker is specially designed for Printers for Ants (PFA) Micron+.
Completely re-modeled from scratch (not just scaled), it boasts enhanced stealthy aesthetics, improved tolerances, and optimized STLs for top quality printing using standard Voron settings.
Watch the satisfying Clack in action:

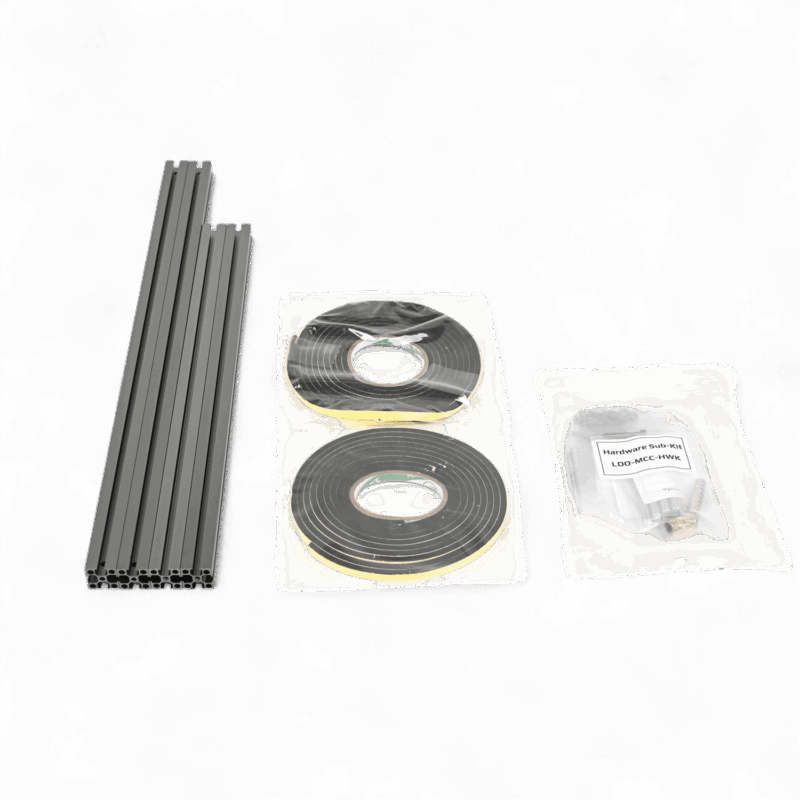

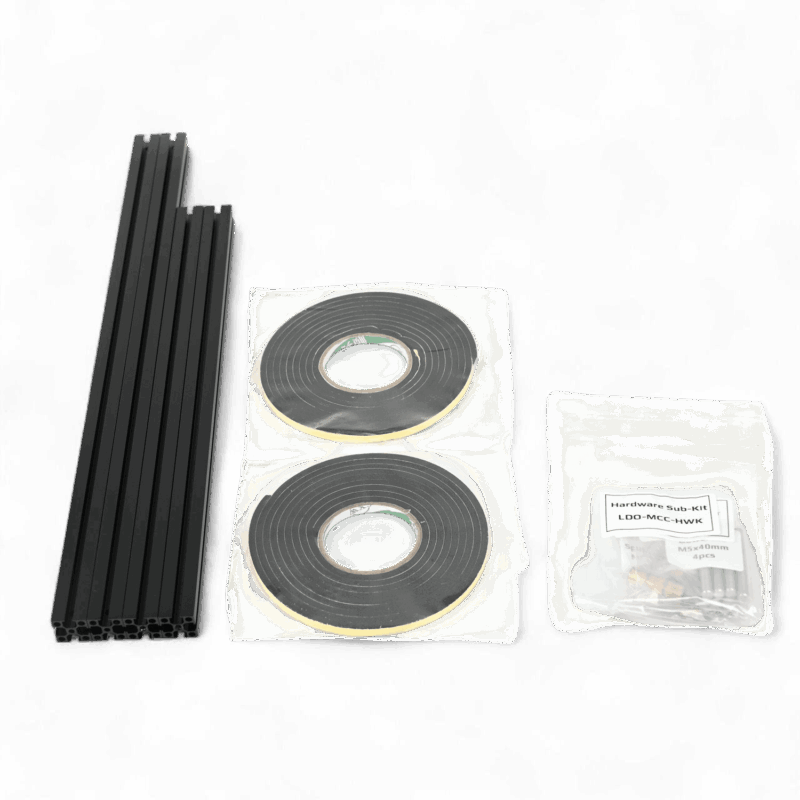

Bill of Materials
If you intend to use the optional extended skirts, additional hardware for these is needed, see the corresponding skirt sections on GIT.
🛠️ Hardware
| Qty | Item |
|---|---|
| 4 | M3x8 BHCS |
| 10 | M3x12 BHCS |
| 4 | M3x16 SHCS |
| 2 | M3x20 SHCS |
| 14 | M3 Hex Nut |
| 4 | M5 x 7mm x 8mm Split Bushing |
| 4 | 5mm x 40mm Dowel Pin |
| 8 | 6mm x 3mm N52 Magnet |
| 2M | 3mm Foam Tape |
| 4 | M3x5x4 Heatset Insert |
| 8 | M2 Self Tapping Screw M2x10 |
📐 Door Parts Micron+
| Qty | Item |
|---|---|
| 2 | 350mm 1515 Aluminium Extrusion |
| 2 | 280mm 1515 Aluminium Extrusion |
No panels and printed parts included!
