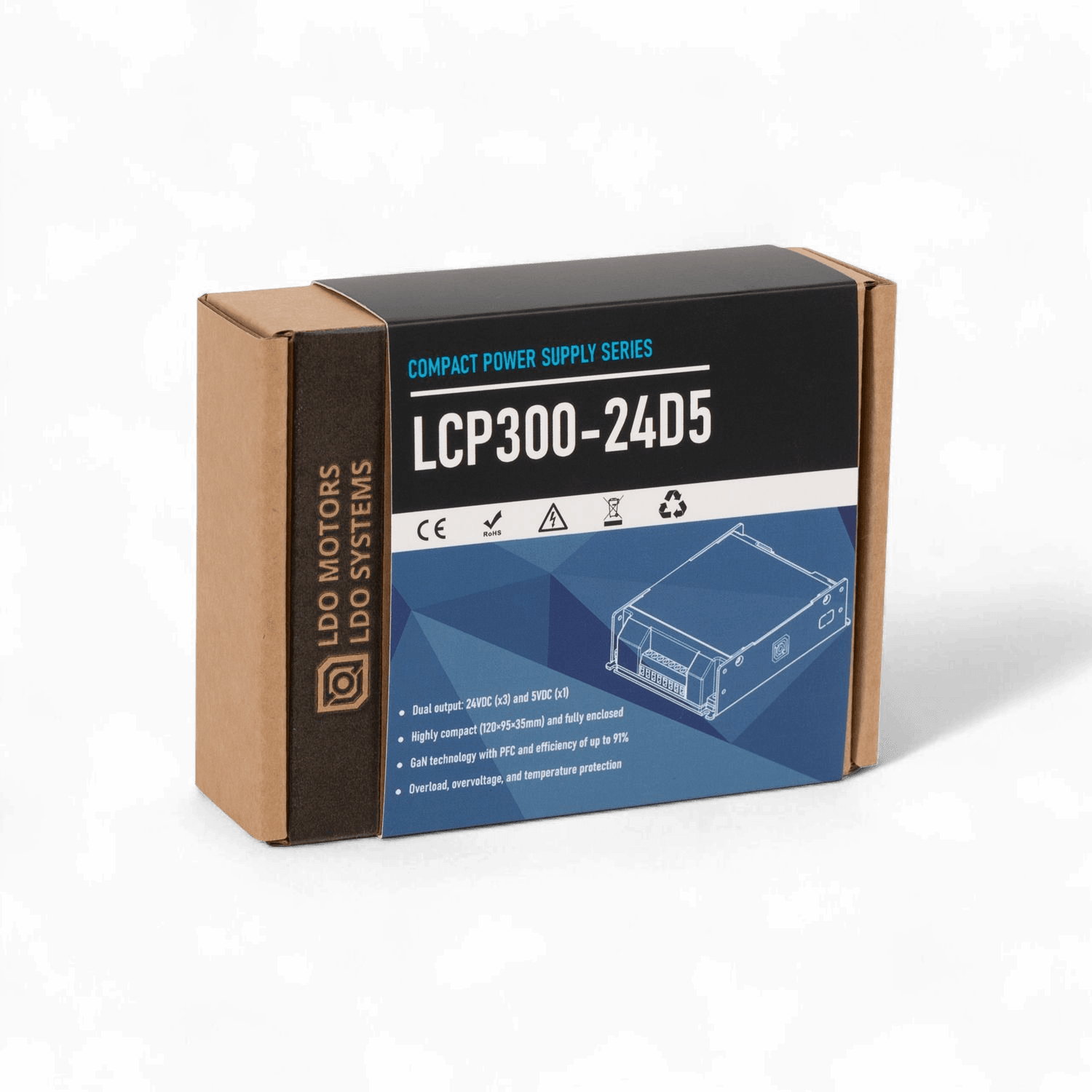

LDO Compact Power Supply (LCP300-24D5)

US$69.95

The LCP300-24D5 is a compact, fully enclosed 300W dual-output power supply for 3D printing applications.

In stock

Purchase & earn 52 points!
Add to Cart

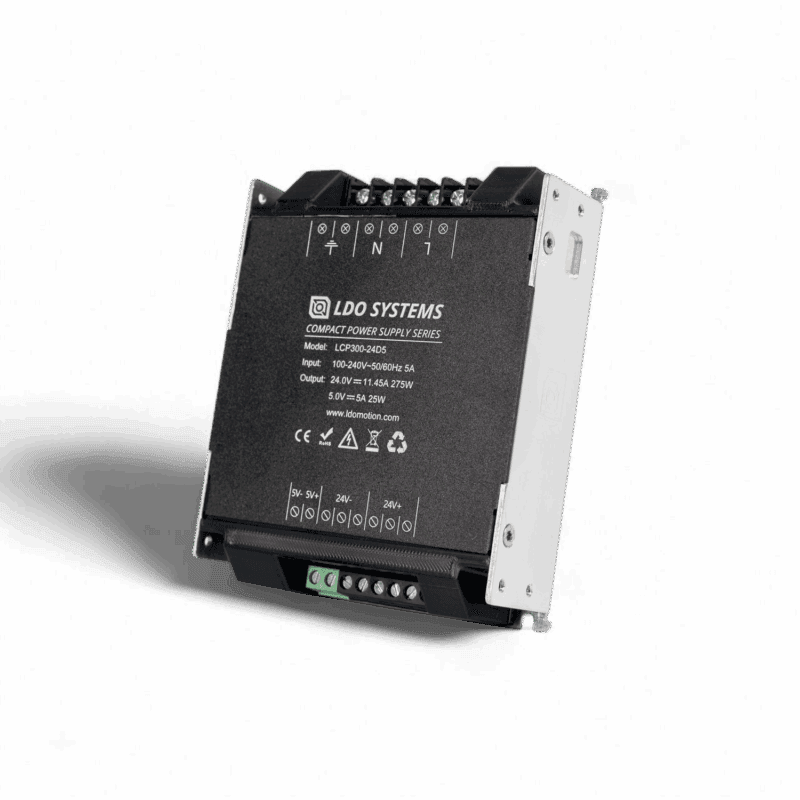

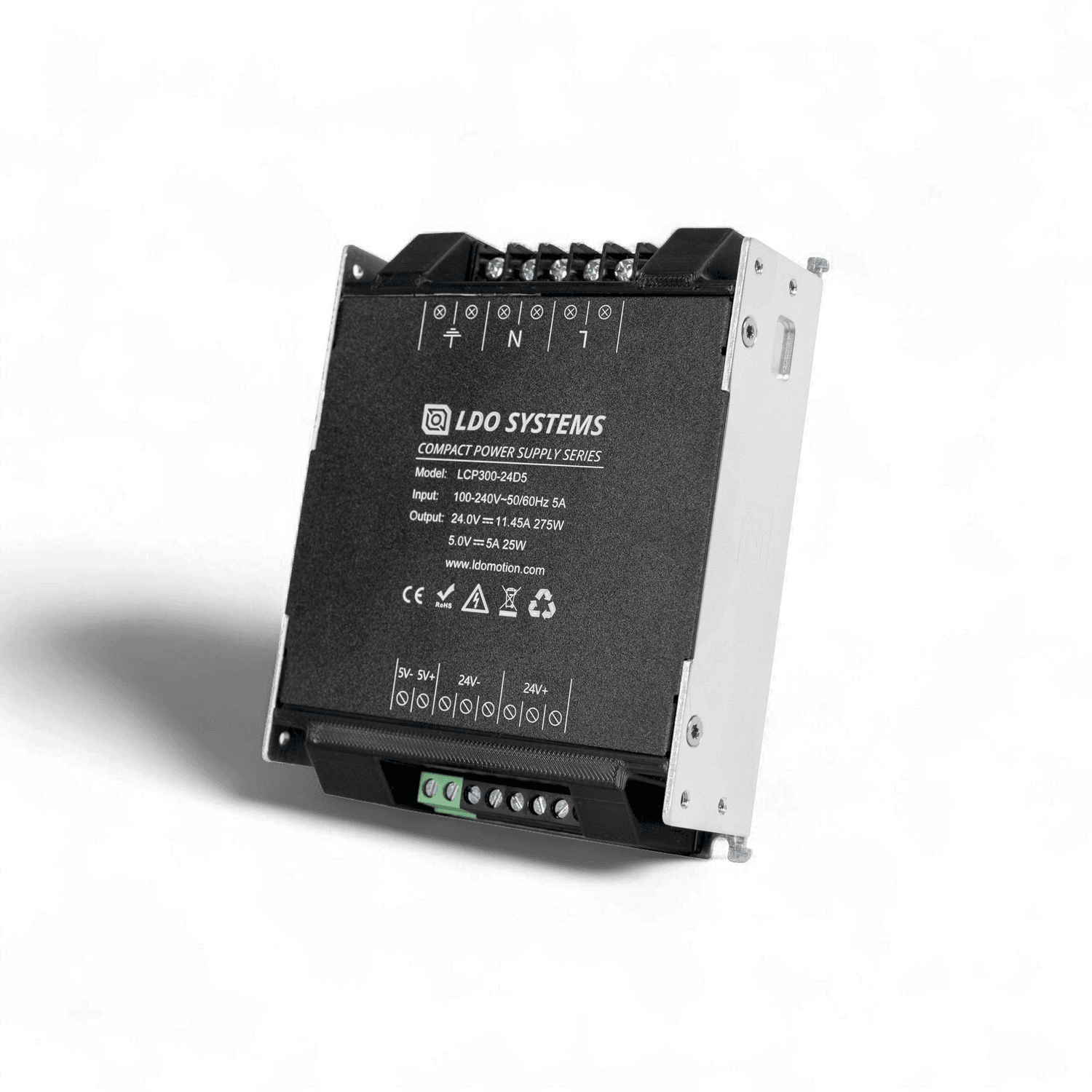

LCP300-24D5 03
LDO Compact Power Supply (LCP300-24D5)
US$69.95
This item is selling fast!

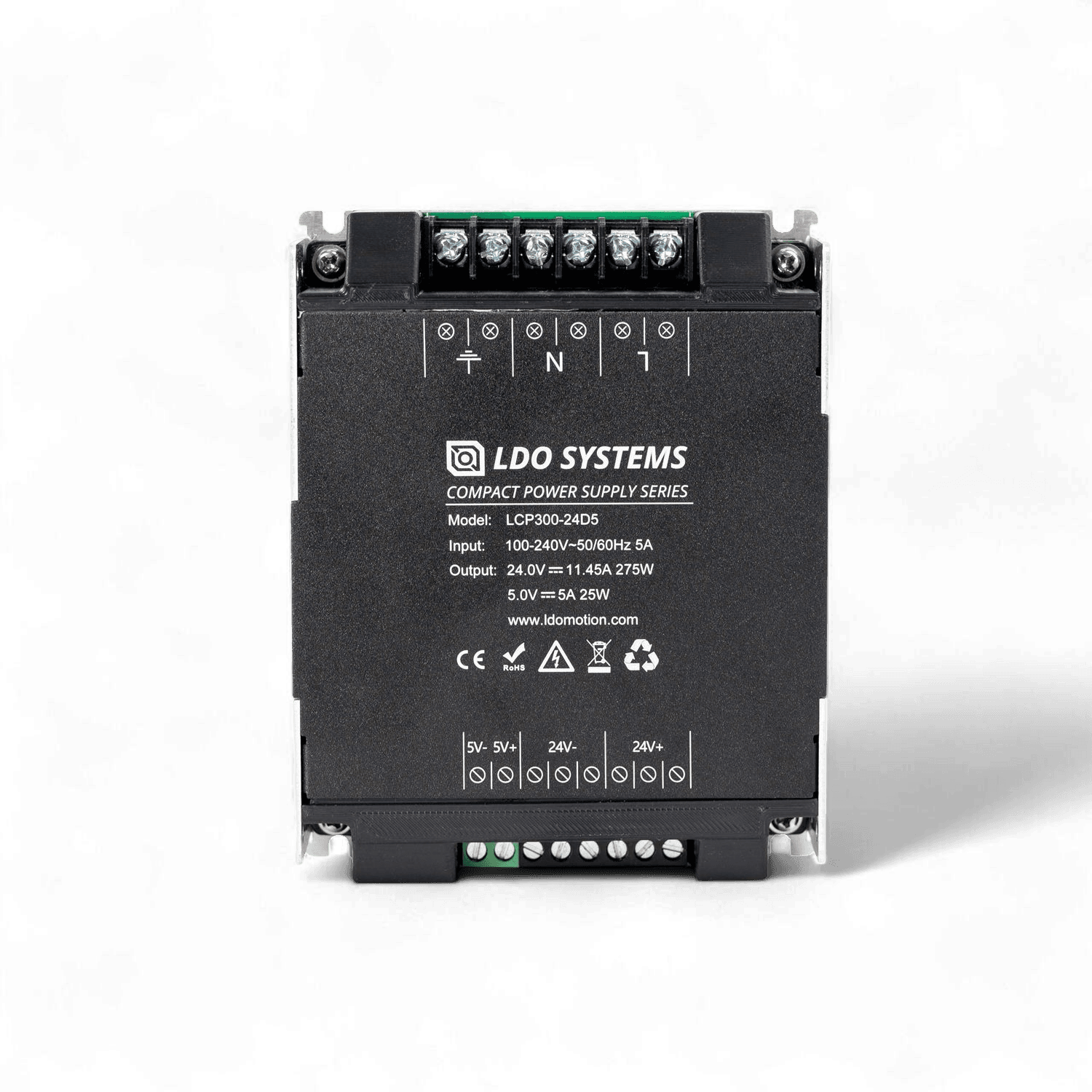

LDO Compact Power Supply (LCP300-24D5)

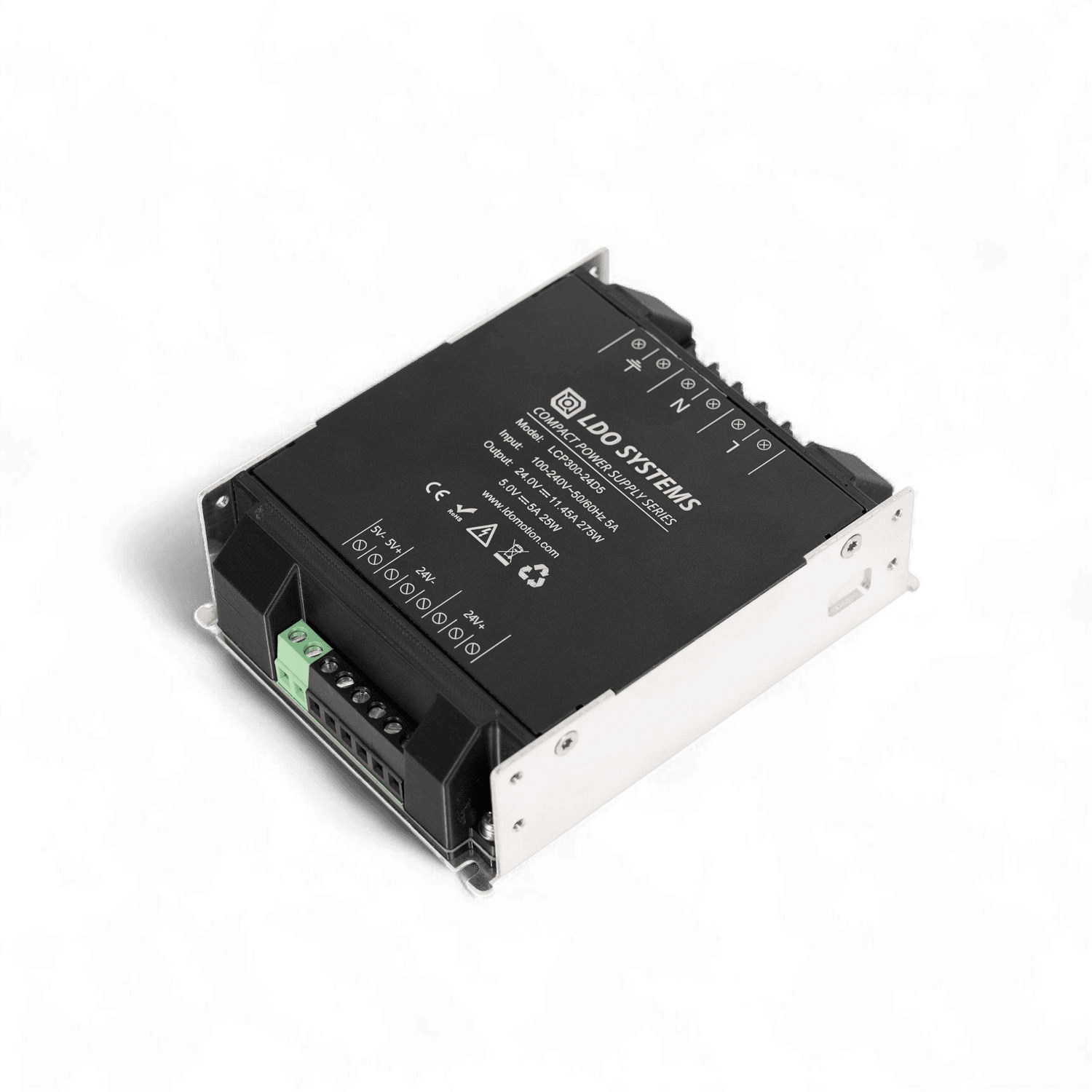

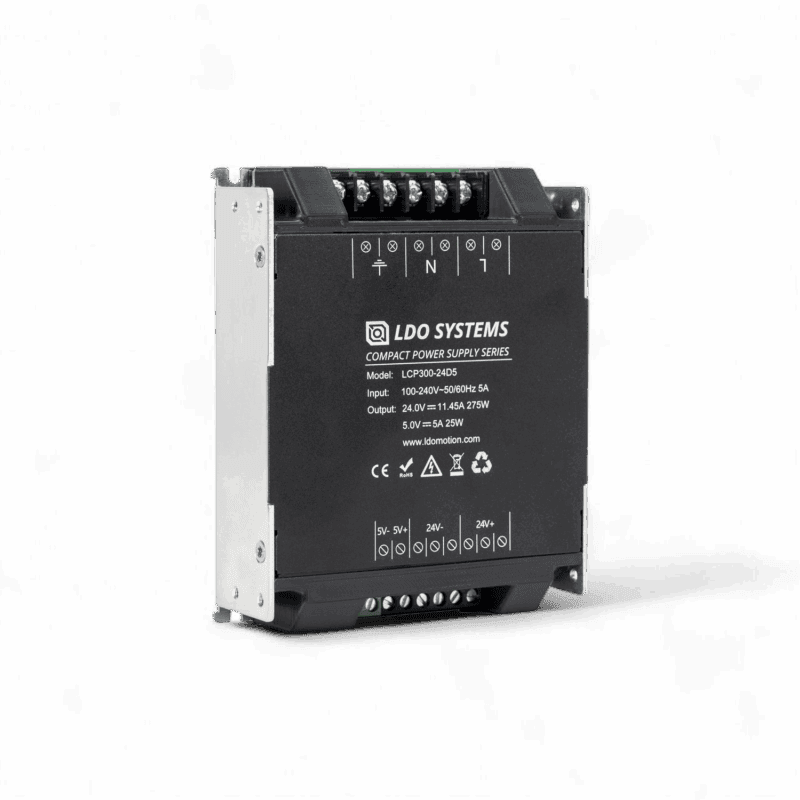

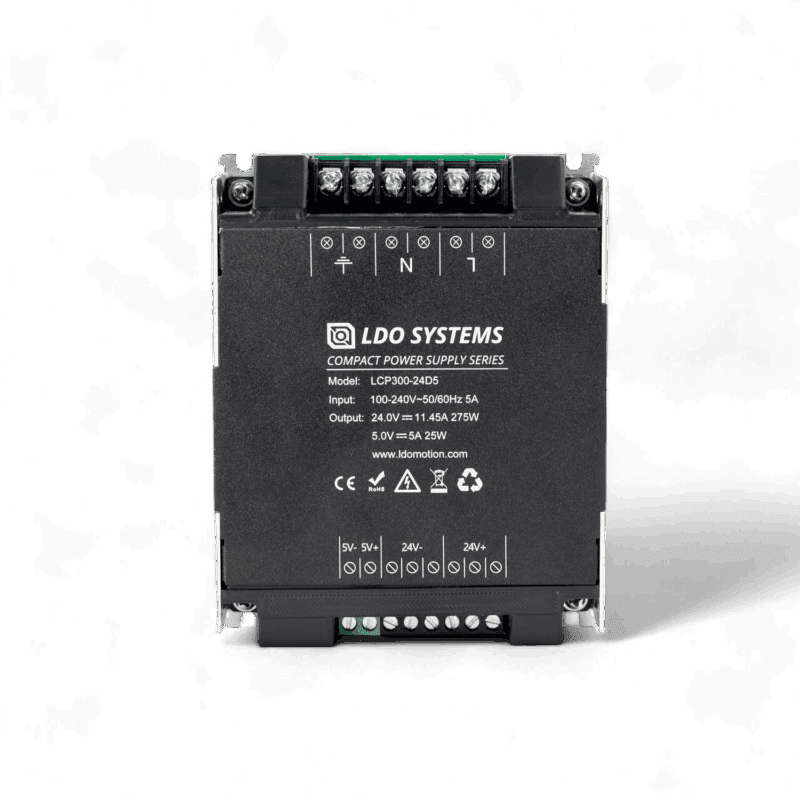

The LCP300-24D5 is a compact, fully enclosed 300W dual-output power supply for 3D printing applications. Featuring power factor correction and gallium nitride technology, the LCP300-24D5 provides 24V and 5V outputs with an efficiency of over 90%.

Features
  • Dual output voltage: 24VDC (x3) and 5VDC (x1)
  • Highly compact (120×95×35mm) and fully enclosed
  • GaN technology with PFC and efficiency of up to 91%
  • Overload, overvoltage, and temperature protection
  • Wide AC input range: 100-240VAC
  • Dual AC input terminals, supporting AC series connection
Electrical Specifications
ModelLCP300-24D5
OutputOutput Voltage5V24V
Max Current5A11.45A
Max Power25W275W
Ripple & Noise (Max)2150mVp-p360mVp-p
Line Regulation±1%±1%
Load Regulation±5%±2%
Start-up / Rise Time33000ms/115VAC，≤100ms/220VAC
Hold-up Time4≥8.3ms at full load
InputVoltage Range100 – 240VAC
Frequency Range50-60Hz
Efficiency≥91%
AC Current3.5A/115VAC 2A/230VAC
Inrush Current≤50A/220VAC cold start
Leakage Current≤0.75mA, 240VAC/50Hz
L/N Terminal Current512A Max
Protection FeaturesOverload Protection≥110% of rated output power
5.2-6A (5V), 13-17A (24V), output voltage shuts off; recovers automatically after fault removal
Overvoltage Protection≥135% of rated output voltage
Output voltage shuts off; recovers automatically after fault removal
Temperature ProtectionWhen enclosure surface temperature exceeds 110°C
Output voltage stops until temperature drops below 80°C
Environmental ConditionsOperating Temperature-20~40℃
Operating Humidity10~90%
Storage Temperature & Humidity-30~85℃/ 5~90%
Vibration10-500Hz, 2G, 10 minutes/cycle, 60 minutes in each X, Y, and Z direction
Safety & ComplianceSafety Standards
High Voltage Resistance2.5KVAC
Insulation Resistance≥100MΩ
EMC ImmunityCompliant with EN/IEC: EN55032, EN55035
Harmonic StandardsCompliant with IEC61000-3-2, IEC61000-3-3
LVDCompliant with EN IEC 62368-1
OthersDimensions120.0mm (L) * 95.0 mm (W) * 35.0 mm (H)
Packaging132x105x39mm
MTBF50000h (25℃)
Notes
  1. Unless otherwise specified, all specifications are measured under 230VAC input, rated load, and 25°C ambient temperature.
  2. Ripple and noise measurement: Measured at the end of the output cable, with a 0.1μF ceramic capacitor and a 47μF electrolytic capacitor.
  3. Start-up time: The time from when power is applied to the input until the output voltage rises to 90% of its rated value. Rise time: The time required for the power supply to reach its rated output value from a no-power state.
  4. Hold-up time: The duration from when the AC input is cut off to when the output drops below 5% of the standard value.
  5. L/N terminal current: Refers to AC voltage interface, where a single input is used to distribute one output. The maximum current the AC voltage interface can withstand is 12A.

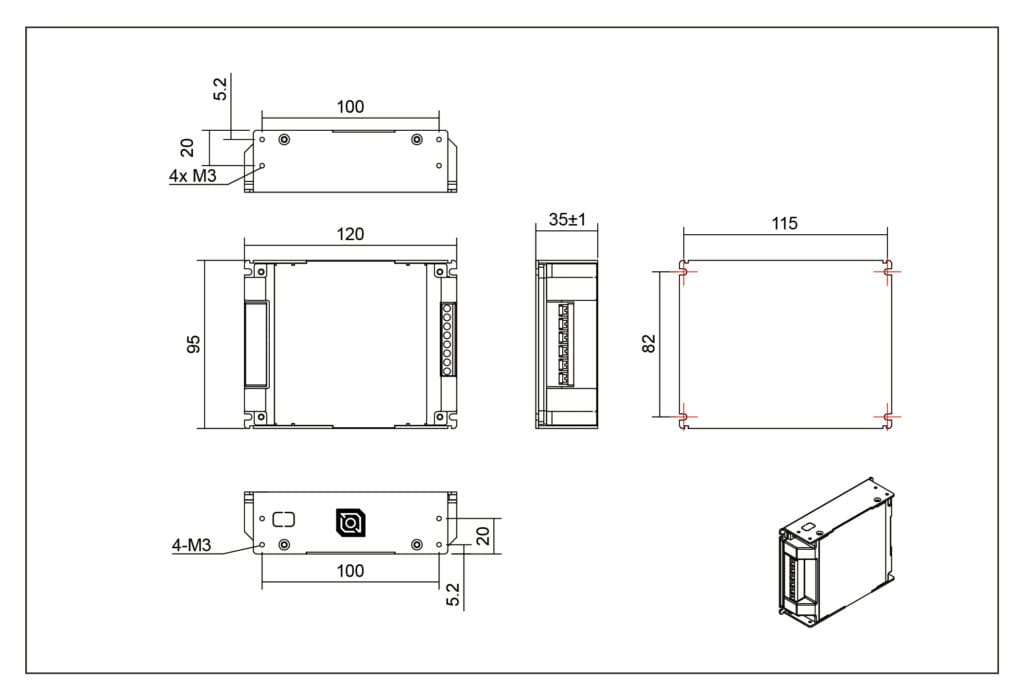

LCP300-24D5 Drawing
LCP300-24D5 Drawing







































More information here

Additional information

Weight1 kg
Dimensions14 × 11 × 4 cm
