Linneo DIY Voron Wiring Kit

US$94.95

The Linneo DIY Voron Wiring Kit contains everything you need (based on the Vorondesign BOM) to build your own Voron wiring harness.

Linneo DIY Voron Wiring Kit

The Linneo DIY Voron Wiring Kit contains everything you need (based on the Vorondesign BOM) to build your own Voron wiring harness. If you like crimping, but not shopping around the internet for wires, connectors, crimps, etc. that’s the kit you need. It contains all parts of the BOM for the Voron 2.4r2 and Voron Trident. Of course we are also offering our fully made up wiring harnesses for your Voron, if you prefer to get the “ready-to-go” solution.

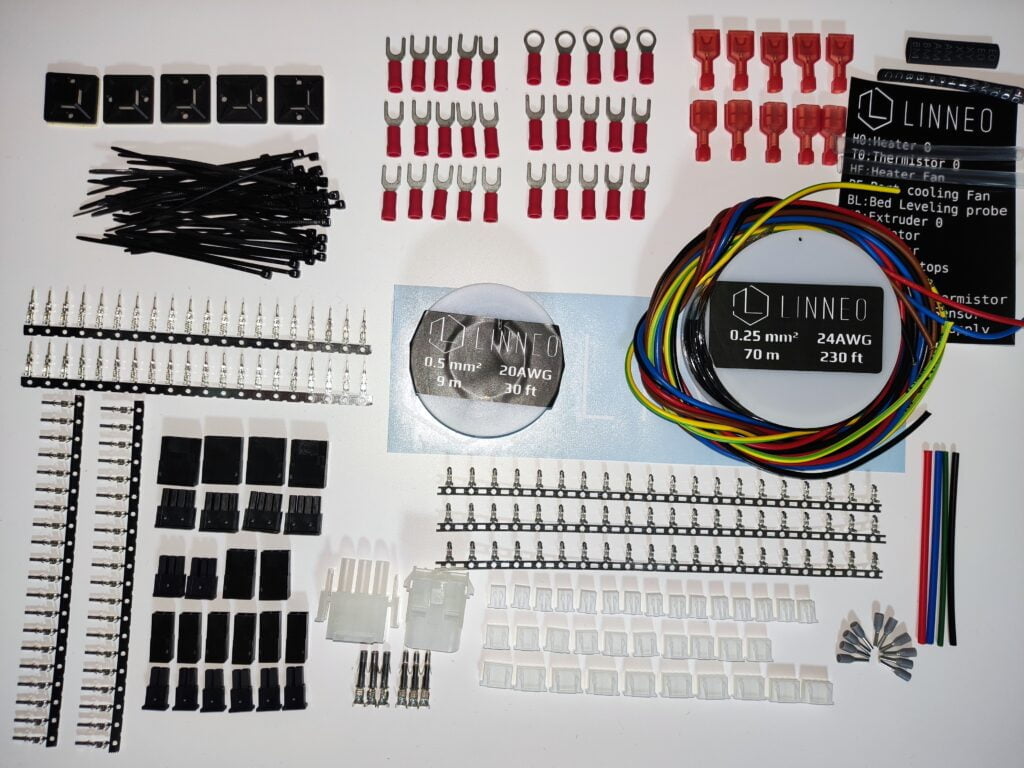

Content of the kit:

Name  Brand (Part Number)Qty
24AWG 0,25 Linneoflon (meters)70
20AWG 0,5 Linneoflon (meters)9
18AWG 0,75 PVC wire 5×1.25 meters1
Insulated Crimp Receptical   TE Connectivity(2-520184-2)10
M5 Ring Terminal5
Spade Crimp Terminal25
0.75mm Ferrules10
JST XH Connector Plug 4 Position JST(XHP-4)10
JST XH Connector Plug 3 Position JST(XHP-3)10
JST XH Connector Plug 2 Position JST(XHP-2)15
JST XH Pin JST(SXH-001T-P0.6N)60
MicroFit3 Connector Receptacle 4 Position Molex(436400401)4
MicroFit3 Connector Receptacle 3 Position Molex(436400301)3
MicroFit3 Connector Receptacle 2 Position Molex(436400201)5
MicroFit3 Connector Plug 4 Position Molex(43645400)4
MicroFit3 Connector Plug 3 Position Molex(436450300)3
MicroFit3 Connector Plug 2 Position Molex(436450200)5
MicroFit3 Connector Plug 2 Position Vertical Molex(430250200)1
MicroFit3 Connector Pug 14 Position Molex(430251400)1
MicroFit3 Female Pin Molex(430300001)60
MicroFit3 Male Pin Molex(430310001)60
Wago 2 slots Wago(221-412)6
Wago 5 slots Wago(221-415)3
Nylon Cable Ties for Voron50
Cable Tie Bases with glue5
RGBCW LEDs for Stealthburner (SK6812)3
Linneo Heat Shrink tubes and labels pack1
Linneo Pin Tool1

Additional information

Weight0.65 kg
Dimensions23.5 × 17 × 3.5 cm
Color

Black, Red

Brand

Linneo
