LDO Voron 2.4/Trident Bed Assembly (Bed, Heater, PEI Sheet)

Cast 5083 aluminium tool plates 9.5mm thick, which are ground flat and cut, drilled, and tapped according to the BOM for Voron V2.4 and Trident.

A thermistor (not included) can also be placed in an M3 threaded hole at the bottom, in the middle.

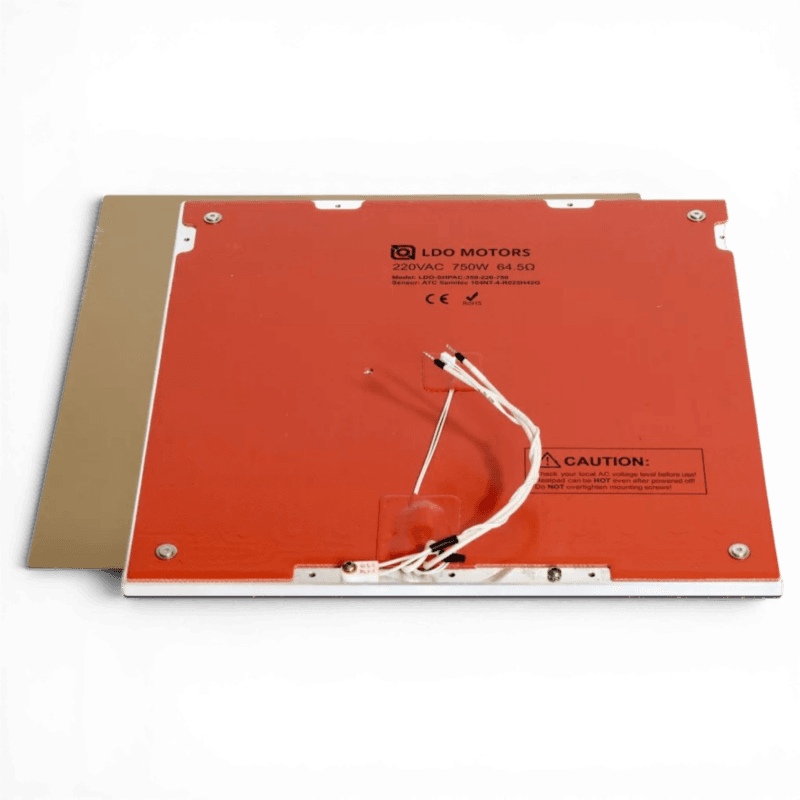

These are the bed assemblies featured in LDO Voron Kits. This completely assembled version includes a pre-applied and fastened heater 230VAC (600w for 300, 750w for the 350) and comes with magnetic sheet and PEI steel-flex plate.

Package content:

• Cast flat aluminium bed with a heater (600W/750W) and fuse installed
• Magnetic sheet (It is glued on, with holes punched through it for V2.4.)

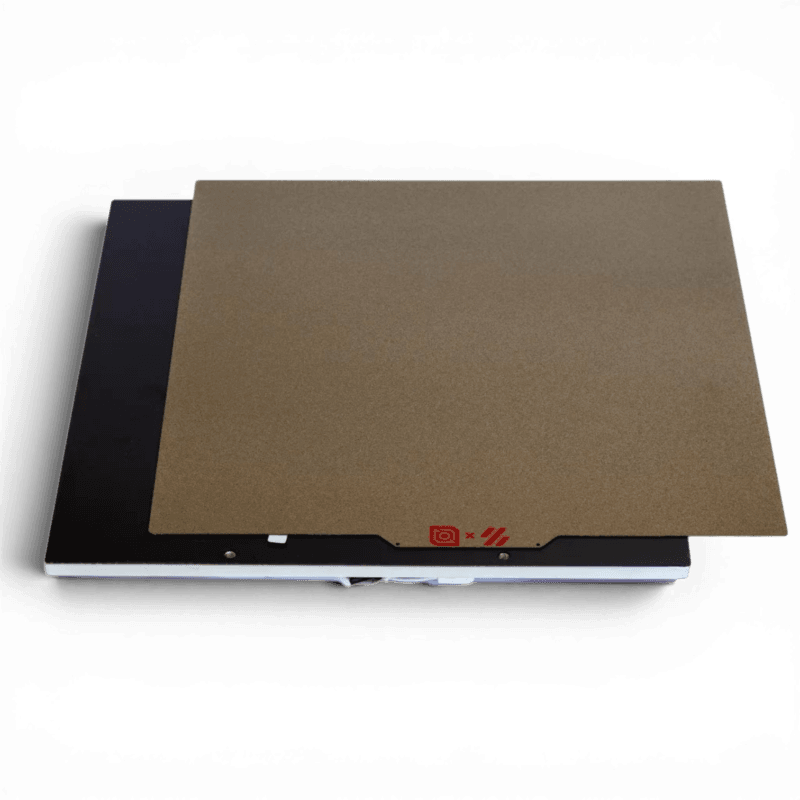

• PEI spring steel sheet (One side is textured, the other side is smooth)

Sizes:

• 255x255mm
• 305x305mm
• 355x355mm

This is the best value for a pre-made easy to install setup.
