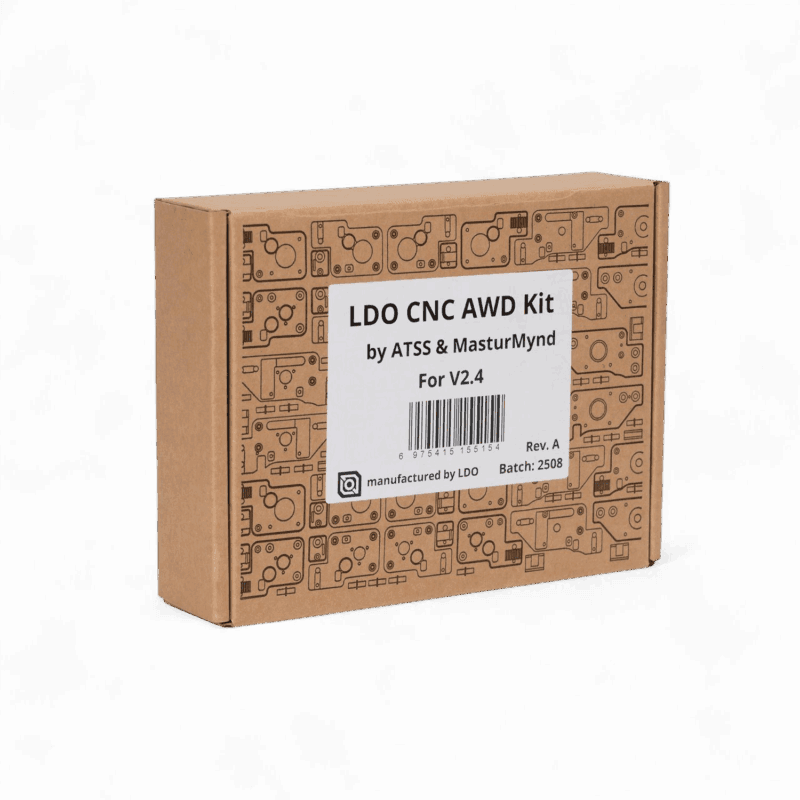

LDO Voron AWD (All-Wheel-Drive) Upgrade Kit

Compatible with Voron 2.4 & Trident

Take your Voron build to the next level with the LDO AWD (All-Wheel Drive) Upgrade Kit, engineered for precision, speed, and mechanical symmetry. Whether you’re running a Voron 2.4 or Trident, this CNC-grade AWD mod delivers enhanced motion control and torque distribution across all axes. All of this makes the kit ideal for high-speed printing and demanding mechanical setups.

Key Features

• Metal – Improved heat dissipation of stepper motors at higher current
• Shorter effective belt length between toolhead and drive gear – Improves max acceleration, input shaper results and accuracy during direction change.

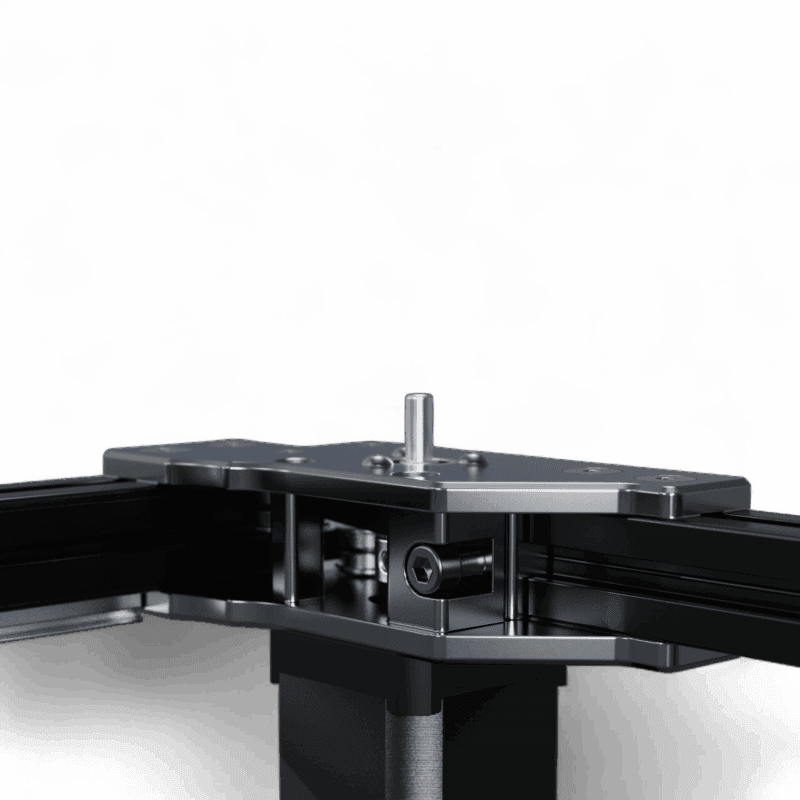

• Double shear shaft support – Allows for increased tension without deflecting the drive shaft
• Backwards compatible – Toolheads or XY joints designed for the Voron Trident or Voron V2.4 will work! Keep in mind that different toolhead geometries may result in loss of travel near the front motor mounts.
• (Voron V2.4 only) Live shaft idlers – Like toothed idlers but utilizing more robust bearings for longevity
• Compatibility: Designed for Voron 2.4 and Voron Trident (Rev. D)

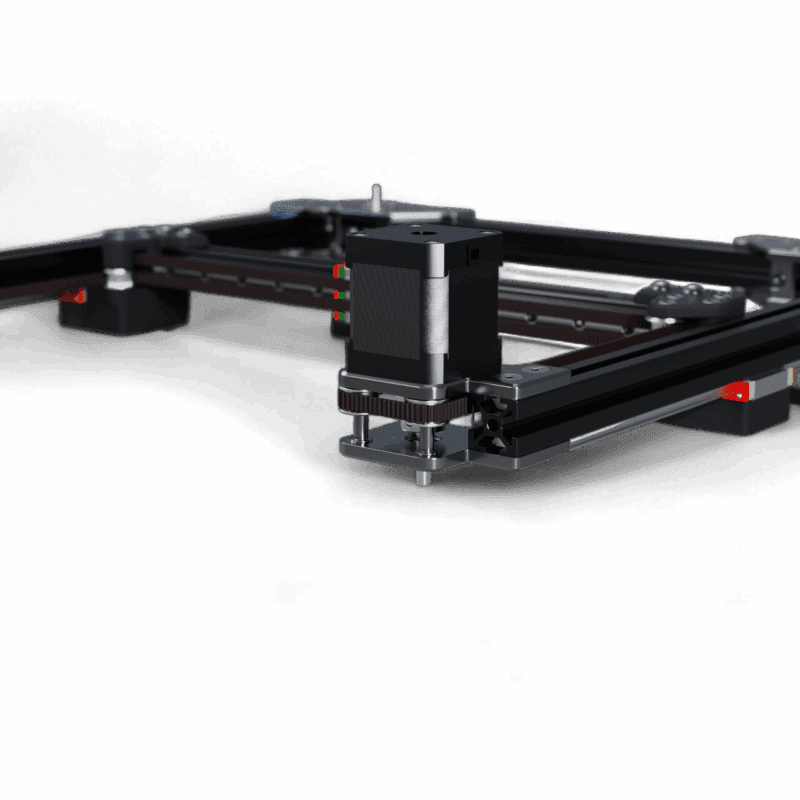

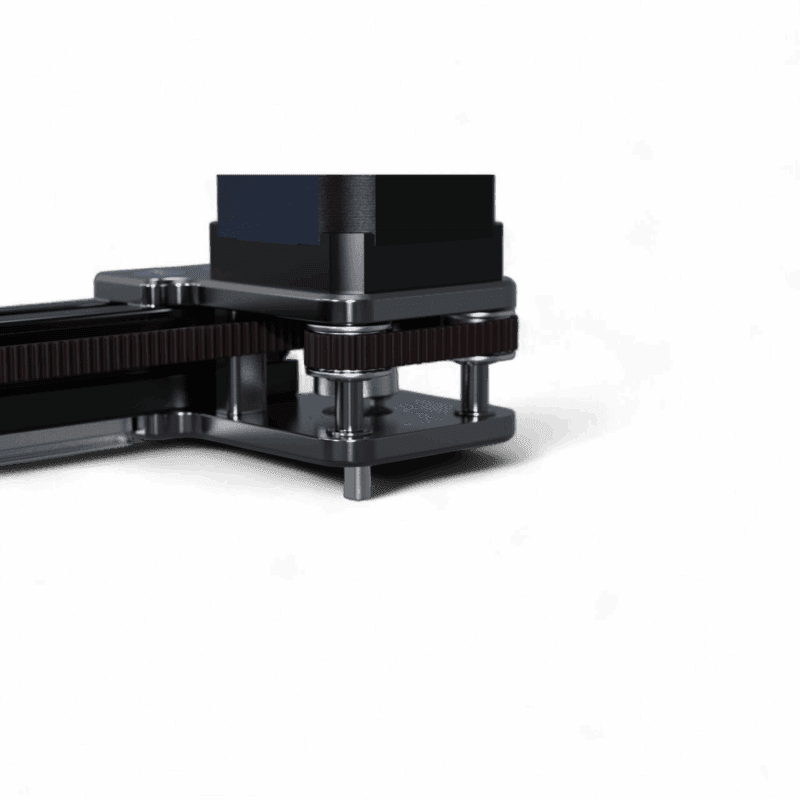

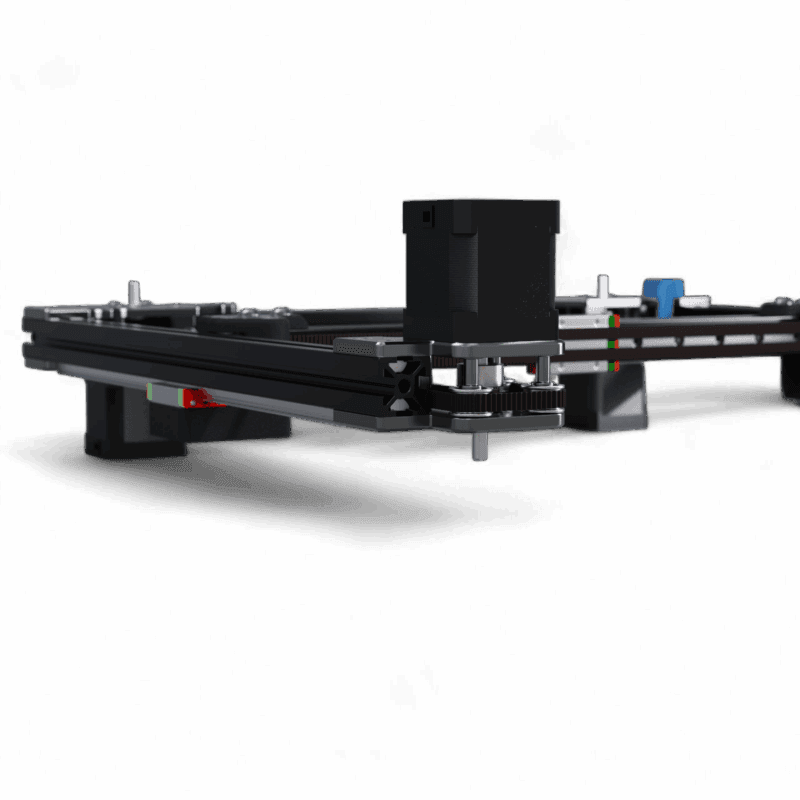

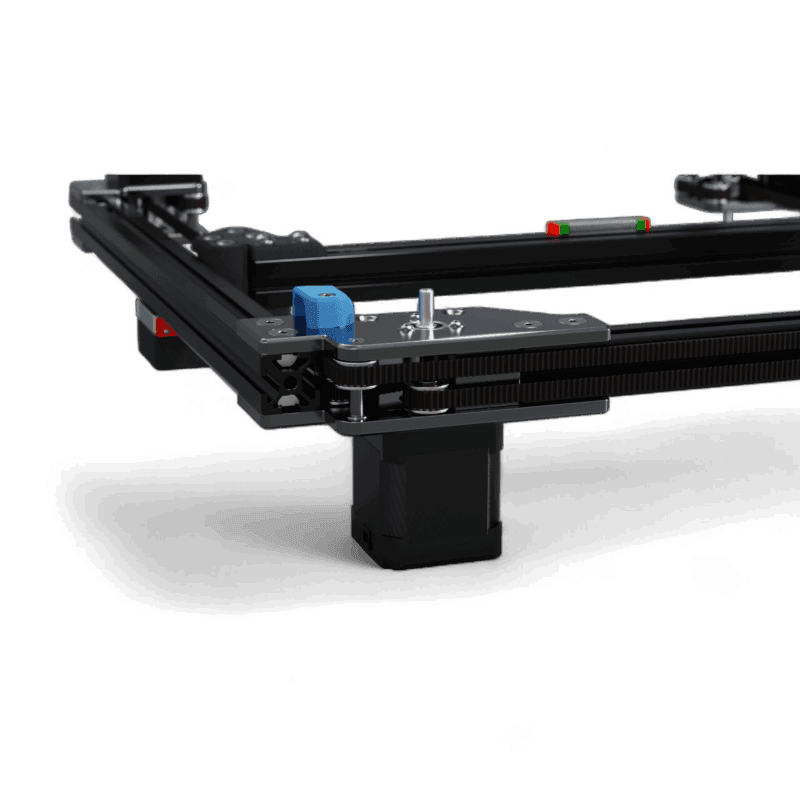

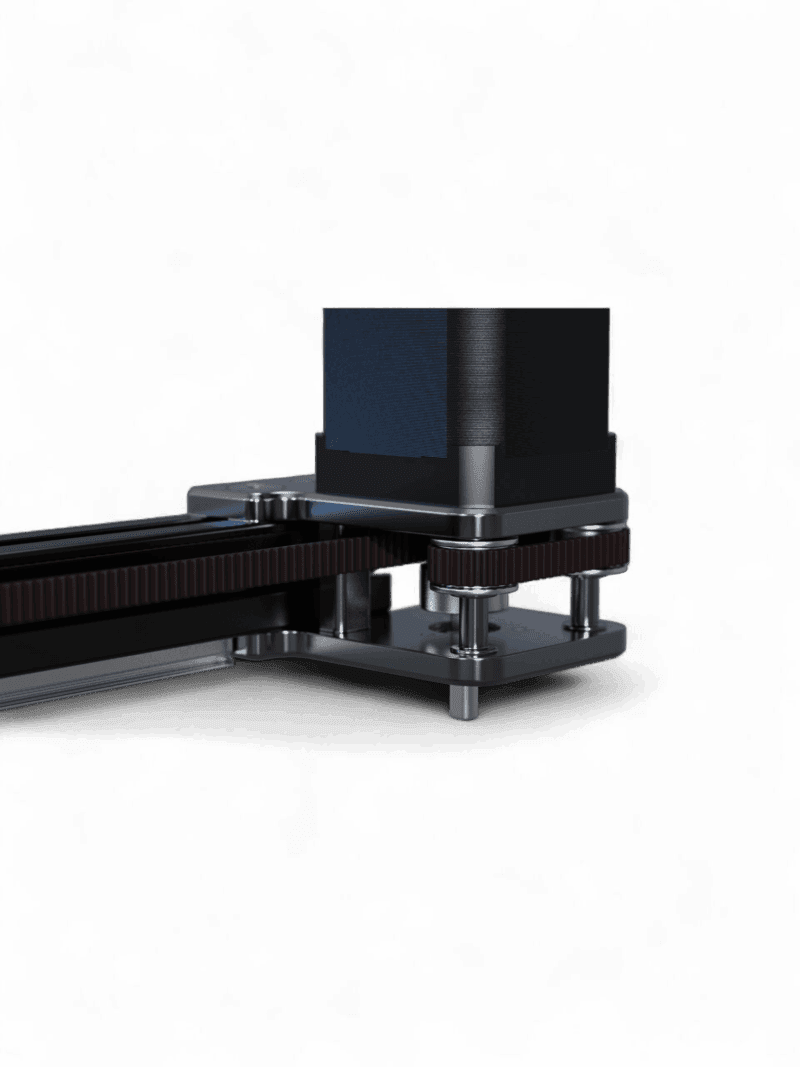

• All-Wheel Drive Motion: Replaces dual motor drive with quad-motor CoreXY for balanced torque
• Motor Support: Compatible with LDO 42STH48 series and Kraken motors (≥35mm shaft)

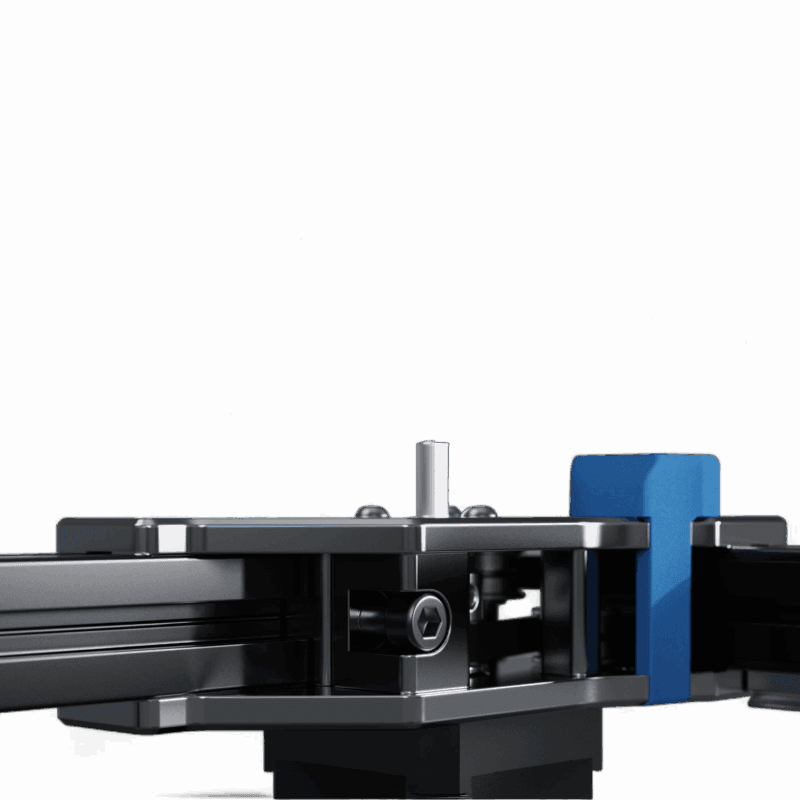

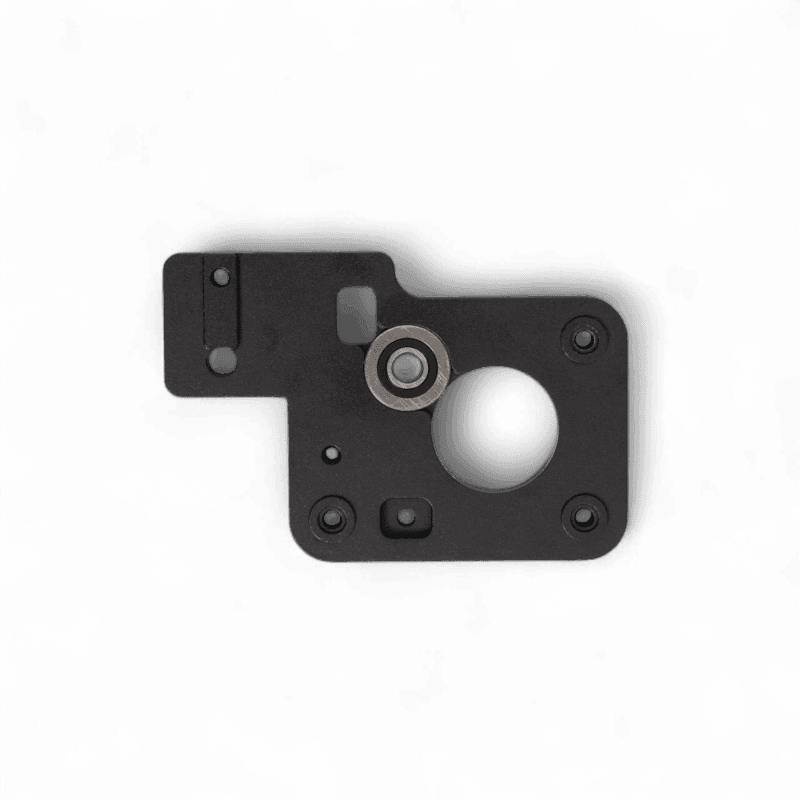

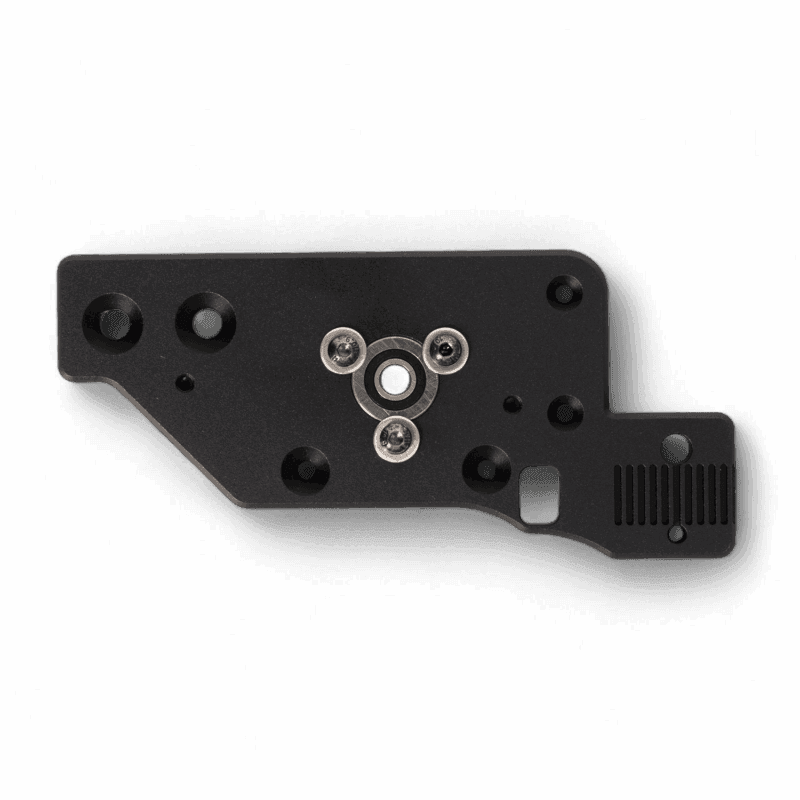

• CNC-Machined Components: Precision aluminium mounts and pulleys for long-term durability
• Belt System: Supports 6mm GATES open belts for optimal grip
• Symmetrical Motion Geometry: Reduces backlash and improves layer consistency at high speeds

Why Upgrade to AWD?

• Improved Load Distribution: Four motors share the mechanical load, reducing wear and improving reliability.
• Enhanced Print Quality: Smoother motion and reduced vibration lead to sharper details and better layer adhesion.
• Higher Acceleration: Ideal for input shaping and high-speed tuning, especially with Klipper firmware.
• Modular Design: Easily integrates with existing LDO kits and toolhead PCBs like the Nitehawk SB.

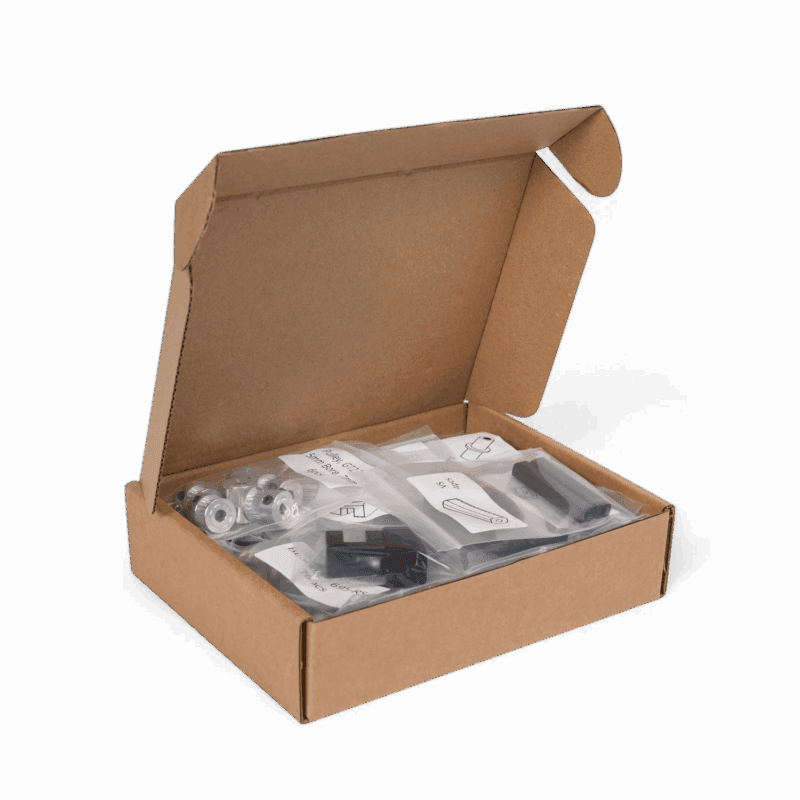

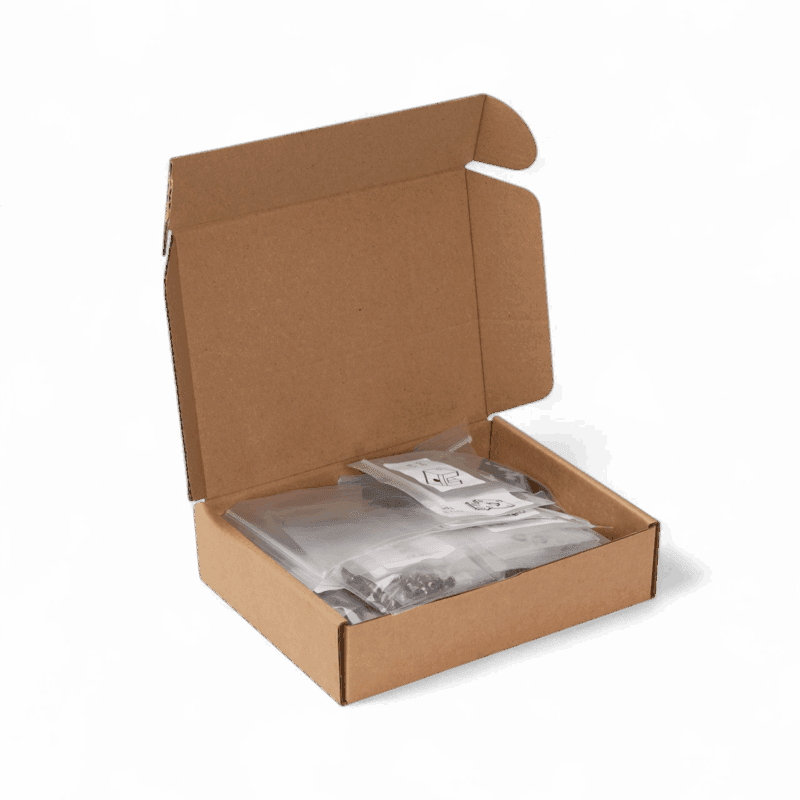

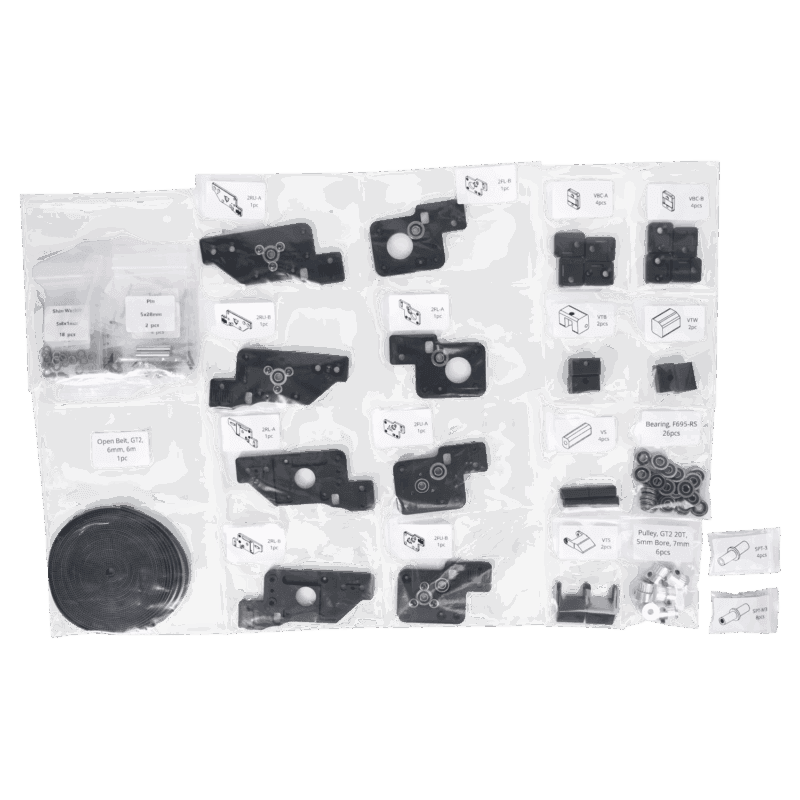

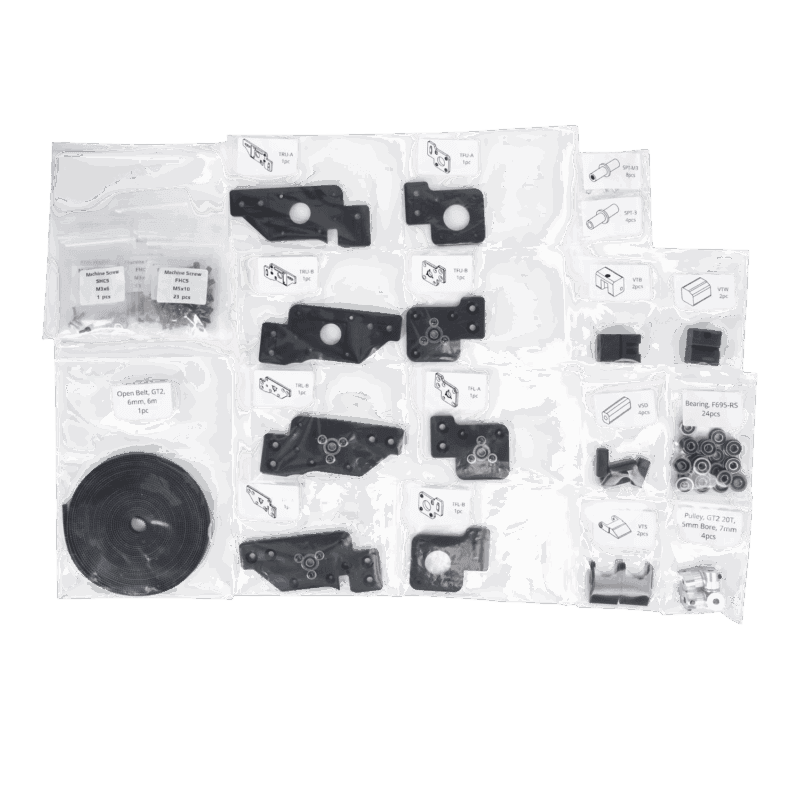

Kit Content

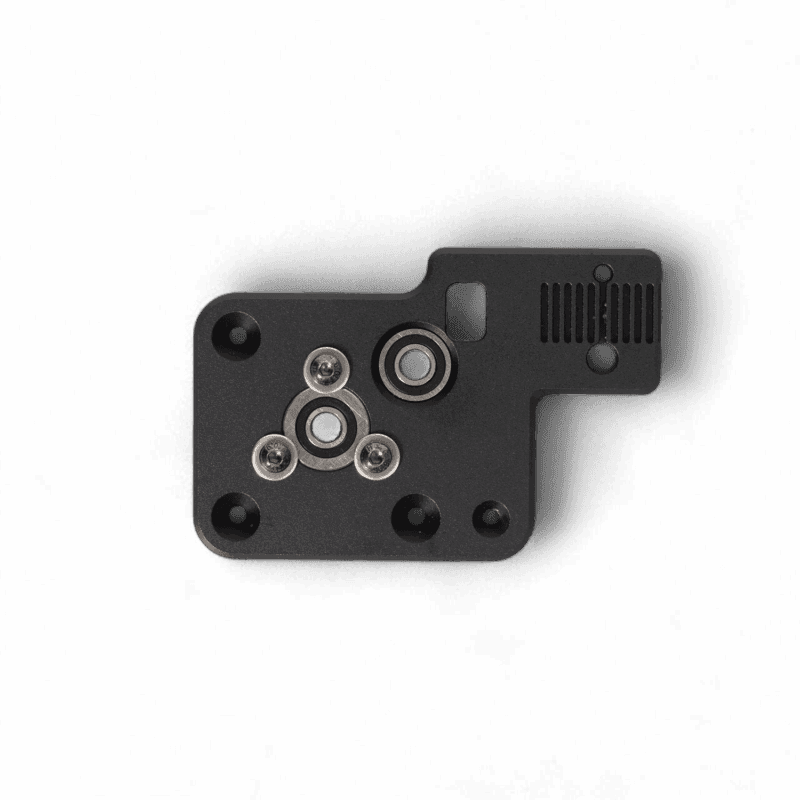

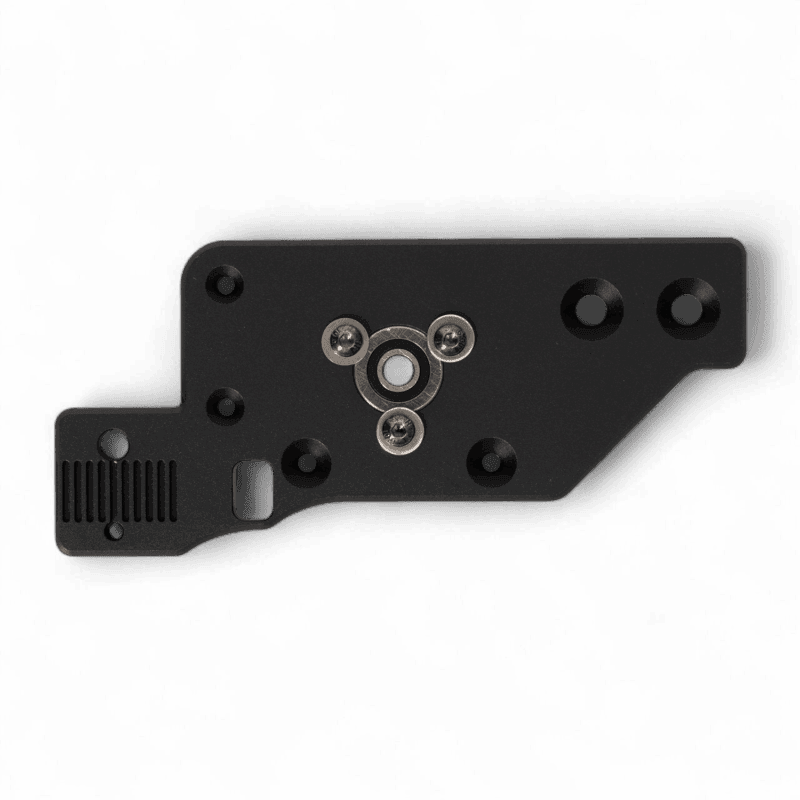

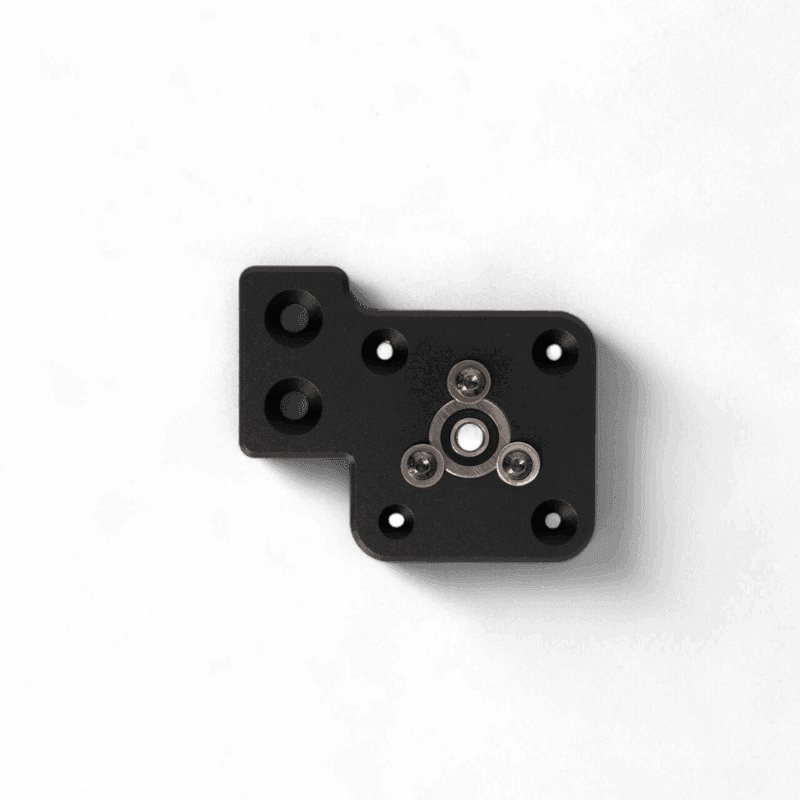

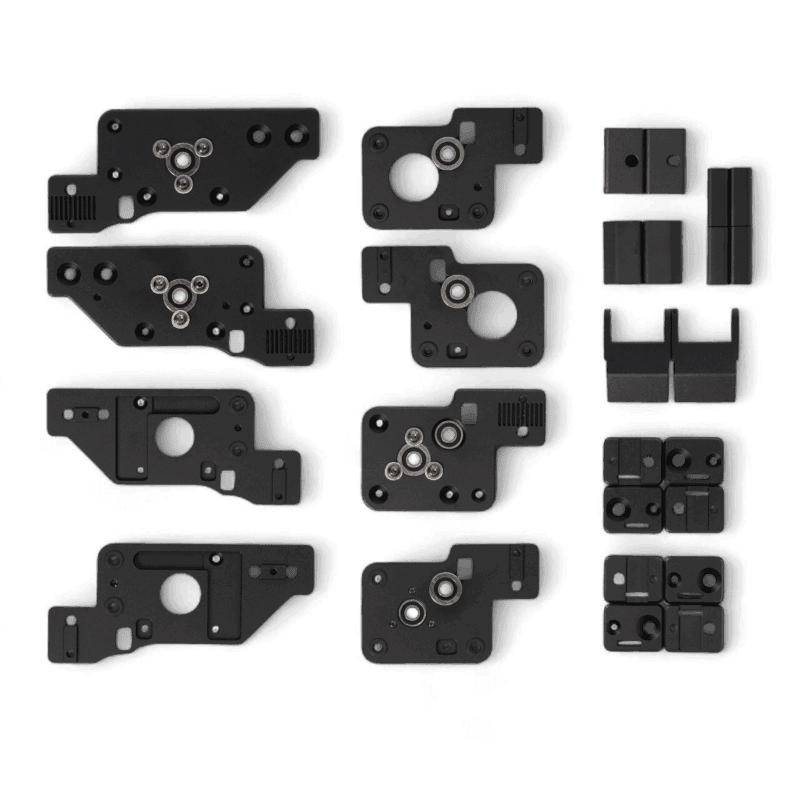

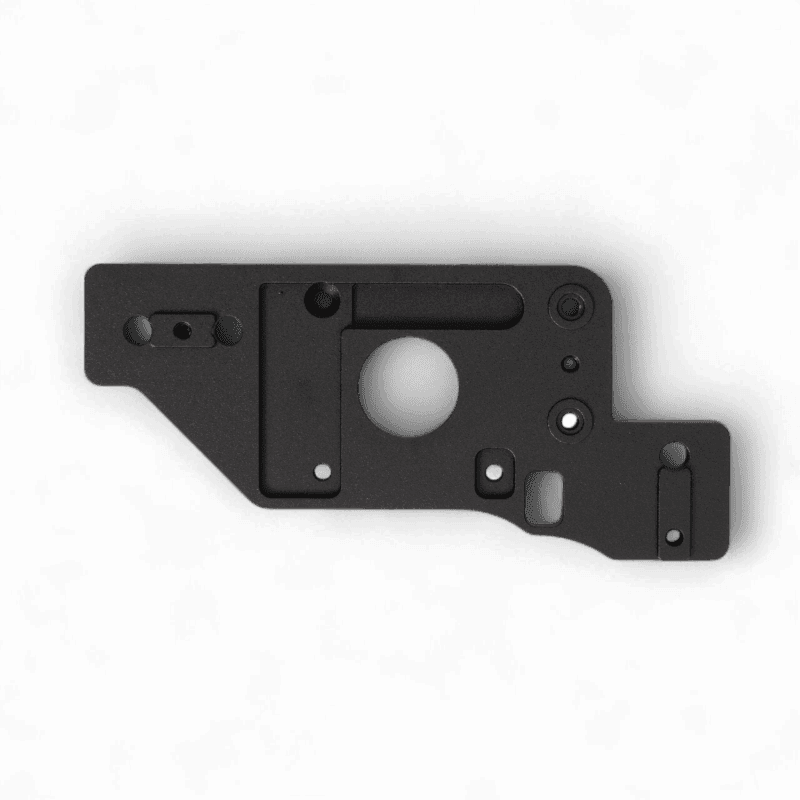

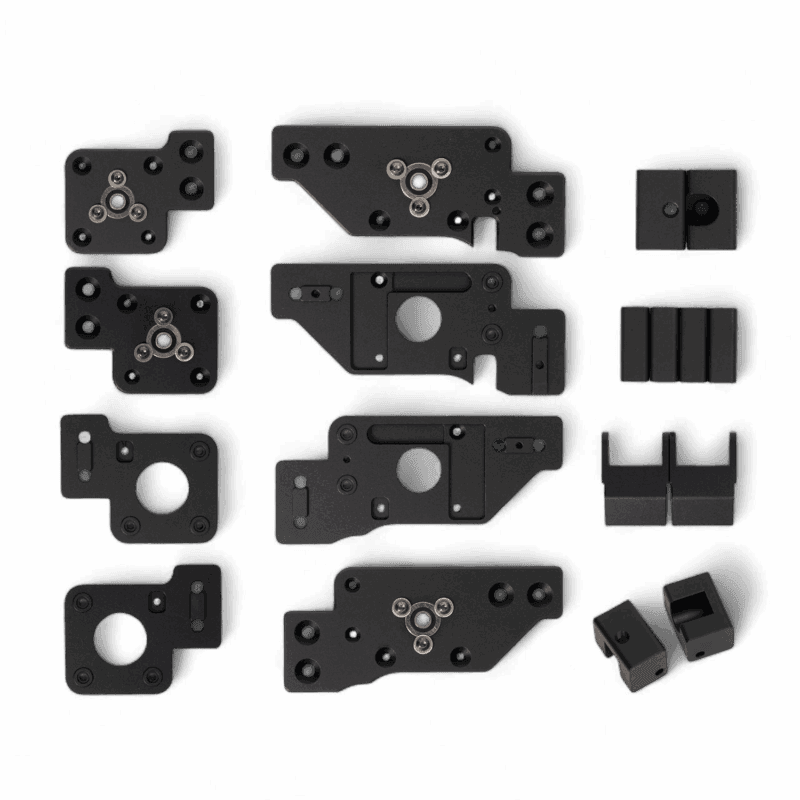

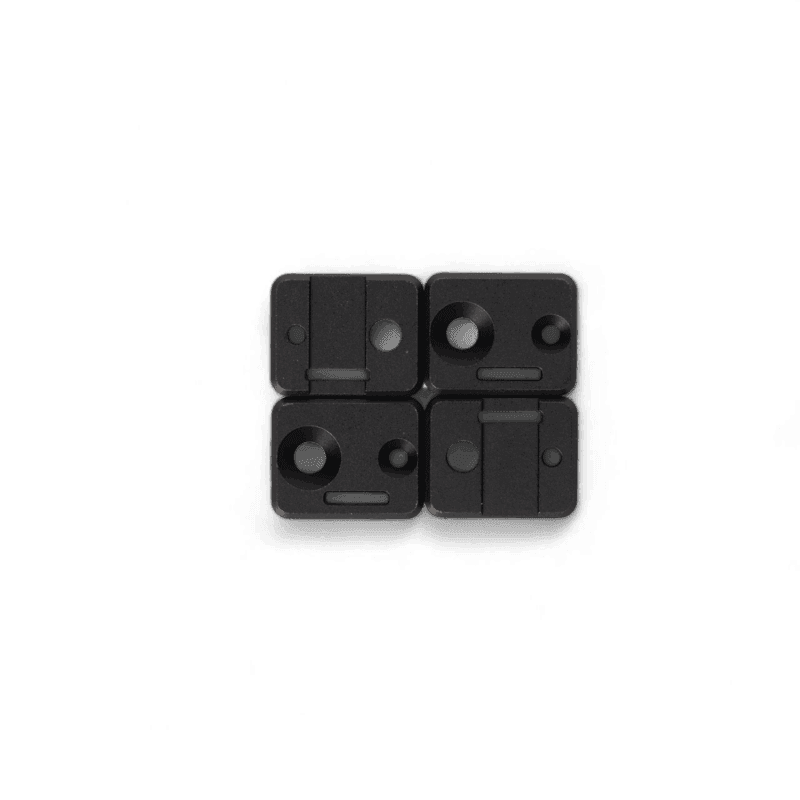

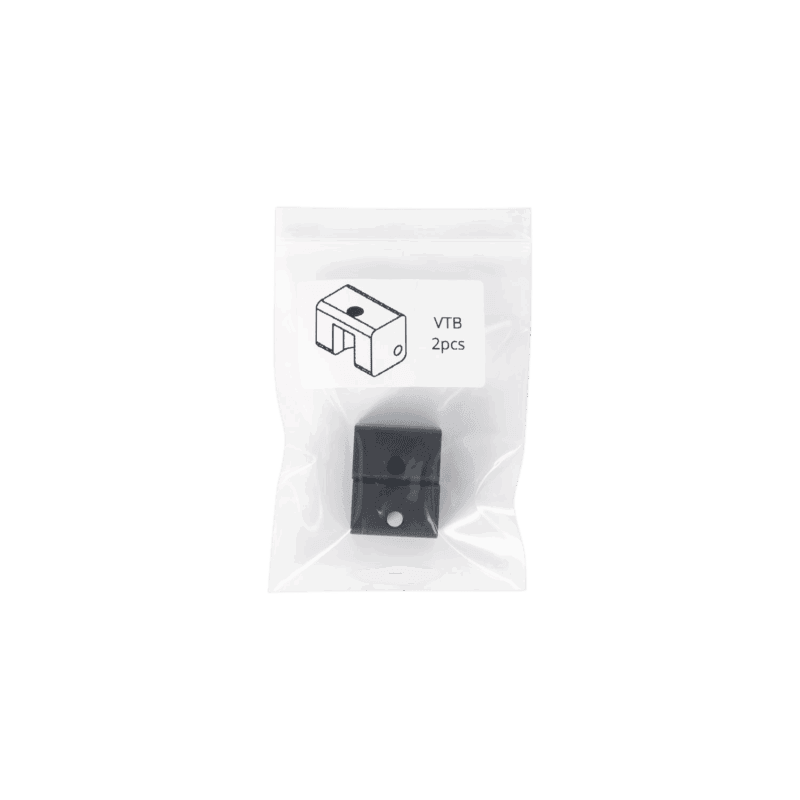

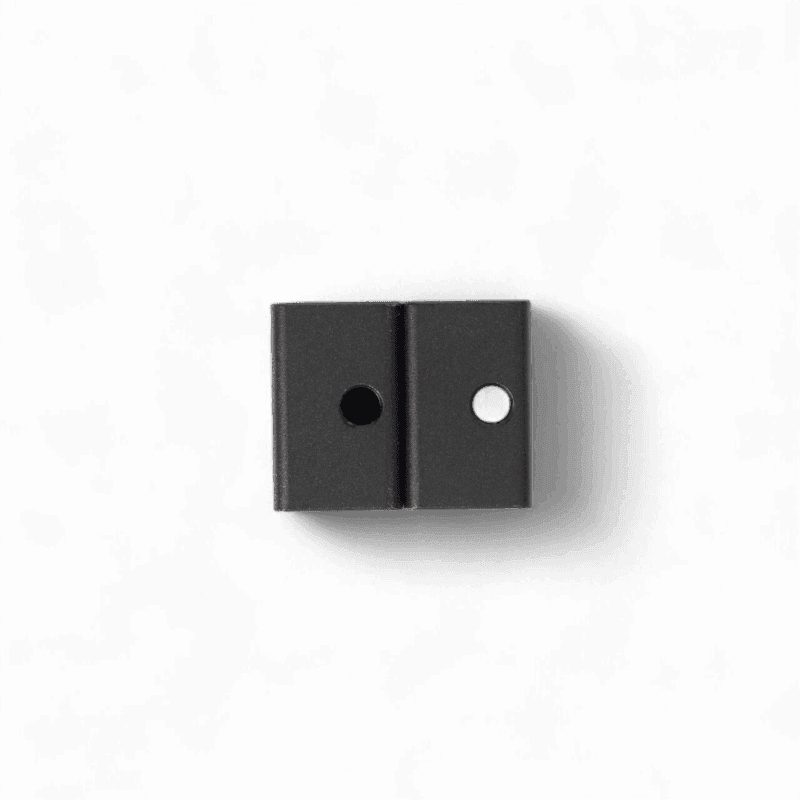

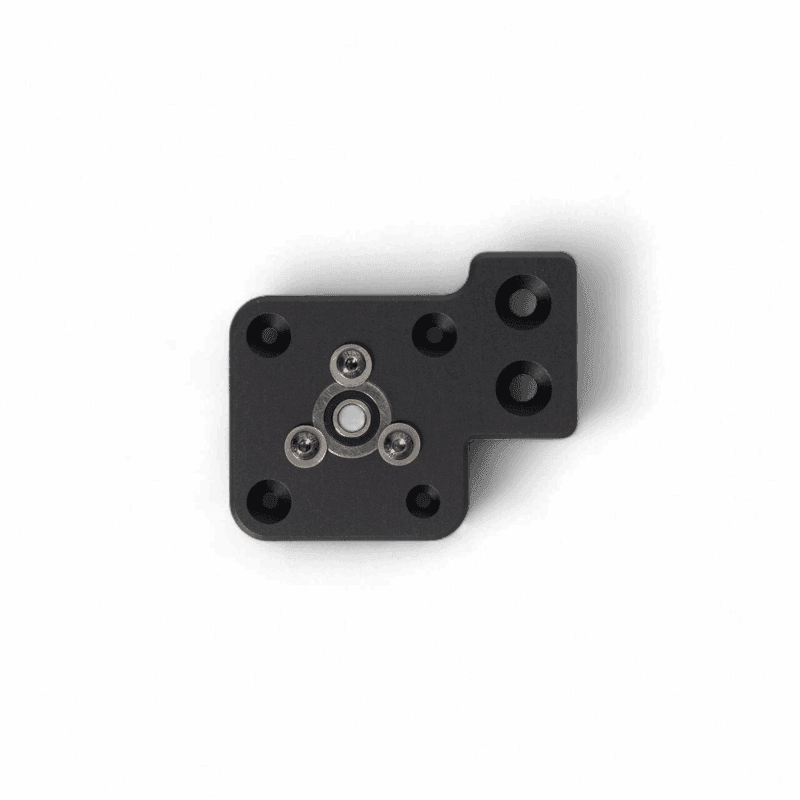

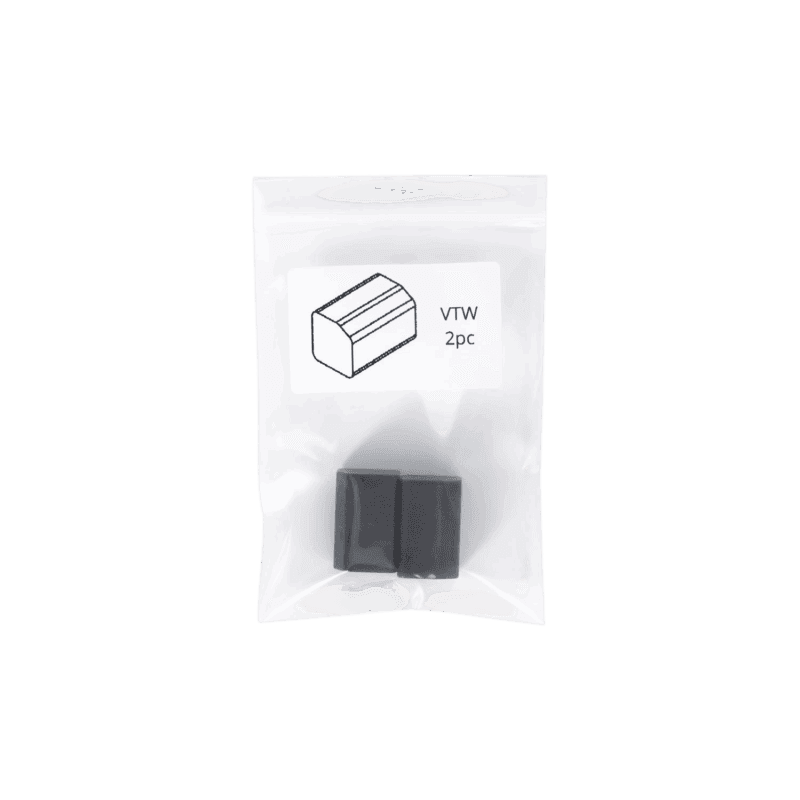

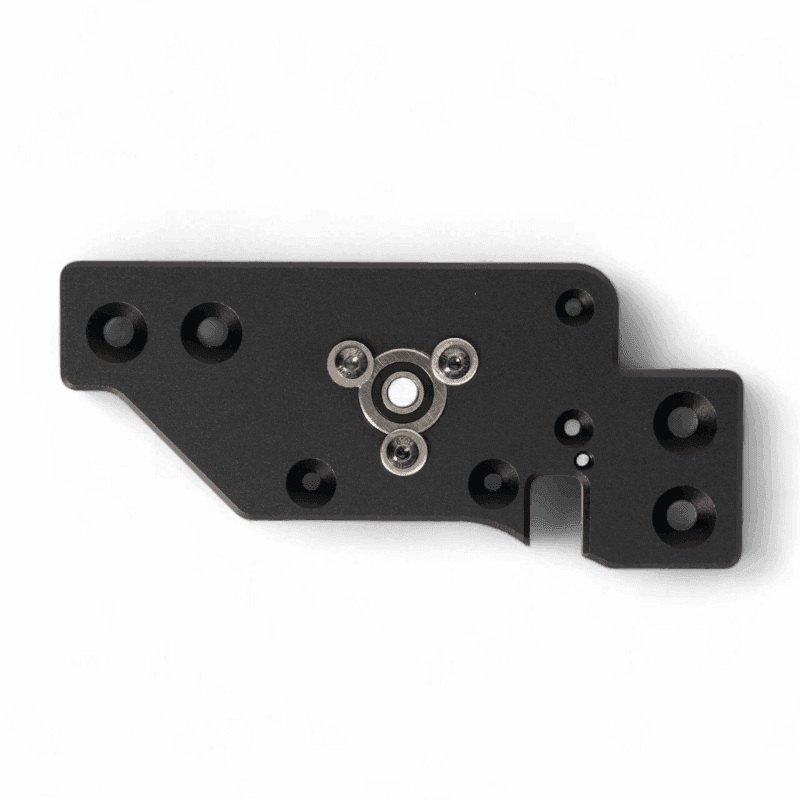

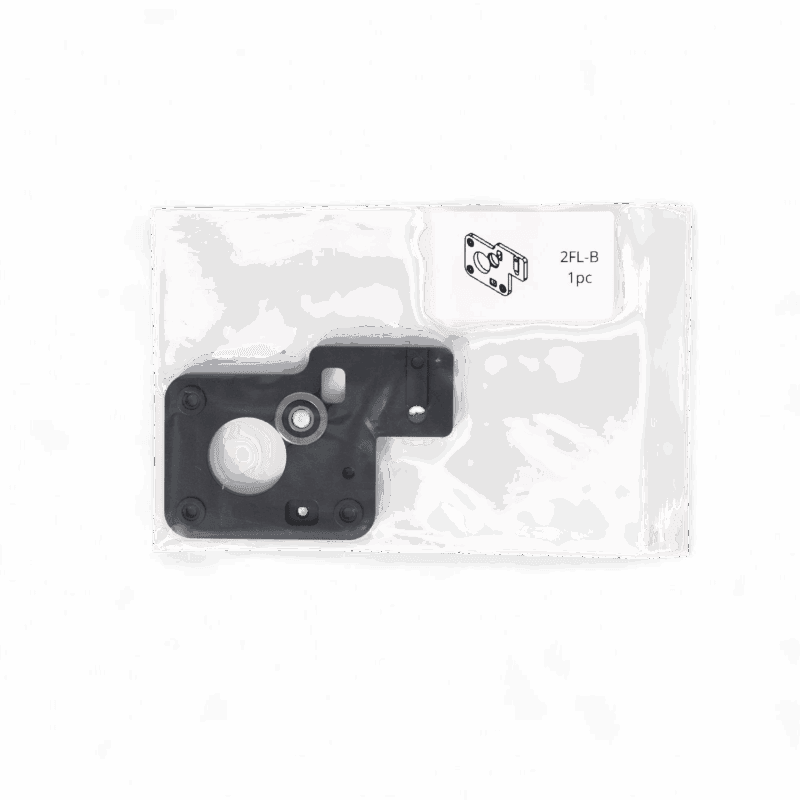

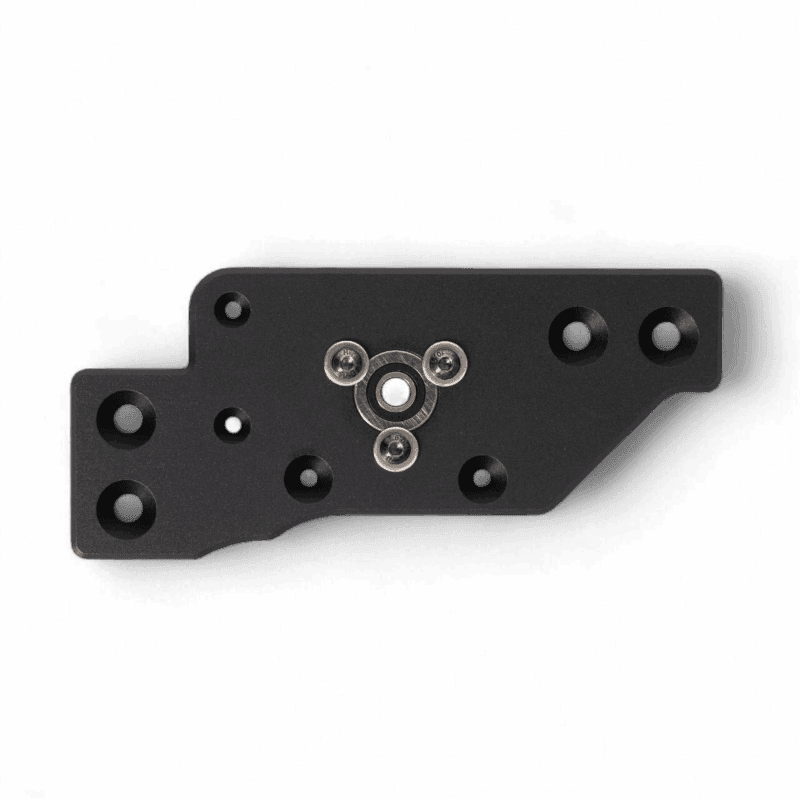

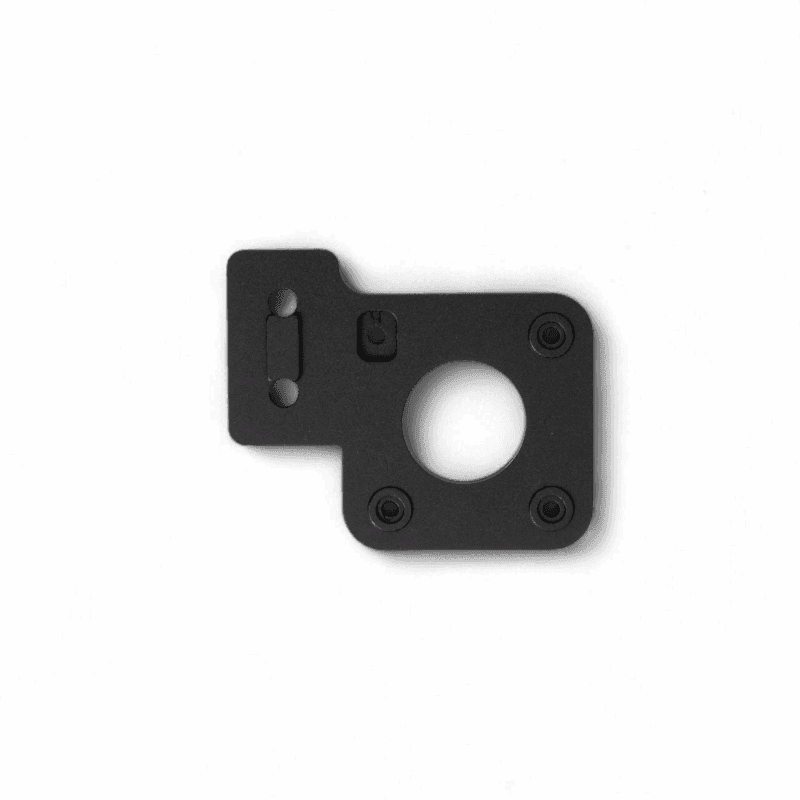

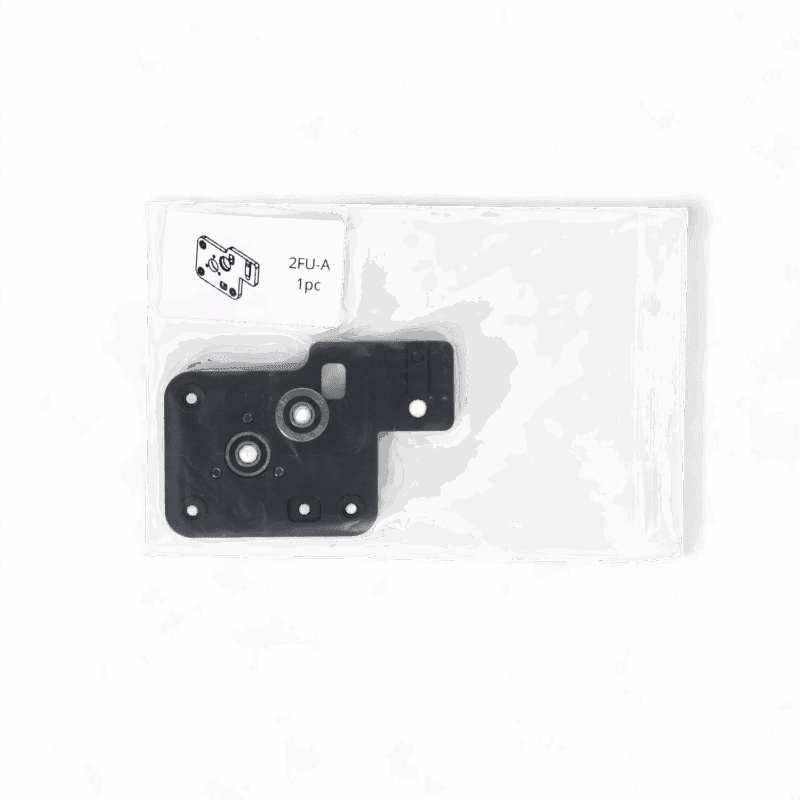

• CNC parts

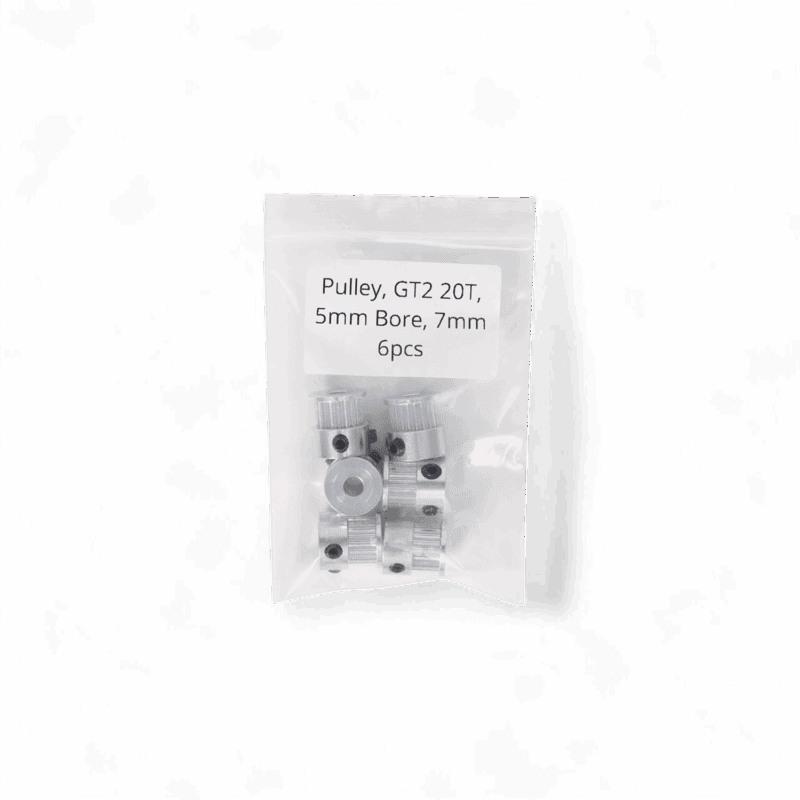

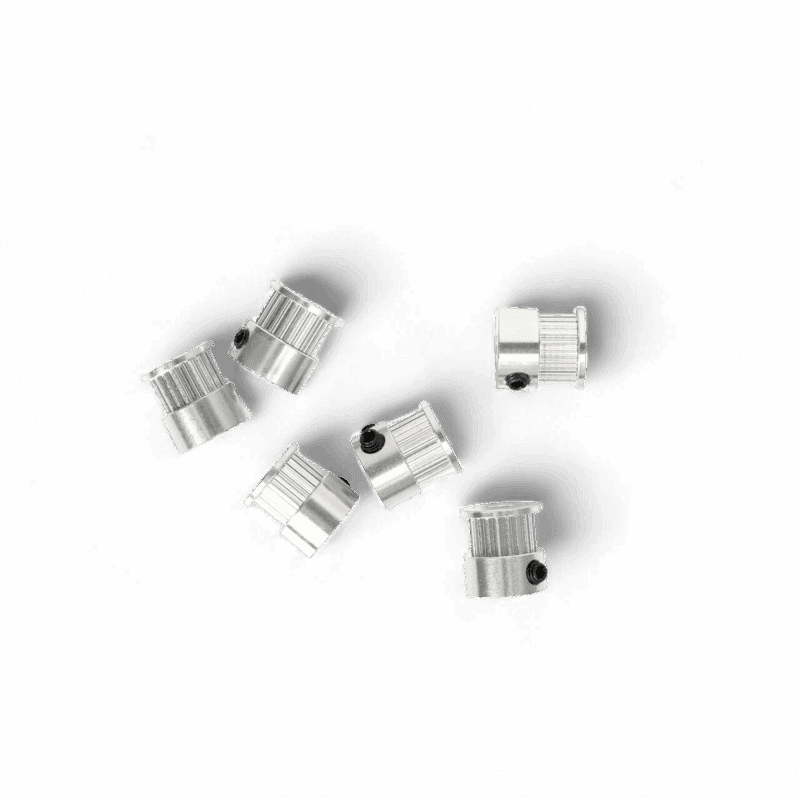

• GT pulleys

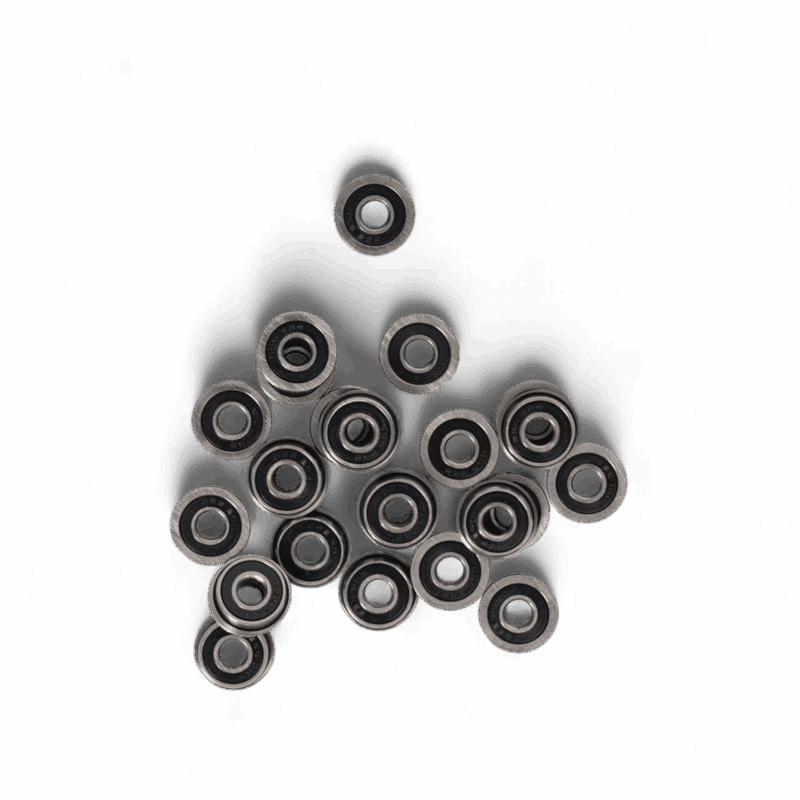

• Bearings

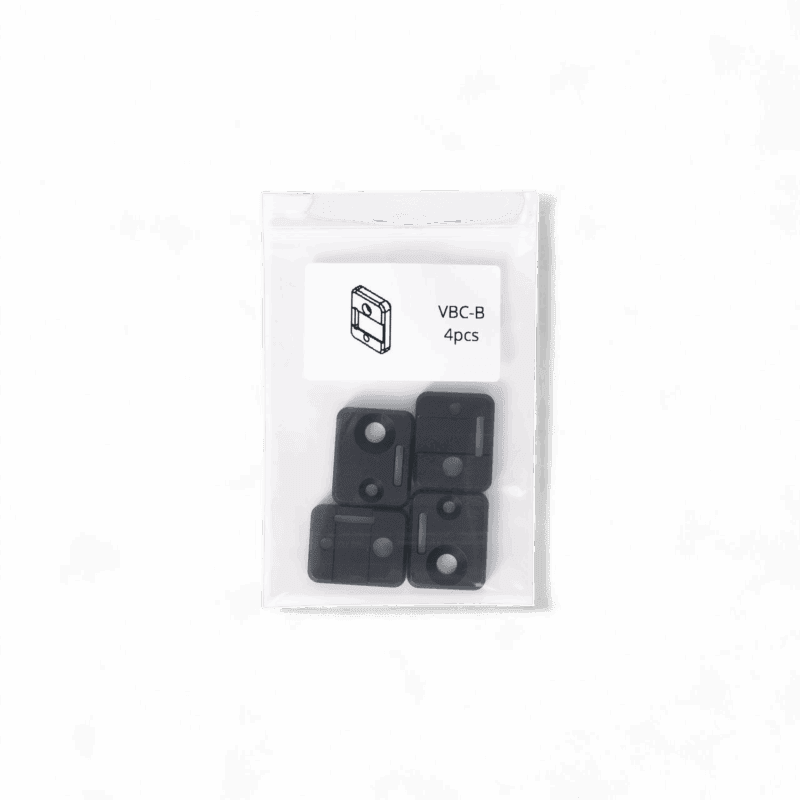

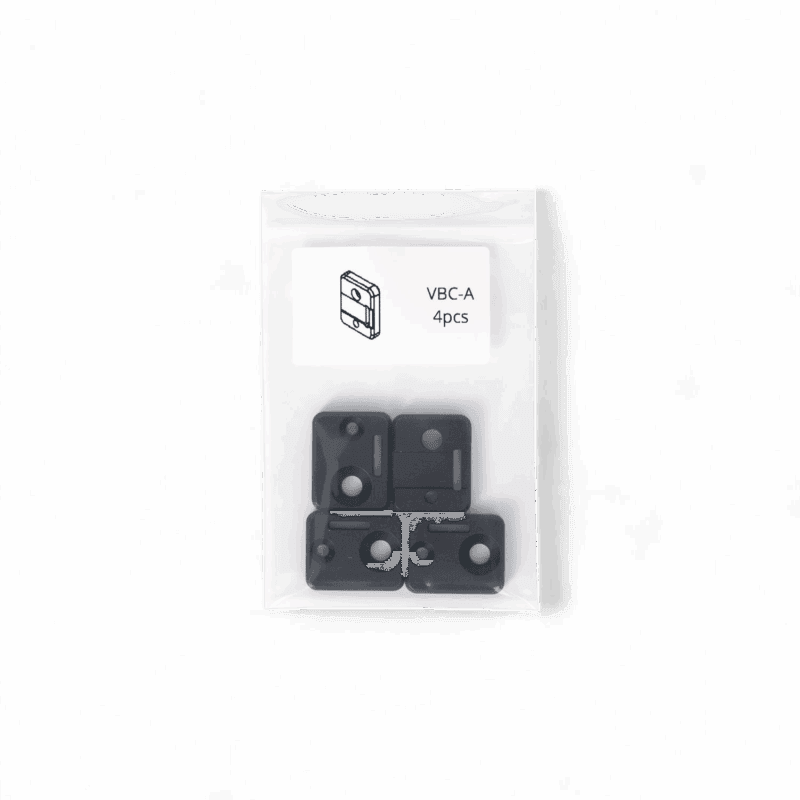

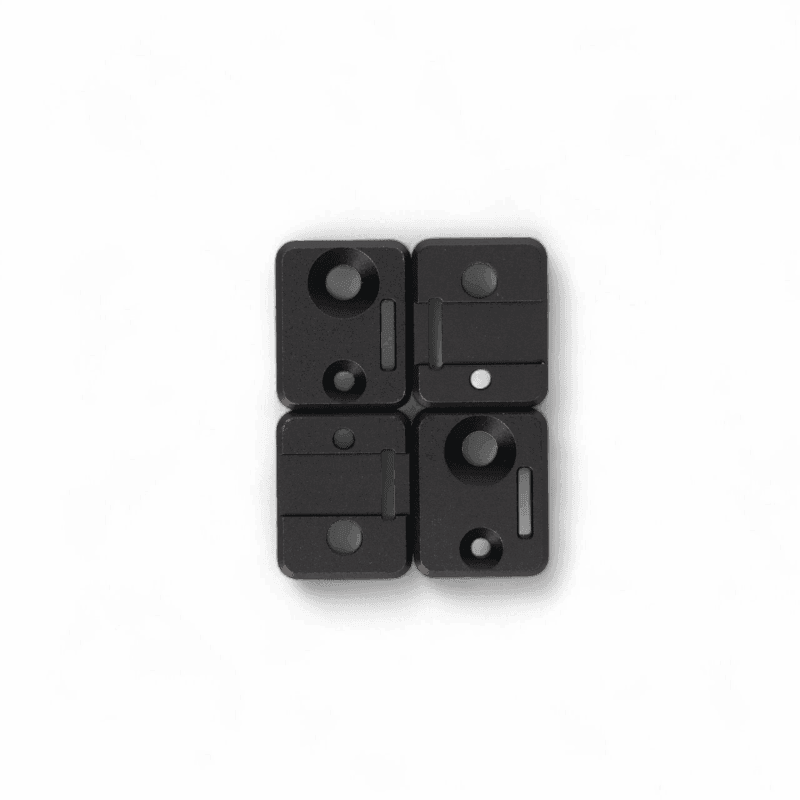

• Belt tensioning hardware

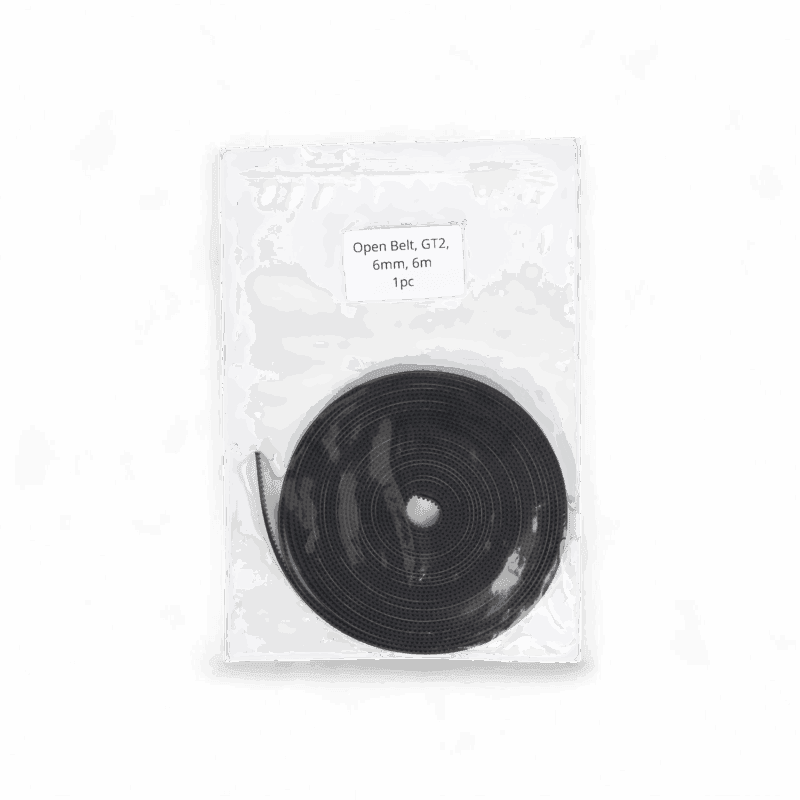

• 6mm belt

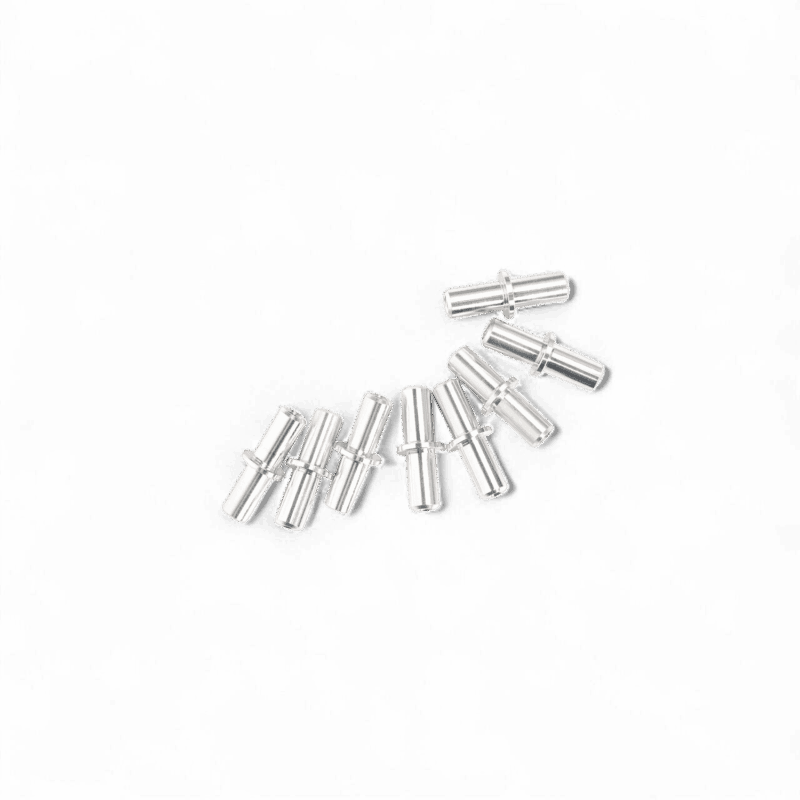

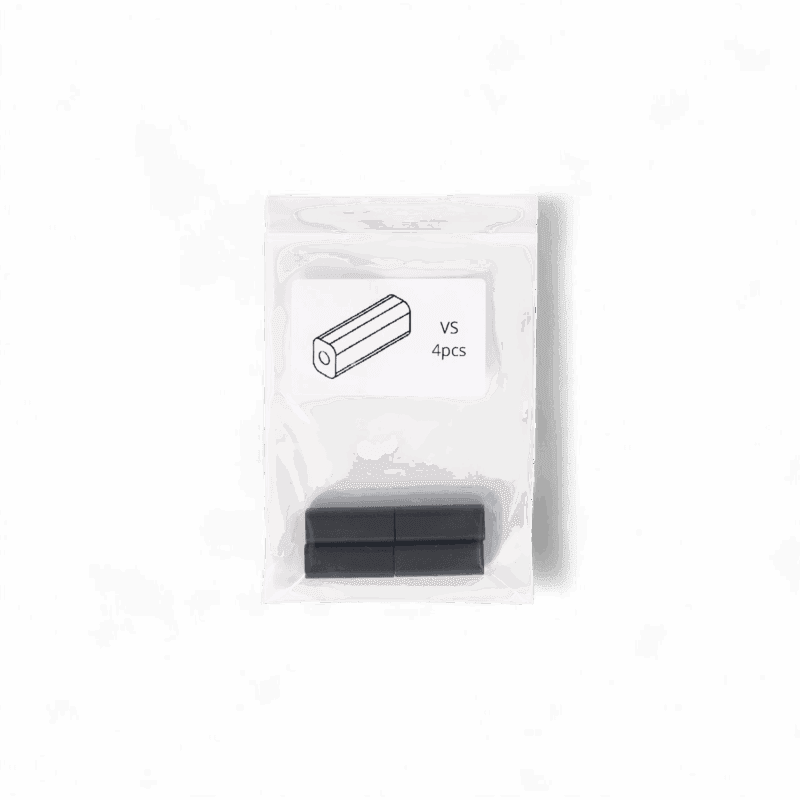

• Mounting screws and spacers
• Installation guide (digital on GIT)

⚠️ Notes

• Motors are not included. Recommended models: LDO 42STH48-2504(S35), 42STH48-2804 (S55), or Kraken variants.
• Ensure firmware is configured for AWD motion kinematics.
• Compatible with LDO Voron 2.4 and Trident kits sold on OneTwo3D.
