PSF (Proportional Sync Feedback) Sensor for MMU

This is a kit for a Mini Proportional Sync Feedback Sensor solution designed for MMU systems.

The Proportional Feedback Sensor is a more advanced feedback solution that uses analogue signals.

Unlike other solutions that rely on D2F switches, it:

• Outputs a signal ranging from 0 to 1
• 0.5 represents the neutral position

With this signal, the printer can determine the exact current position of the feedback slider and adjust it toward neutral at any moment.

Happy-Hare has developed many powerful additional features for this type of sensor.

For details, please refer to the relevant Happy-Hare documentation.

This design does not use a dedicated standalone mainboard. Instead, it leverages the ADC input already available on existing MMU boards.

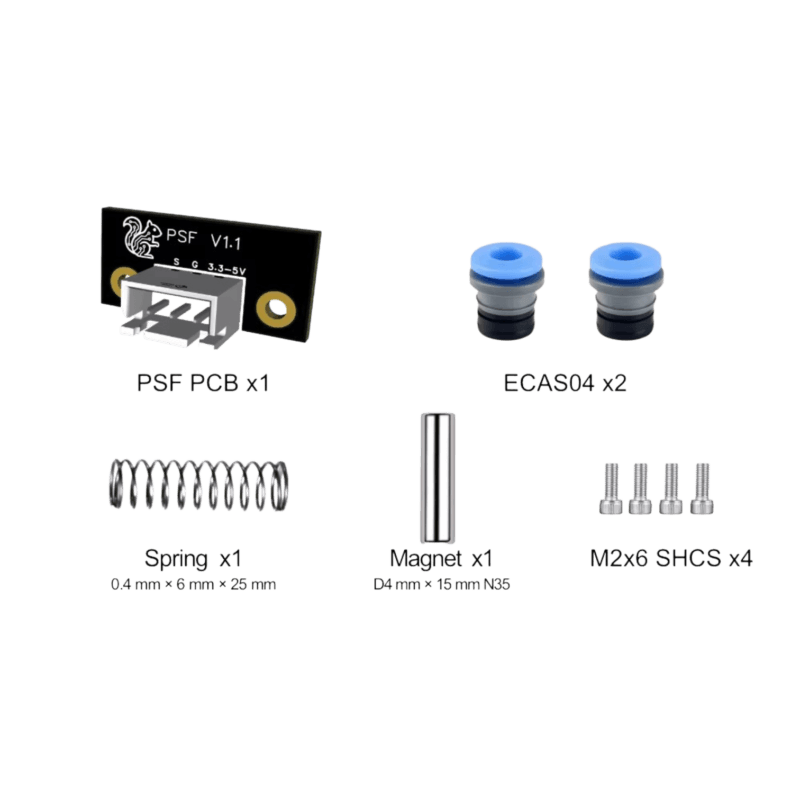

The kit contains everything needed, except printed parts.

More info on GIT
