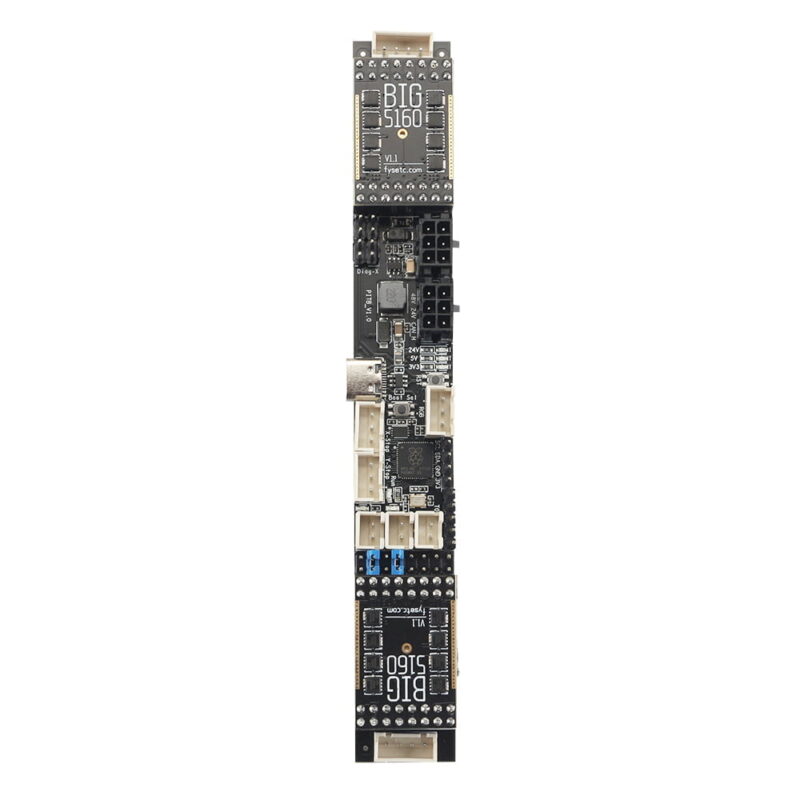

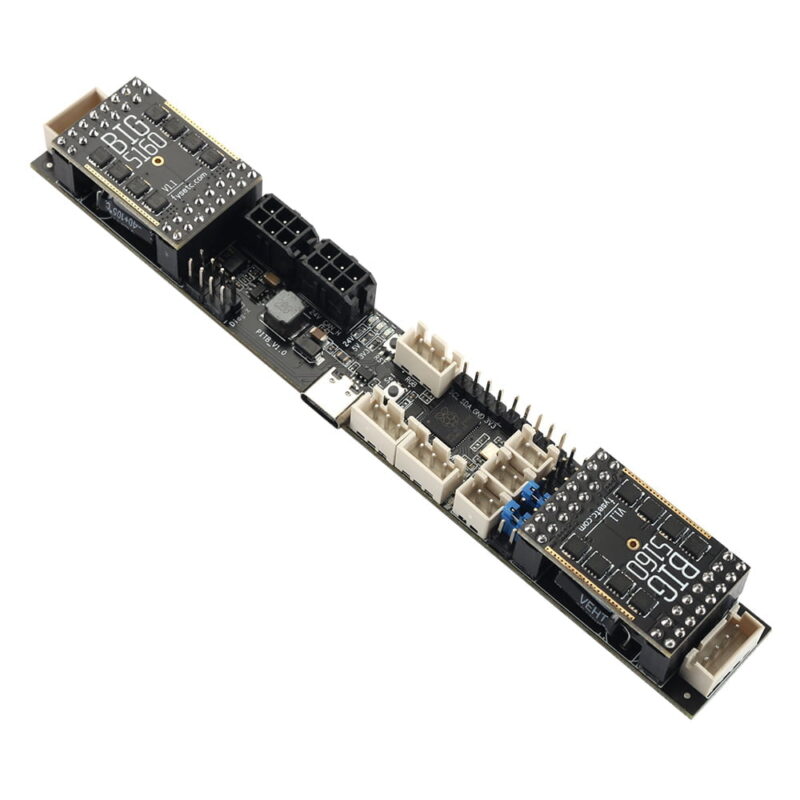

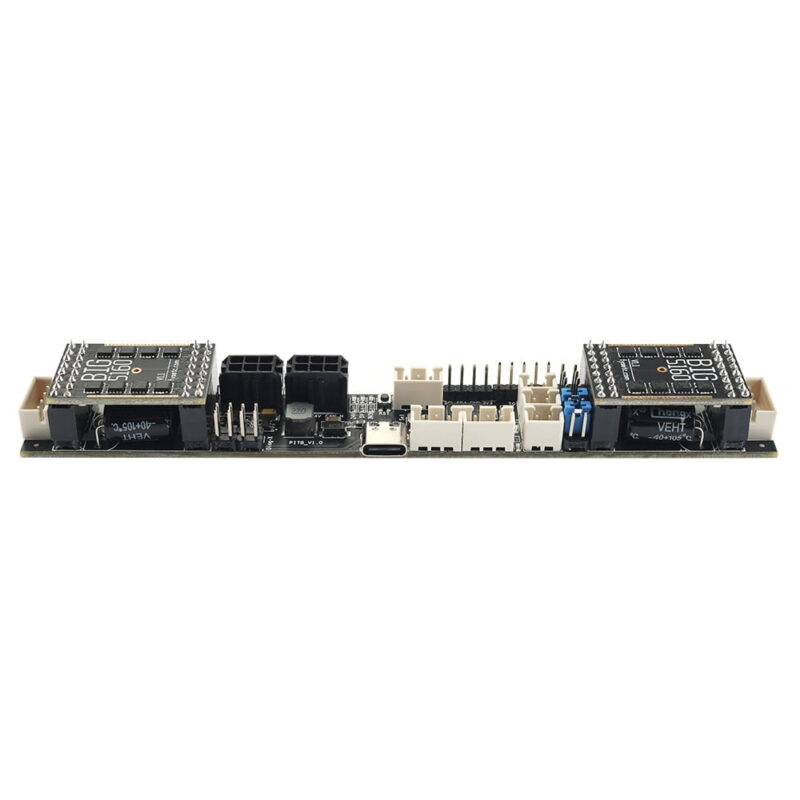

The Voron PITB Board is a CAN-enabled 24-60V dual driver printer control board, sized to fit on the rear extrusion of CoreXY printers.
Features
- Only 150x20mm, with centred mounting holes to fit right on your extrusion
- RP2040 Microprocessor
- TMC5160 Drivers, using FYSETC’s BIG5160 modules for up to 60V 6A per stepper
- Two fan control connectors, either 5V or 24V selectable
- Thermistor connector, for reading chamber temperatures
- Two endstop connectors, 3.3V logic level
- Neopixel RGB connectors
- I2C connector for smart peripherals (displays, sensors, and more)
STLs, firmware settings, etc. can be found here (Kageurufu) and here (FYSETC)
