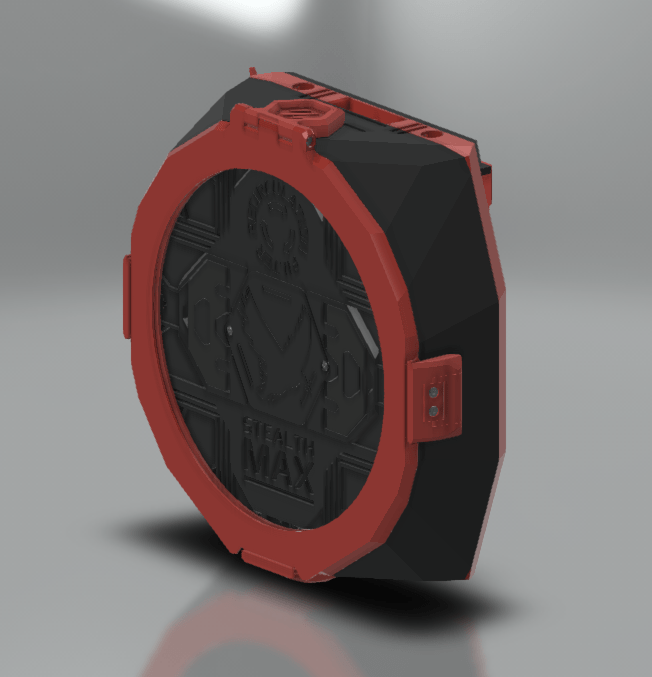

Nevermore StealthMax S Filter Kit Basic
The no frills filter kit for your 250mm Voron printer: activated carbon plus Hepa filtering.
The air is cycled within your printing chamber, so no temperature loss by letting air out of the chamber.
This basic kit contains all components needed for the filtering function (except printed parts) but leaves out the “fancy” electronics for air quality monitoring (for the advanced kit please use this link):
Nuts and Bolts
| M2x4mm Flat Head (<0.8mm) screws | 3 |
| M2x6mm Self Tapping | 4 |
| M3x6mm BHCS | 26 |
| M3x8mm SHCS | 2 |
| M3x10mm BHCS | 5 |
| M3x12mm SHCS | 7 |
| M3x16mm SHCS | 1 |
| M3x20mm SHCS | 2 |
| M3x25mm SHCS | 4 |
| Heat Inserts (M3x5x4mm) | 31 |
| M10 threaded DC connector (pair) | 1 |
Electronics & Wiring
- 1x M8 threaded DC connector
- 1x JST-PH 4-pin male fan connector
- 1x KFB0612HAFDB fan
Extras
- 1x Linneo 200mm round polycarbonate (PC) sheet, 3mm thick
- 1x Pneumatic Bowden Fitting M10
- 1x Nevermore StealthMax S HEPA Filter
- 1m Polymax Neopren Sponge Cord (3mm)
- 2x Nevermore Carbon XL refills
More info on GIT
