CAN Power Cable (XT30 2+2)

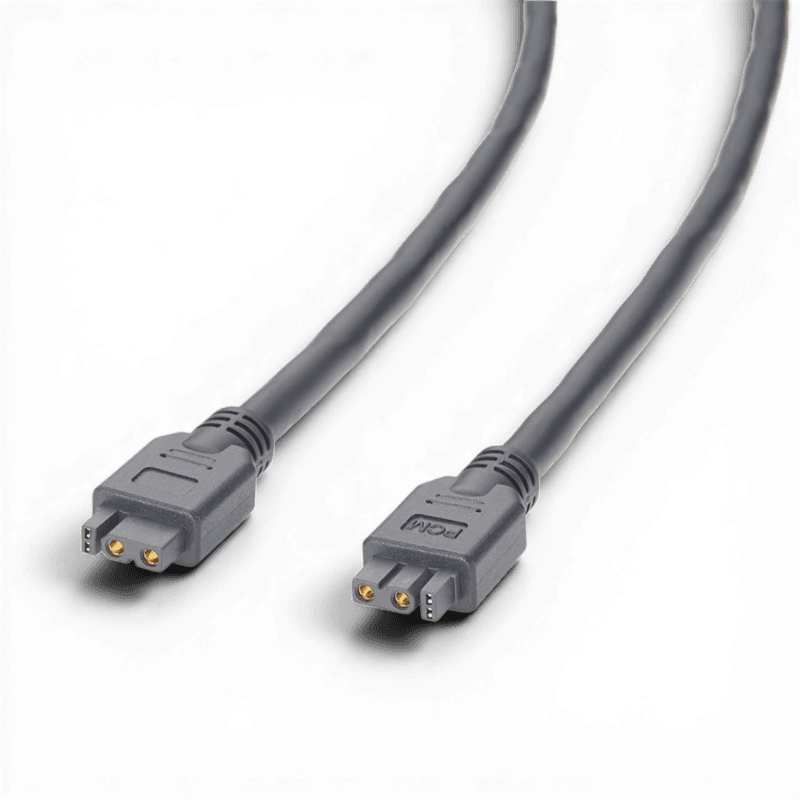

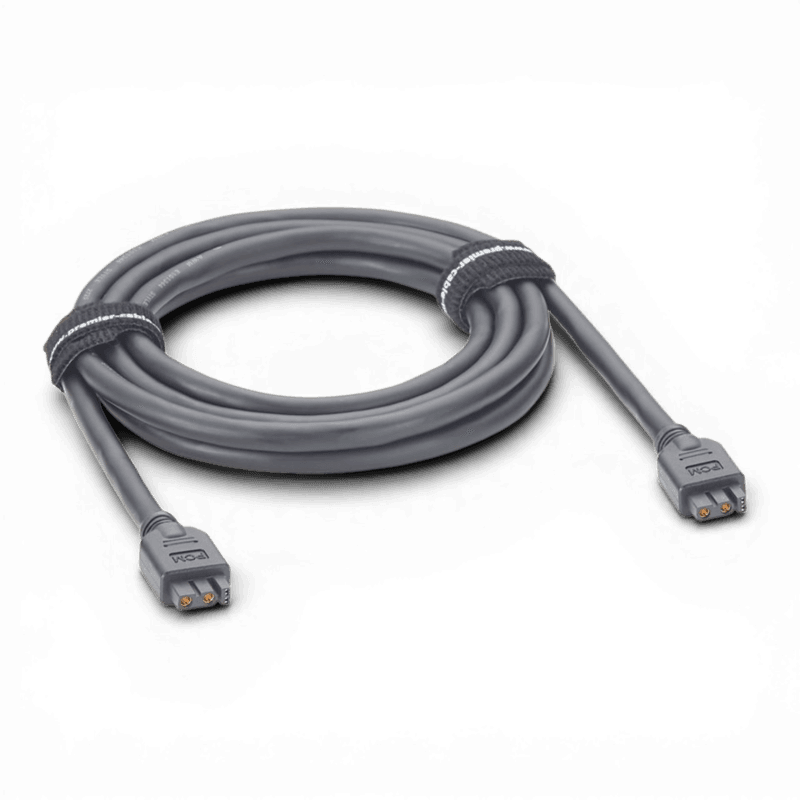

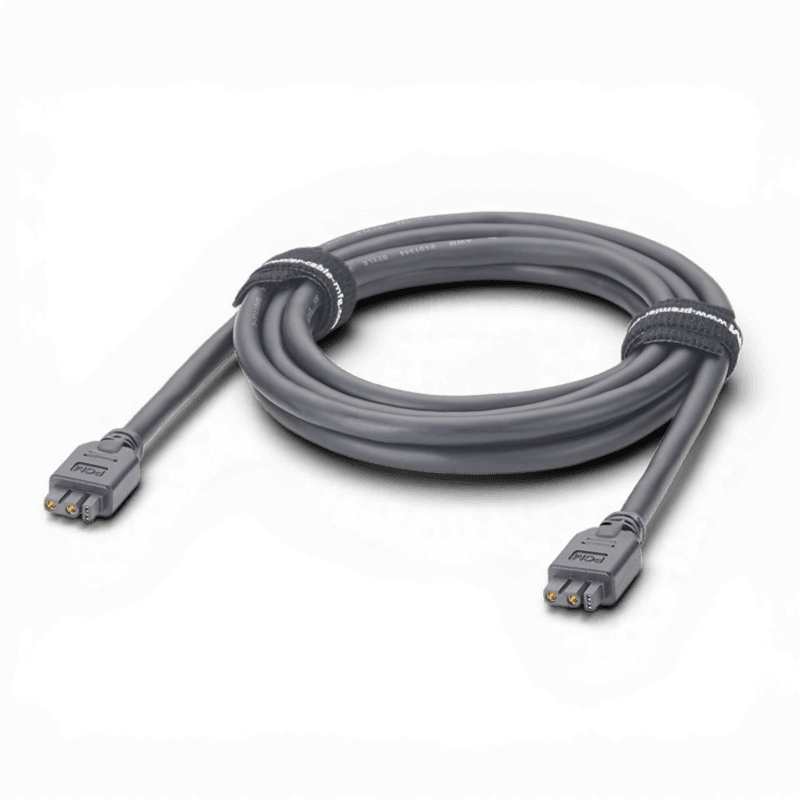

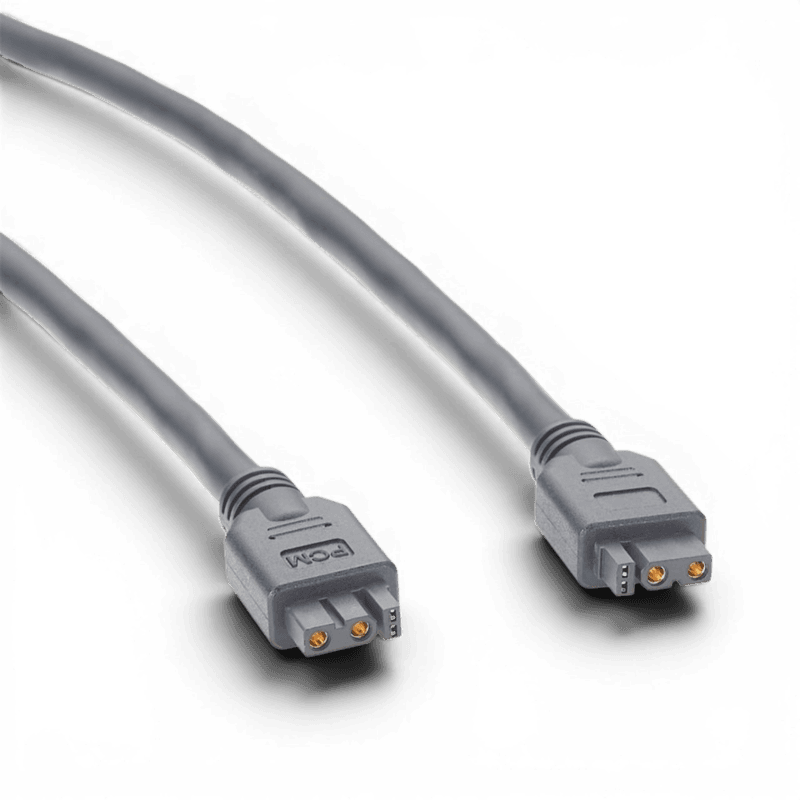

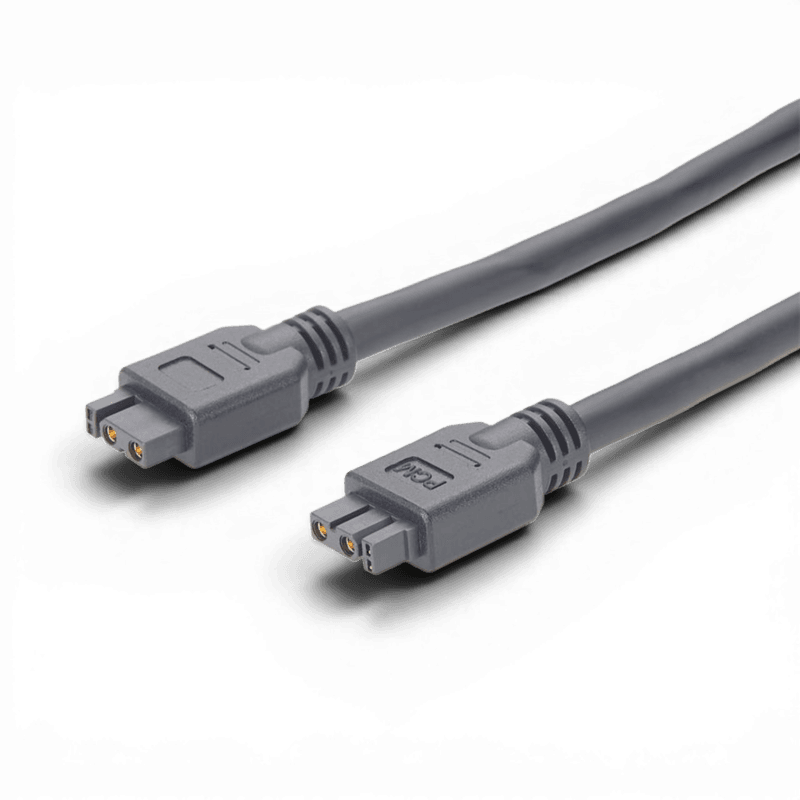

XT30 2+2 Cable – An Integrated Power and Communication Solution
The XT30 2+2 Cable is suitable for applications requiring simultaneous power supply and communication/control signals. Integrating power delivery and communication signals into a single connector helps reduce wiring complexity and improve system reliability.
The PCM Cable uses standard CAN communication specifications, offering industrial-grade stability and reducing cable chain failures.
Product Features:
- Compact size (more compact than the XT60)
- Supports medium current (typically 15–30A)
- Secure mating (vibration resistant)
- Twisted CAN wires for improved signal quality
- XT30 connector fully moulded (bend protection)
- Can simultaneously carry power and signals (reducing the number of interfaces)

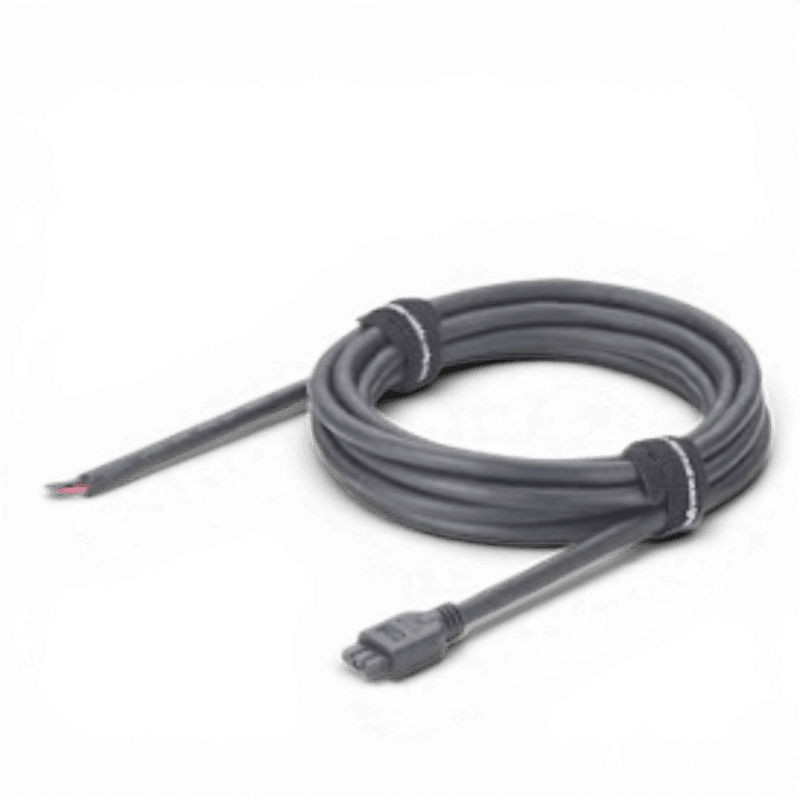

WARNING: the open ended XT30 2+2 wire has an “unusual” pin-out:
Pin 1: black wire –> in most 3D printer setups this is 24V (normally red wire)
Pin 2: red wire –> in most 3D printer setups this is GND (normally black wire)
Pin 3: white wire –> in most 3D printer setups this is CAN low (normally green or blue wire)
Pin 4: green wire –> in most 3D printer setups this is CAN high (normally white or yellow wire)
Please make sure to check your controller board side pinout before powering up the printer.
