E3D Revo PZ Probe™ Voron Coldside

US$77.16

Designed specifically for use with the Voron Stealthburner, Revo PZ Probe™ Voron integrates a bed levelling system inside a Revo Voron Heatsink, transforming your Revo nozzle into a bed probe – all within the same form factor.

Out of stock

E3D Revo PZ Probe™ Voron Coldside

Back in stock: End of October

Designed specifically for use with the Voron Stealthburner, E3D Revo PZ Probe™ Voron Coldside integrates a bed levelling system inside a Revo Voron Heatsink, transforming your Revo nozzle into a bed probe – all within the same form factor.

Easy PZ Probing

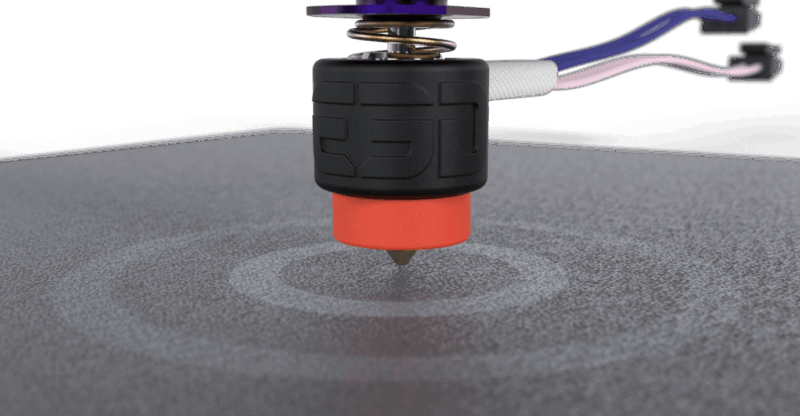

PZ Probe is a piezoelectric element which converts vibrations into electrical signals and is triggered upon contact between the nozzle and the print bed. With PZ Probe you only need to calibrate your z offset once to accommodate for flexibility in your motion system, after that simply screw in (with only your fingers) a new nozzle, and PZ Probe does all the hard work for you…. Easy PZ!

Lightweight

Weighing in under 40g including the heatsink & cables, PZ Probe ensures that this set-up is significantly lighter than any other Stealthburner tool head and bed levelling sensor combo.

Perfect first layer

Using the Revo nozzle as probe ensures a precise bed levelling mesh, leading to a clean first layer, the pre-requisite of any successful 3D print.

Easy Integration

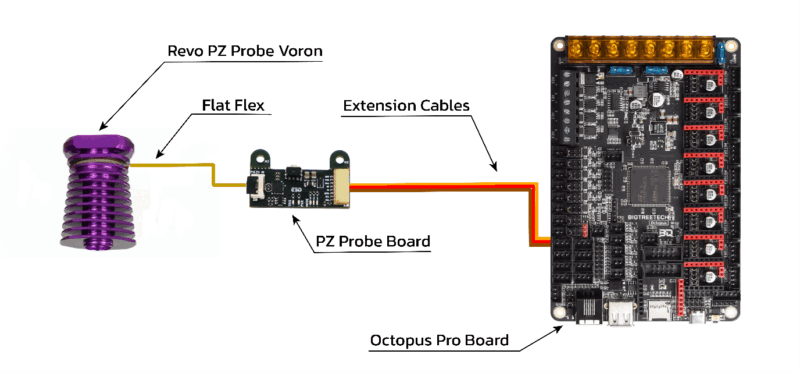

The only new part to add to your existing Stealthburner set-up is a Flat Flex Cable, read more here about this super simple step. Check out SteveBuilds mount here, note that you will need 2 extra printed parts if you opt for this mount.

Read more technical information in our blog.

Compatibility: Revo PZ Probe Voron is compatible with Voron Stealth burner.

Please note: Make sure to read the technical datasheet in its entirety prior to installing the PZ Probe.

Pair with your perfect Hotside

Pair your Revo Voron Coldside with one of our carefully curated Hotside packs to ensure your printing needs are met, straight out of the box. All Hotside packs come with your heating and sensing elements plus a variety of nozzles for you to start quick swapping with. Select from the following options:

Starter – Ideal for users printing at standard speeds with PLA, PETG and ASA

High Flow – Perfect if you’re looking to push your Voron printer’s print speed capabilities to the limit

High Flow X – All the benefits of the High Flow pack with the bonus of abrasive resistance for printing with fibre filled materials

Genius 400 – A hobbyist’s playground: high temperature, high flow and abrasive printing in one kit

Genius Metal – The ultimate hobbyist’s playground

Key Features:
  • Total Mass: 36g
  • Compatibility: Voron Stealth burner
  • Filament Diameter: 75 mm
  • Maximum ambient temperature: 75°C
  • Max. supply voltage: 5V
Kit includes:
  • 1 x Revo Voron Heatsink with an integrated Piezo

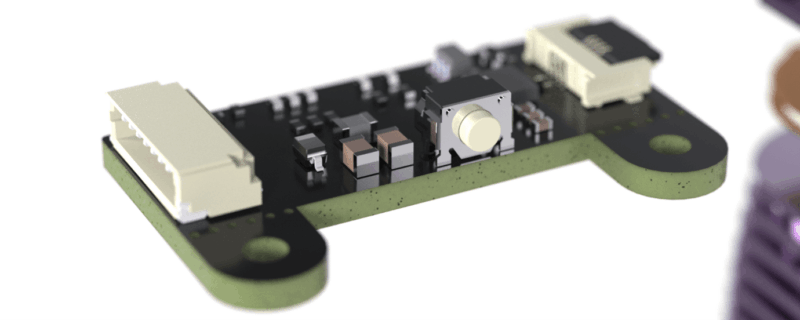

  • 1 x PZ Probe Board
  • 1 x Extension cables
  • 2 x M2 Board Mounting Screws
  • 1 x Bowden tubing
Frequently Asked Questions
  • Can I use PZ Probe with other Revo HotEnds?
    • PZ Probe was specifically designed to be paired with the customised Voron heatsink. It is possible to integrate the PZ Probe into other Hotends, however this is not something that we officially support.
  • Can I use PZ Probe in applications other than 3D printing?
    • Theoretically yes, but we do not officially support applications outside 3D printing.
  • Can PZ Probe be disassembled?
    • No, disassembling PZ Probe products voids your warranty. This is because both parts of the Voron heatsink were precisely assembled in house to a specific torque. Taking it apart will negatively affect the impact sensitivity.
  • How flexible is the flat flex cable?
    • It is flexible enough to accommodate Voron’s toolhead setup. However, prolonged extreme bending can damage the internal structure. You should always apply strain relief!
  • How long are the extension wires?
    • 5m
  • Is it a drop-in replacement?
    • Yes, PZ Probe is a drop-in replacement for the Voron StealthBurner but it’s not quite plug-and-play – an aptitude for light configuring may be required as sensitivity may need to be adjusted depending on your setup.

Additional information

Weight0.08 kg
Dimensions21 × 14 × 2 cm

Brand

E3D
