LDO Galileo 2 Z XL Drive

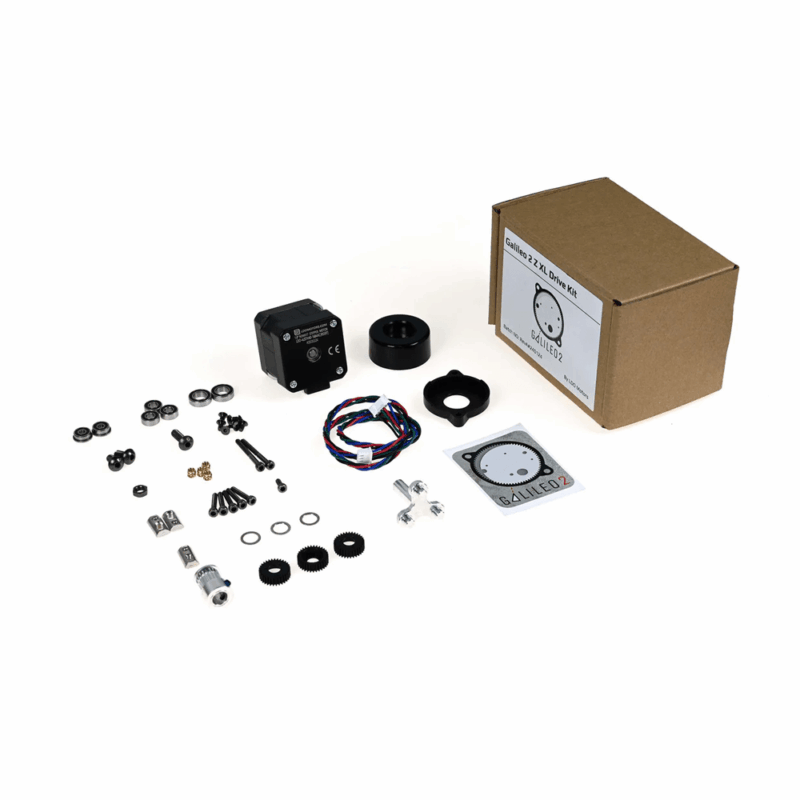

The Galileo 2 Z XL Drive (G2Z XL) is designed as a compact Z-drive for larger Voron V2 (300+ size) and larger Micron printers with heavier beds. It features the same 9:1 planetary gearbox and stepper in an easy-to-assemble package without the need for belts or pulleys (outside of the Z belt and pulley themselves). This design saves considerable space in the electronics compartment for small V2 printers, as well as the Micron 120 and 180 printers, allowing for more room where it’s needed most. On larger V2 printers the benefit is smaller, but still includes the higher gear ratio (up to 9:1 from 5:1) for increased print resolution. There are also multiple applications for user mods outside of the V2/Micron printers, such as a belted V0 Z drive.

You will require four Galileo 2 XL Z Drive kits per printer (select the kit of 4 for the discounted bundle price)

For those that are curious about what Galileo 2 offers over Galileo 1, here’s a short list of benefits:

  • Galileo 2 is a full redesign, moving to a 9:1 gear ratio and optimizing the gearbox design over Galileo 1. No parts from Galileo 1 are reused with Galileo 2.
  • Custom 9T stepper with a taller spur gear resulting in 20% higher contact surface area than existing 10T stepper designs, resulting in better wear characteristics and power transfer.
  • Proper meshing of gears due to number of stepper teeth being divisible by number of planets (9T sun / 3 planets), which gives even loading on the planets / sun gear and improves wear characteristics and power transfer. Previous designs with 10T steppers had uneven loading on the planet gears.


Klipper Settings for G2 Z XL Drivers (G2ZXL)

You must update both the gear_ratio and rotation_distance in your Klipper configuration after installing the Galileo 2 Z XL Driver. Additionally, your run_current will need to be updated.

[stepper_z]
rotation_distance: 40
gear_ratio: 9:1
microsteps: 32

[tmc2209 stepper_z]
run_current: 0.8

More info on GIT
