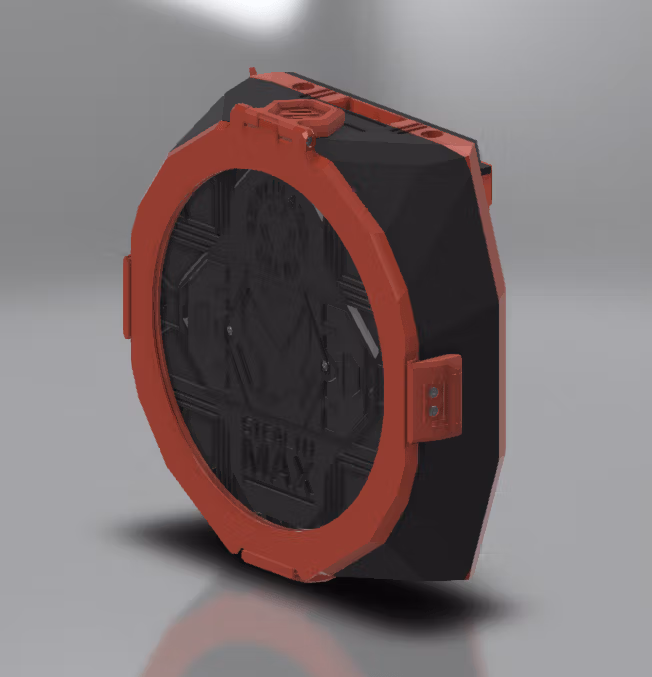

Nevermore StealthMax S Filter Kit Advanced
The “little” brother of the Nevermore StealthMax filter kit, suitable for smaller printers like the Voron 2.4 250mm.
The ultimate filter kit for your Voron printer: activated carbon plus Hepa filtering.
The air is cycled within your printing chamber, so no temperature loss by letting air out of the chamber.
This advanced kit contains all components needed except the printed parts and includes all electronic components for air quality monitoring:

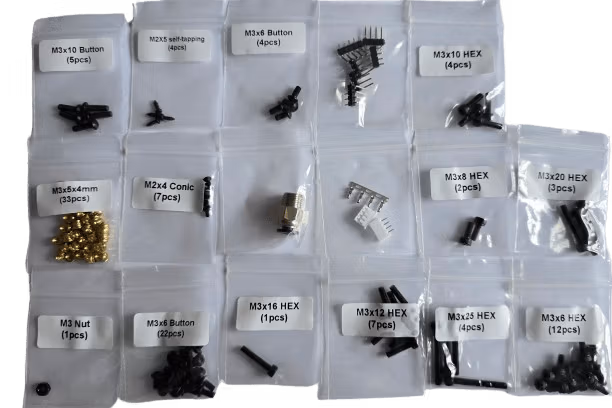

Nuts and Bolts
| M2x4mm Flat Head (<0.8mm) screws | 3 |
| M2x6mm Self Tapping | 4 |
| M3x6mm BHCS | 26 |
| M3x8mm SHCS | 2 |
| M3x10mm BHCS | 5 |
| M3x12mm SHCS | 7 |
| M3x16mm SHCS | 1 |
| M3x20mm SHCS | 2 |
| M3x25mm SHCS | 4 |
| Heat Inserts (M3x5x4mm) | 31 |
| M10 threaded DC connector (pair) | 1 |

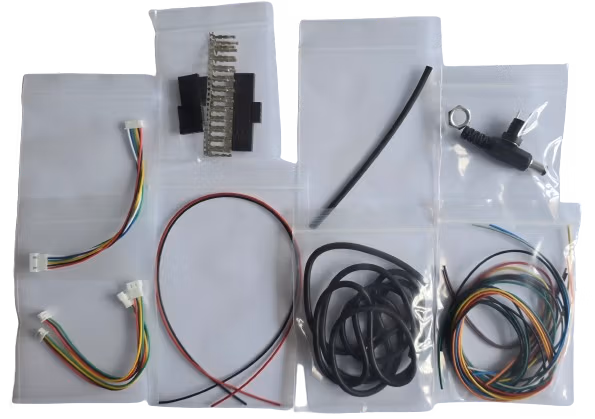

Electronics & Wiring
| M10 threaded DC connector (pair) | 1 |
| JST-PH 4-pin GPU fan male connector (with pins) | 1 |
| 4-pin 90deg angled male pin header 2.54mm | 3 |
| 5-pin 90deg angled male pin header 2.54mm | 1 |
| 4-pin straight male pin header 2.54mm | 2 |
| 5-pin Dupont style connector (2.54mm pitch) | 1 |
| 4-pin Dupont style connector (2.54mm pitch) | 5 |
| female pins for Dupont style connector | 30 |
| black wire | 1m |
| red wire | 0.3m |
| brown wire | 0.1m |
| violet wire | 0.1m |
| yellow wire | 0.4m |
| pink wire | 0.4m |
| green wire | 0.7m |
| blue wire | 0.3m |
| grey wire | 0.3m |
| Raspberry Pi Pico W (plus header pins) | 1 |
| SPG40 sensors | 2 |
| BME280 sensors | 2 |
| Mateksys 6-30V voltage regulator | 1 |

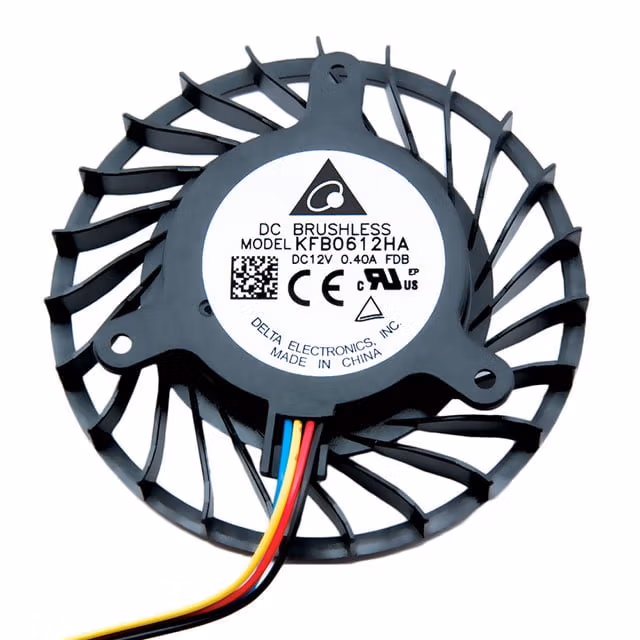

| 60mm Delta KFB0612HAFDB fan | 1 |
Extras

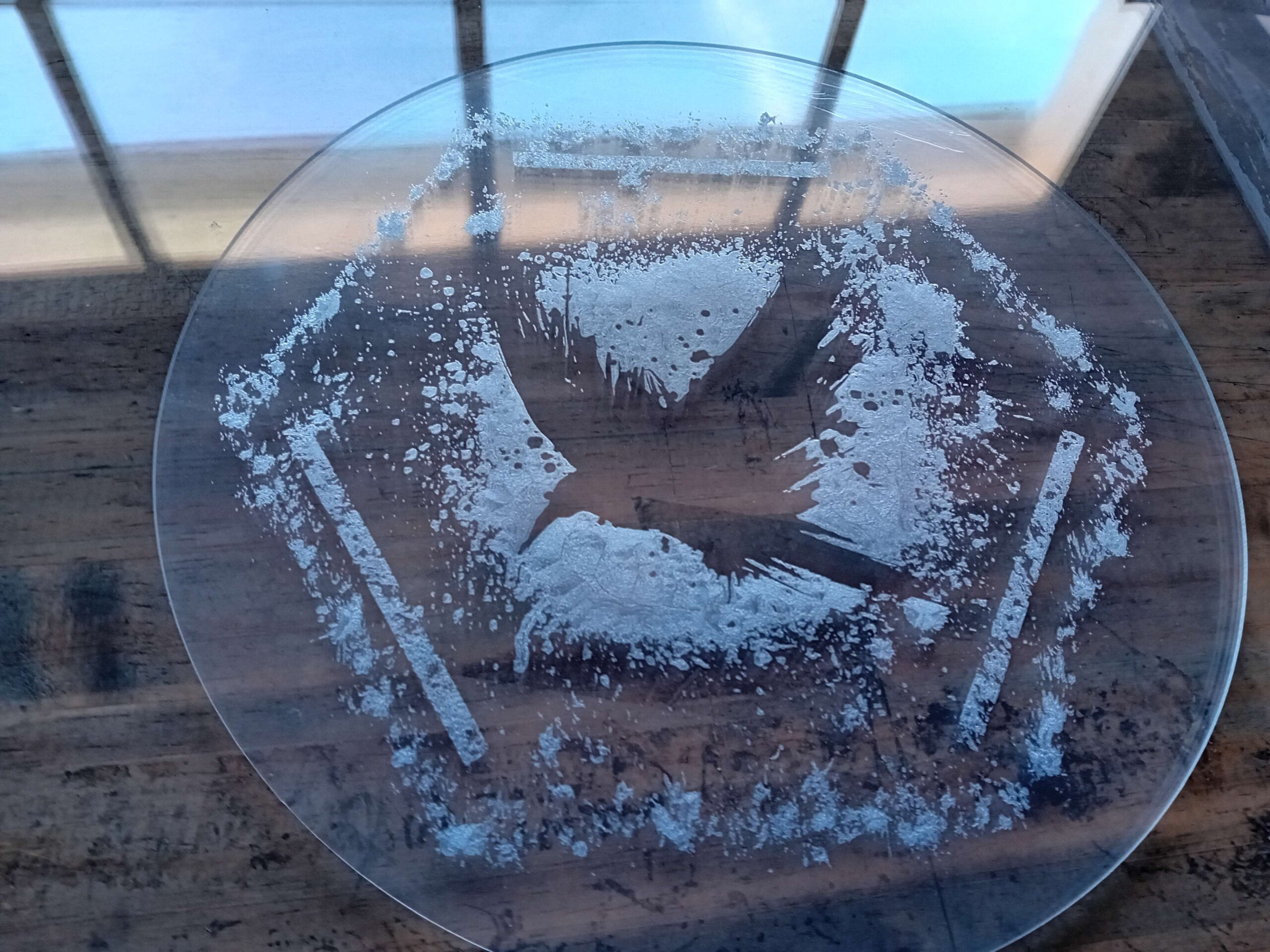

- 1x Linneo 200mm round polycarbonate (PC) sheet, 3mm thick (either plain PC or with engraved Nevermore Logo)
- 1x Pneumatic Bowden Fitting M10

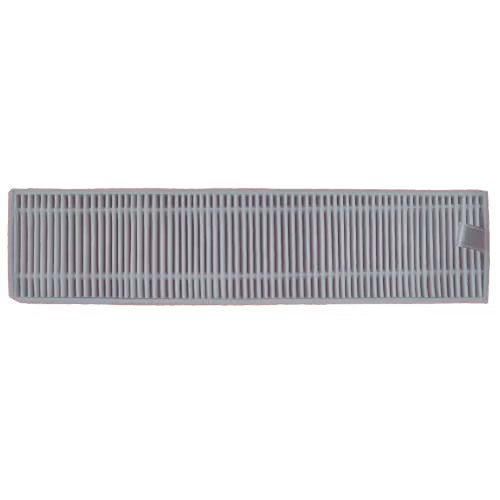

- 1x Nevermore Mini HEPA filter
- 1m Polymax Neopren Sponge Cord (3mm)
- 2x Nevermore XL Carbon refills
More info on GIT
