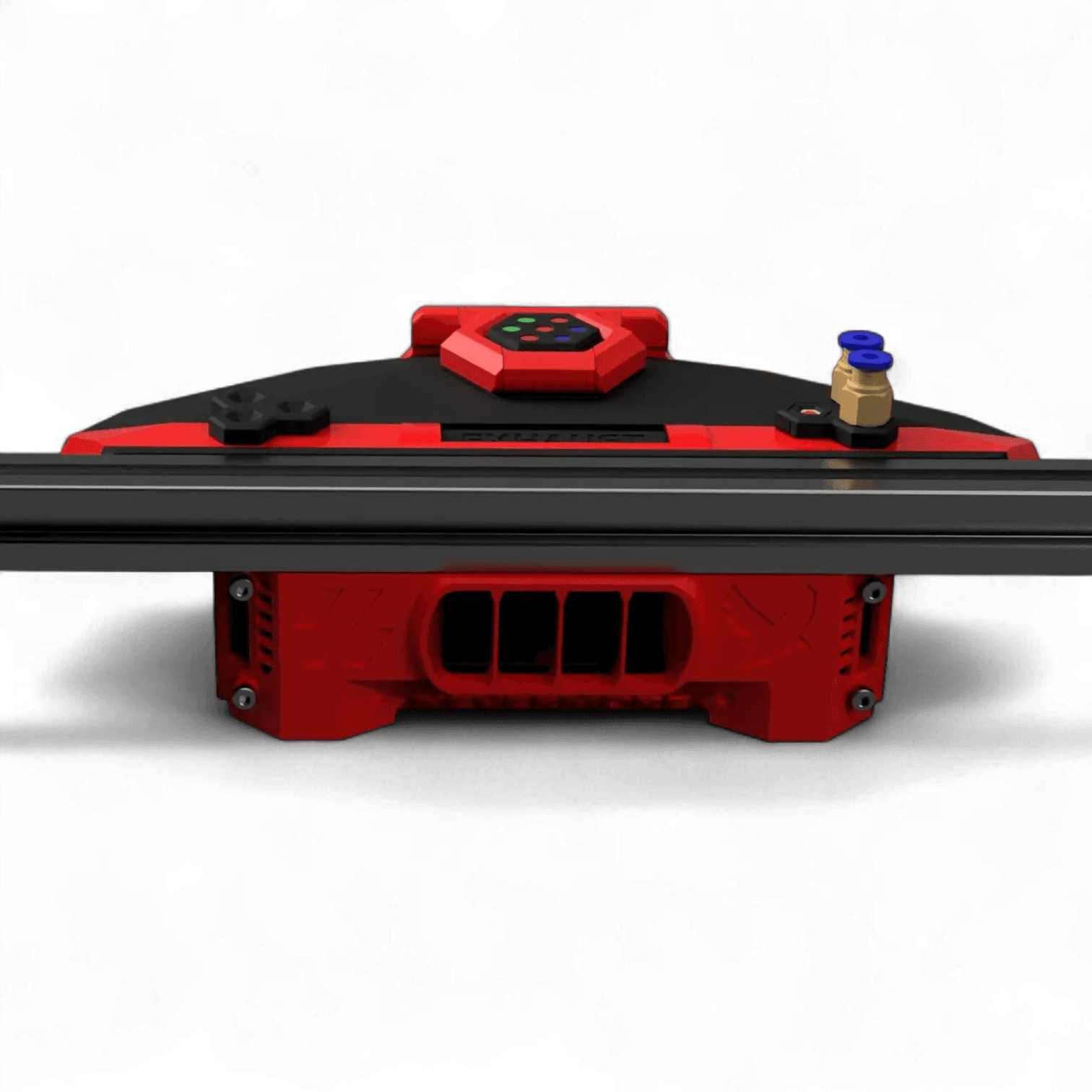

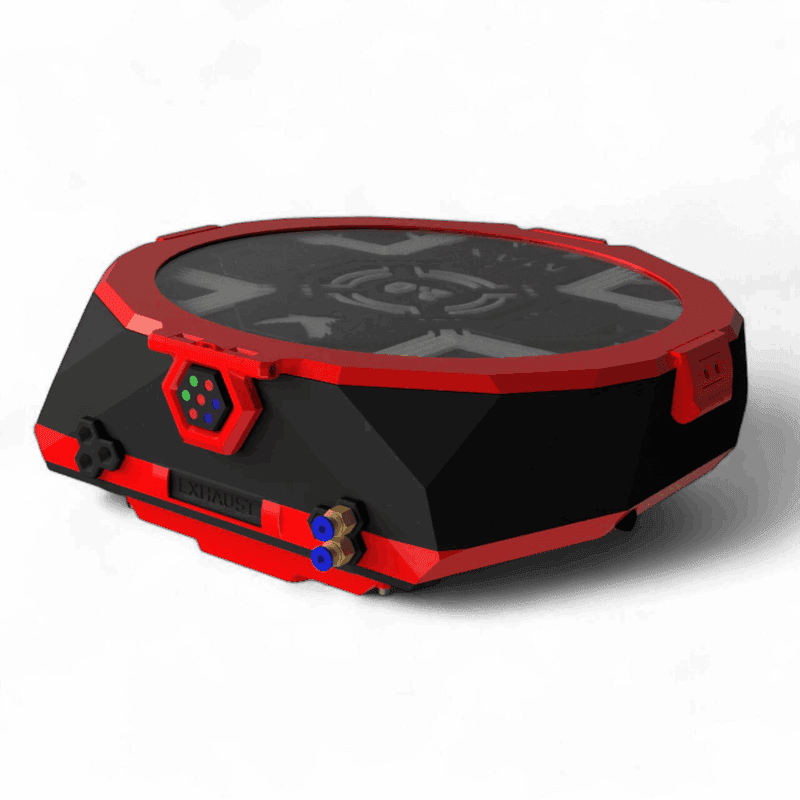

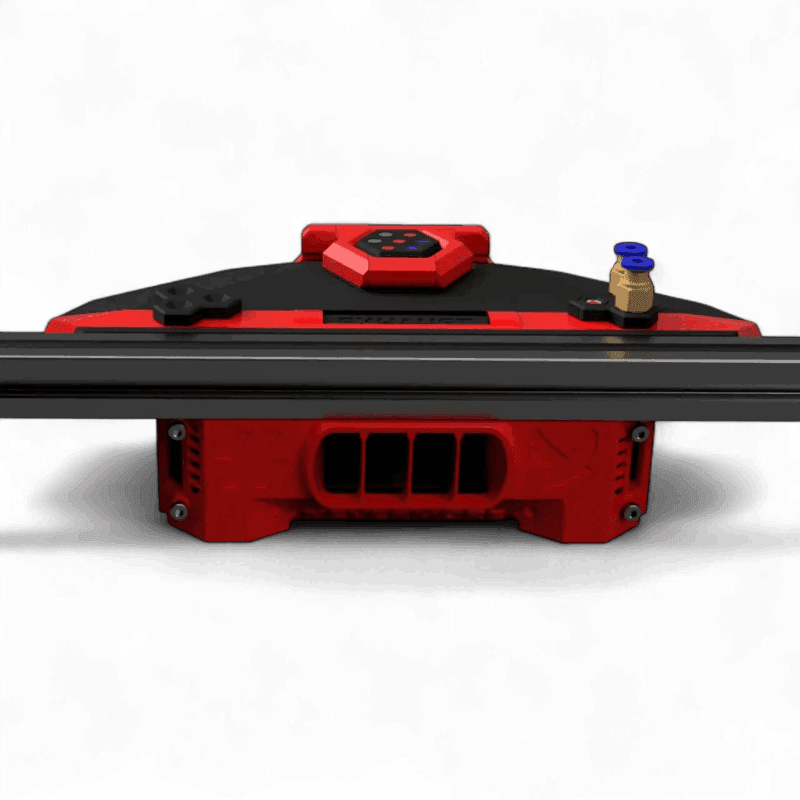

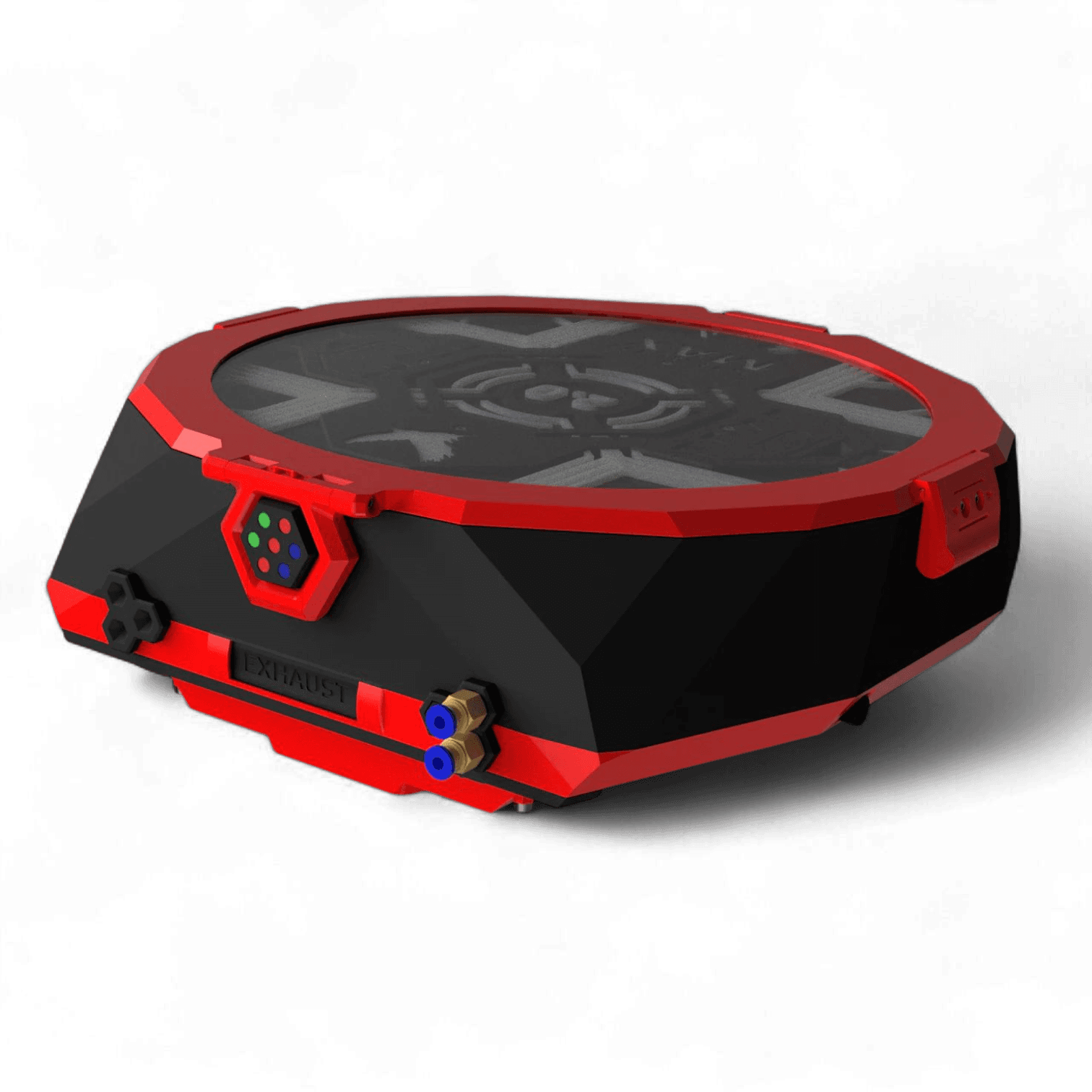

Nevermore StealthMax V2 Kit
This is the full kit for the Nevermore StealthMax V2, put together and tested by Central 3D Printing in the US.
The kit contains all you need (at the point of writing this… the StealthMax V2 BOM ist still quite “fluid”), except printed parts and carbon (or Scorch or Boost).
You can add spare Hepa filters here.
This is for the V2 version of the Stealthmax only!
Electronics Assembly Instruction Manual: Available Here
More info on GIT

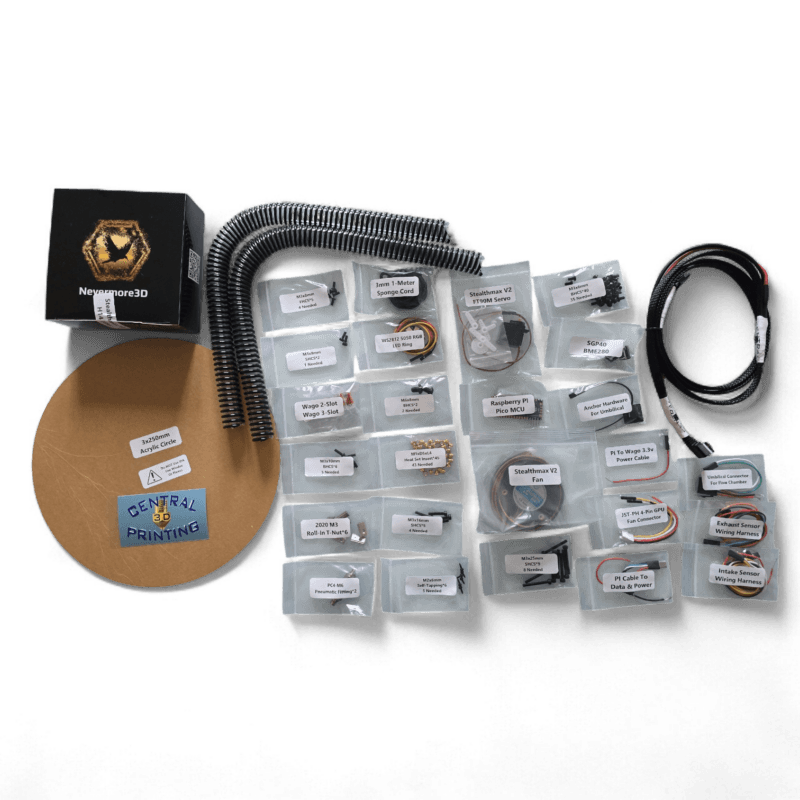

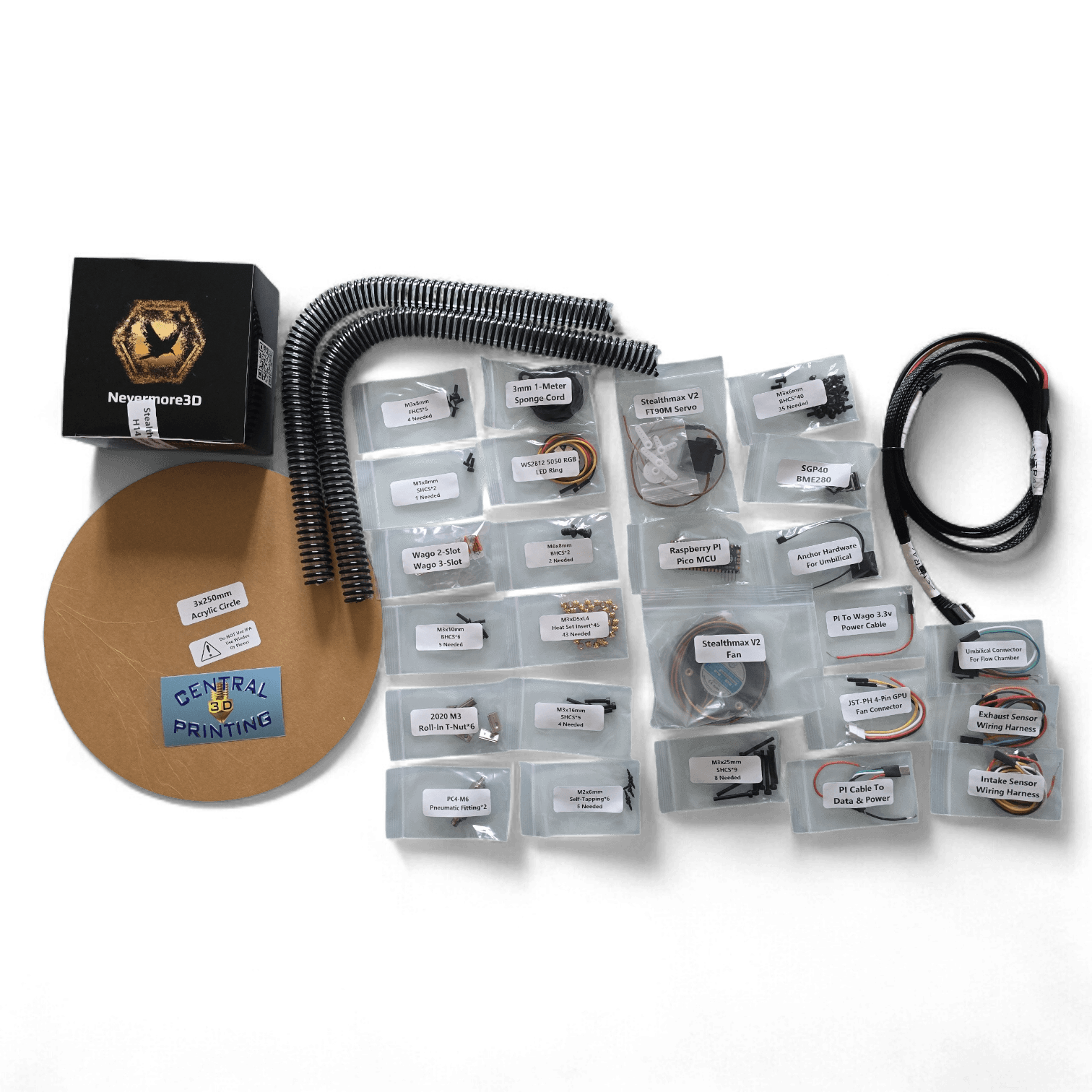

BOM Version R3:
| Description | Quantity |
| Raspberry PI Pico MCU With Headers Pre-Soldered | 1 |
| SGP40 Pre-Soldered Into Sensor Stack | 2 |
| BME280 Pre-Soldered Into Sensor Stack | 2 |
| Stealthmax V2 FT90M Servo Pre-Terminated | 1 |
| Stealthmax V2 Fan Pre-Terminated | 1 |
| Stealthmax V2 Filter H14 | 1 |
| WS2812 5050 RGB LED Ring Pre-Soldered & Pre-Terminated | 1 |
| 3mm 1-Meter Sponge Cord | 1 |
| Wago 2-Slot | 2 |
| Wago 3-Slot | 2 |
| 2020 M3 Roll-In T-Nut | 2 |
| 2020 M3 Roll-In T-Nut For CPAP | 4 |
| 17mm CPAP Tubing Pre-Cut For 350mm Chamber Size | 2 |
| 3x250mm Acrylic Circle | 1 |
| PC4-M6 Pneumatic Fitting | 2 |
| M3xD5xL4 Heat Set Insert – 43 Needed | 45 |
| M2x6mm Self-Tapping – 5 Needed | 6 |
| M3x8mm FHCS – 4 Needed | 5 |
| M3x6mm BHCS – 35 Needed | 40 |
| M3x8mm SHCS – 1 Needed | 2 |
| M3x10mm BHCS – 5 Needed | 6 |
| M3x16mm SHCS – 4 Needed | 5 |
| M3x25mm SHCS – 8 Needed | 9 |
| M6x8mm BHCS – 2 Needed | 2 |
| Anchor Hardware For Umbilical | 1 |
| Exhaust Sensor Wiring Harness – Pre-Terminated | 1 |
| Intake Sensor Wiring Harness – Pre-Terminated | 1 |
| PI to Wago 3.3v Power Cable – Pre-Terminated | 1 |
| PI Cable to Data & Power – Pre-Soldered & Pre-Terminated | 1 |
| Umbilical Connector For Flow Chamber – Pre-Terminated | 1 |
| JST-PH 4-Pin GPU Fan Connector – Pre-Terminated | 1 |
| USB & 24v Umbilical from Stealthmax V2 To Printer – Pre-Soldered & Pre-Terminated | 1 |
