Voron 2.4 & Trident Wiring Harness (350mm2) made by LINNEO

(1 customer review)

$153.95

Clear
SKU: 994194122 Categories: , , , , Tags: , , ,

Voron 2.4 & Trident Wiring Harness (350mm2) made by LINNEO

A Linneo Wiring Harness is custom made and has a dispatch time of  up to 4 weeks!

All Linneo harnesses are now Stealthburner compatible. If you order the Toolhead PCB option it will support the latest HartK Stealthburner PCB (incl. ERCF connectors). There’s also a new internal harness to wire up the LEDs!)

Are you not really a wiring guy, don’t like crimping? Here’s the solution: the Voron 2.4 & Trident harness. Perfectly fitted for your Voron printer, made in Europe by LINNEO to highest quality standards. This gives you the advantage of short delivery times but at the same time a high customisation level to match your printer configuration.

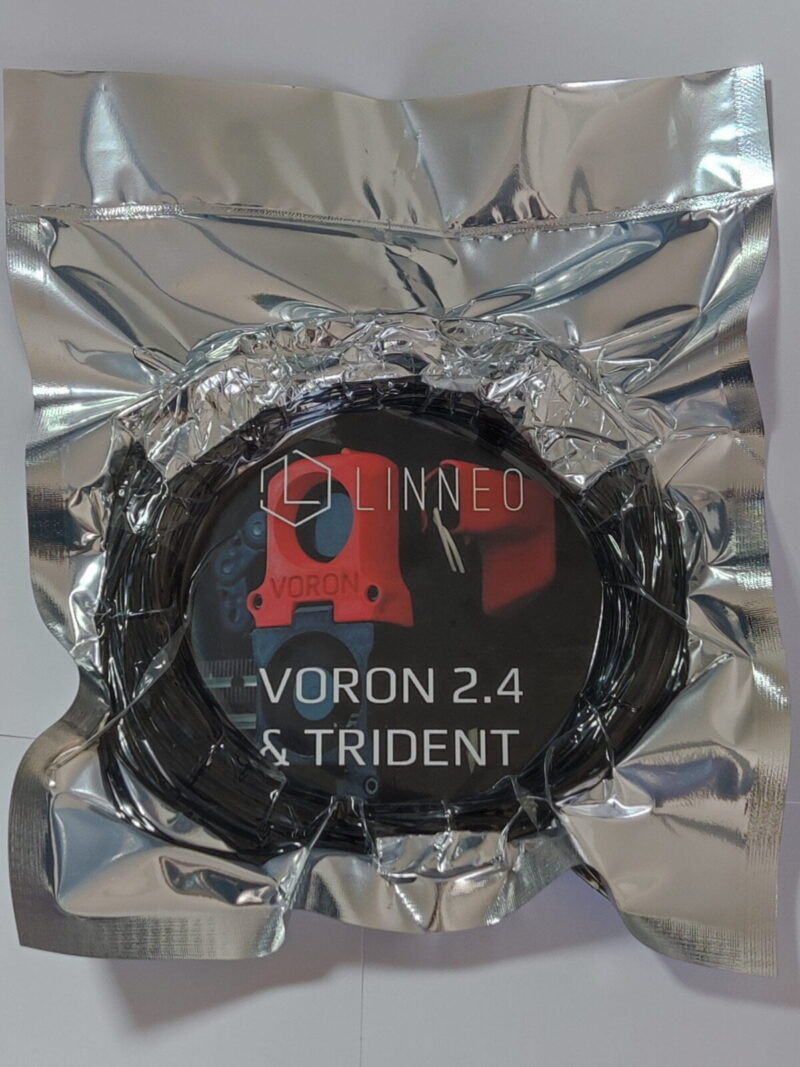

The Voron 2.4 & Trident harness is made from 0.25mm2 (0.5mm2 for heater wires) FEP cable. It is terminated with JST-type and Molex connectors and will be delivered securely packed and fully labelled. The necessary connector counter parts also included.

All harnesses are now shipping including the complete BOM wiring accessory kit which includes wire, crimps, connectors, etc. to build the remaining bits of the Voron wiring not covered by the harness itself:
  • 100x Nylon Cable Ties – Black
  • 5m 24AWG Linneoflon (FEP)
  • 5x JST-XH Connector Plug (4 Position)
  • 10x JST-XH Connector Plug (2 Position)
  • 5x JST-XH Connector Plug (3 Position)
  • 25x JST-XH Female Pin
  • 1x MLX Power Receptacle (3 Position) 50-84-2030
  • 1x MLX Power Plug (3 Position) 50-84-1030
  • 3x MLX Male Pin (02-08-2004)
  • 3x MLX Female Pin (02-08-1002)
  • 5x ring terminals (for M5 screws and 18AWG wire
  • NEW: additional pre-wired cable assemblies for the deck wiring (PSU, controller-to-SSR, SSR, Safety Bonding, Z Endstop cable, Power Inlet Wagos, see picture)

For use with the Voron V2.4 and Trident.

You can check the FAQ section which parts of the wiring are included and how to use the harness correctly.

Please select your

  • controller board
  • use of Stealthburner Toolhead PCB
  • colour: black, white, blue or red (if you select “contrast-colour” please define which colours you want in the order remarks text field, available contrast colours are: black, white, blue, red, green, yellow and orange)

and get going 🙂

If you need any more adjustments, let us know and we can get the loom even more customised for you.

Brand

Linneo

Weight 0.65 kg
Dimensions 35 × 25 × 5 cm
Controller

SKR 1.4, Spider, Duet, Octopus
Color

Black, Blue, Contrast – Colour, Red, White
Stealthburner PCB compatible?

yes, no

1 review for Voron 2.4 & Trident Wiring Harness (350mm2) made by LINNEO

  1. Alex Hough (verified owner) –

    I’m very pleased with this purchase. This is a high quality wiring harness that fits perfectly into my Voron 2.4. The customizations offered me the options I needed to have a plug and play experience. The product shipped with a lot of extras that made my life easier as I built out additional features on my printer. (Example: additional high and low guage wires, UART cable for connecting to the spider, zip ties, terminal connectors, dupont wires, etc). In addition to this, everything was clearly labeled and the online supporting documentation on the item is outstanding. I highly recommend picking this up if you are looking for a clean way to wire up your printer quickly!

Only logged in customers who have purchased this product may leave a review.

  • Which versions of the Afterburner Toolhead PCB (by HartK) are the Linneo harnesses compatible with?
    The harnesses are compatible with versions 3.1, 3.2, 4.0 and V3.rabbit of the Afterburner Toolhead PCB (up to 15/04/2022). After that date all "toolhead compatible" harnesses have been made for the HartK Stealthburner PCB . Please select the correct configuration of the harness, when you order it.
  • What do the abbreviations mean on the labels?
    Here the abbreviations used on the cable harness connectors: AM: A motor BM: B motor HO: Hotend heater 0 XY: X and Y endstops (only V2.4 variants) XE: X Endstop (only SW, V0.1 and V1.8 variants) E0: Extruder motor 0 T0: Thermistor 0 PF: Part cooling fan HF: Hotend fan BL (in earlier versions: PR): Bed leveling probe CT: chamber thermistor (in Afterburner Toolhead PCB variants) FS: filament sensor (for future use, not included yet) 24: 24V power supply (in Afterburner Toolhead PCB variants)
  • Which connector types are being used?
    The harnesses are built using JST XH connectors or MicroFit where needed. If the terminated end of a harness cannot plug directly into a component, the fitting counterpart connectors and pins are included.
  • Which wiring is included in the harness?
    The harnesses include all  the PTFE (Heluflon) low voltage wiring between the controller board and the steppers/toolhead/extruder which needs to be heat resistant and be fed through drag chains. High-voltage wiring (e.g. to the heated bed or from the mains power inlet to the power supplies) or general power wiring is included as wiring DIY pack, which provides you all necessary components to build the auxiliary harness (not included in the Linneo Lite harnesses). Also if the existing wires stepper motors come with wire which can be used (because it doesn't need to be PTFE) this is not included (e.g. the z stepper wiring for the Voron 2.4)
  • What is the delivery time?
    Every harness is made to order (except it is shown as "in stock" in this case the harness is ready for shipment immidiately) and has a delivery time as indicated on the article page.
  • Which printer variants are supported by Linneo harnesses?

    At the moment we are supporting:

    • Voron 0/0.1 (the Voron 0 can use the V0.1 harness, there will be a few wires spare, which can be used later on if you want to upgrade from 0 to 0.1)
    • Voron 2.4/Trident (250, 300 and 350 variants)
    • Voron Switchwire

    Special requirements (e.g. larger beds, taller z height, different electronics) can be supported on request, just contact us.

  • Is a BAT85 diode integrated in the harness?
    It depends. If you are going for an Afterburner PCB variant, the BAT85 diode is already on the PCB, so not necessary to be included in the harness. The same if you are going for a Spider board or a newer Duet, here the BAT85 is already included on the board. If you go for a SKR variant without the Afterburner PCB (V2.4 or Switchwire), the BAT85 will be place within the harness.
