WW-BMG for A4T Hardware Kit

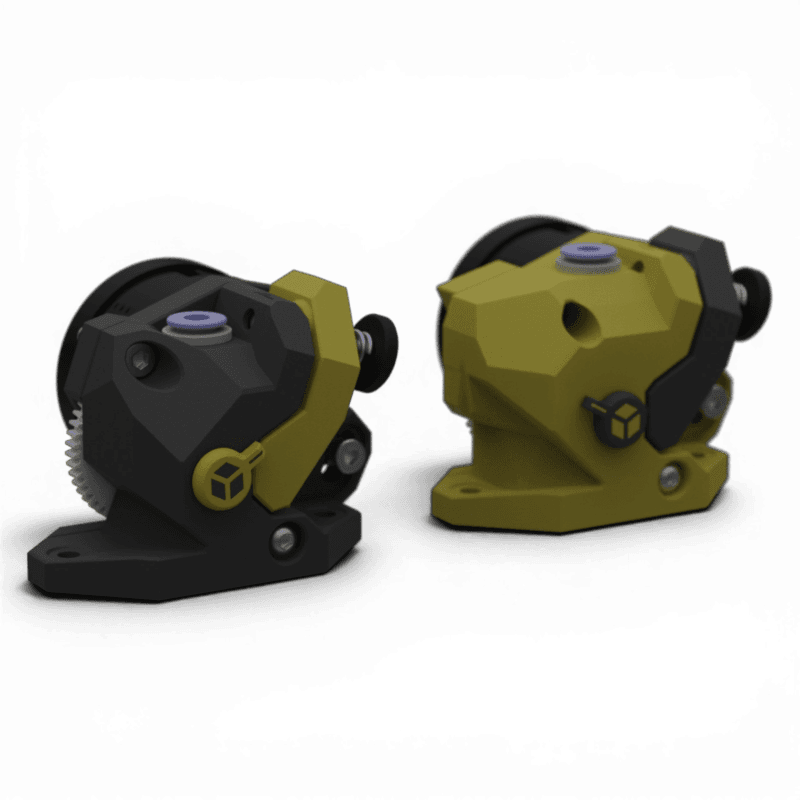

Complete hardware kit for the WW-BMG for A4T extruder by DW-TAS.

A modified version of the Wristwatch BMG extruder from bythorsthunder. This version has been made compatible with A4T by removing a small notch from the motor plate and changing the extruder mounting pattern from Orbiter 2 spacing to Sherpa-Mini spacing.

• This version has been optimised to work as well as possible with the RIDGA v2 drive gear.
• Multiple filament path improvements
• Options added for:
  • Smooth bearing idler, and
  • Dual filament sensors

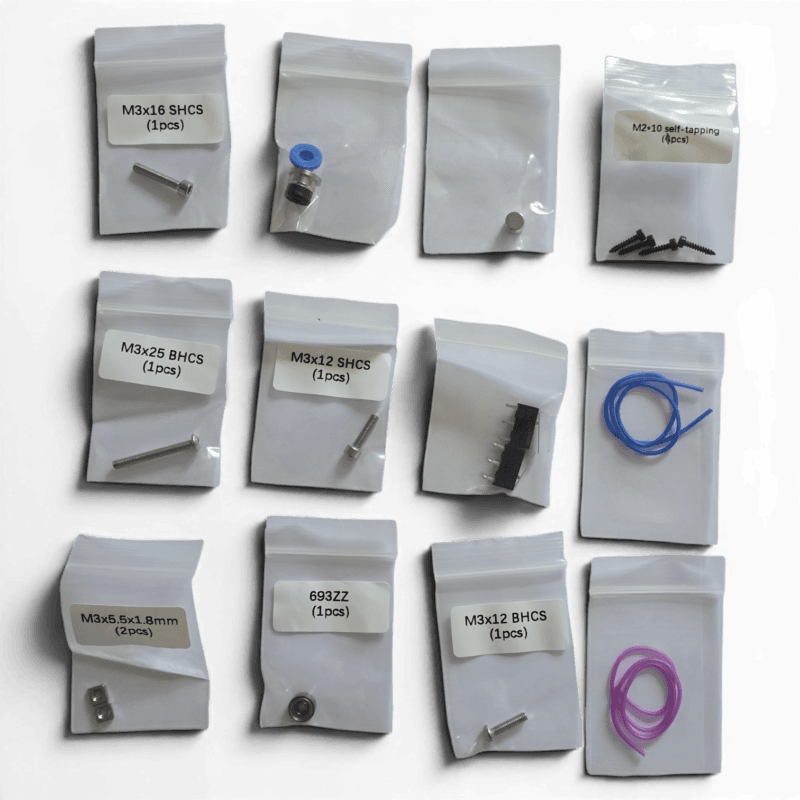

The kit includes:

• 1x M3x25 BHCS screw
• 2x DIN562 M3 Square nut
• 1x M3x16 SHCS
• 1x M3x12 SHCS
• 1x ECAS 4mm
• 1x 693ZZ bearing
• 1x M3x12 BHCS
• 2x D2F microswitch
• 2x 6x3mm disc magnet
• Thin wire 26 AWG
• 4x M2x10 self tapping screw

Additonally you will need:

• printed parts
• Bondtech OEM RIDGA v2
