VORON WINGS OUTRIGGER SET
Mandala Roseworks Voron Wings Outrigger Set US$40.95US$75.95

Mandala Roseworks Voron Wings Outrigger Set

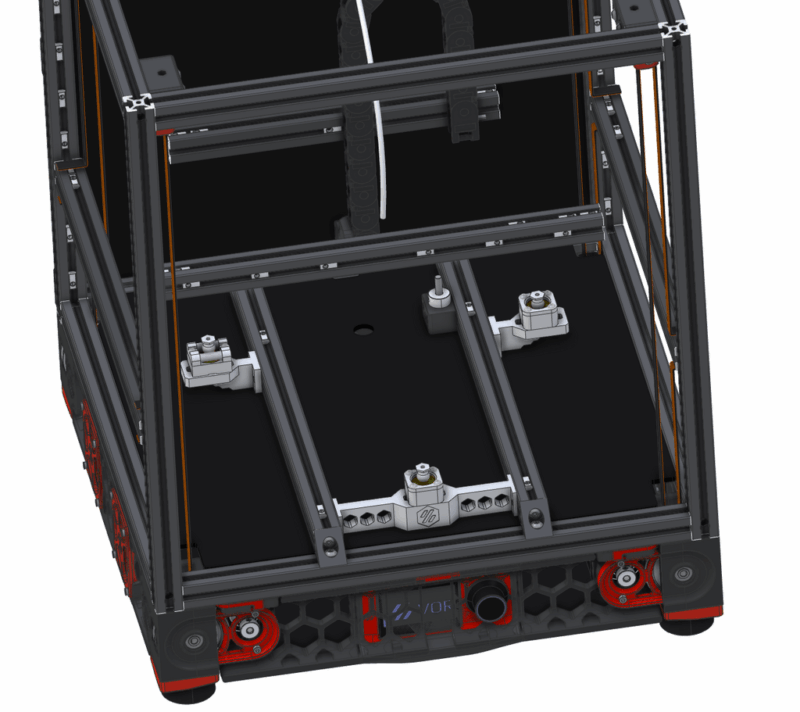

Time to give your Voron 2.4 a set of Wings (set of 2)!

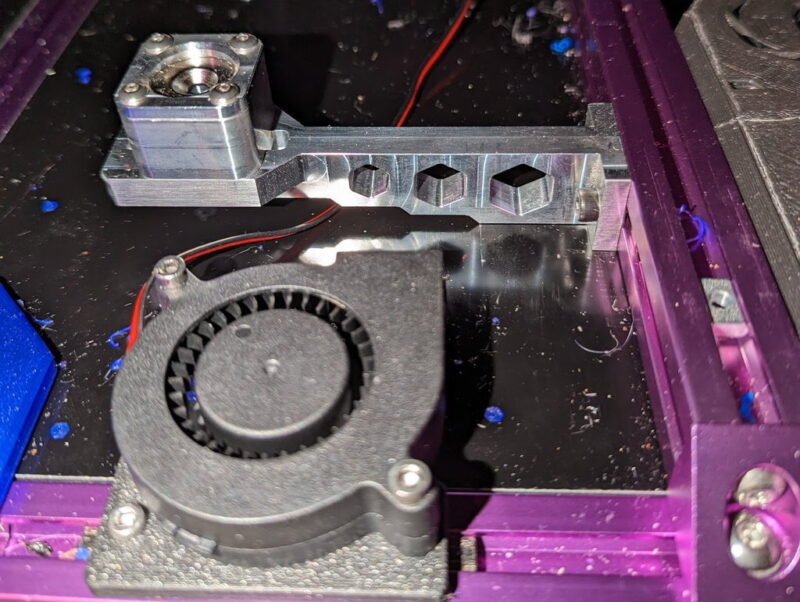

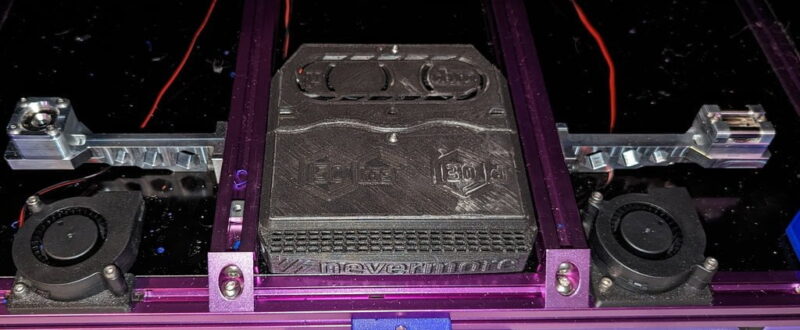

The 2.4 can now “Spread it’s Wings” to have a larger footprint for the bed to mount. This works by utilizing the Trident mounting holes on the sides of MRW Ultraflat Beds. In addition, it adds stability for use with Voron Tap.

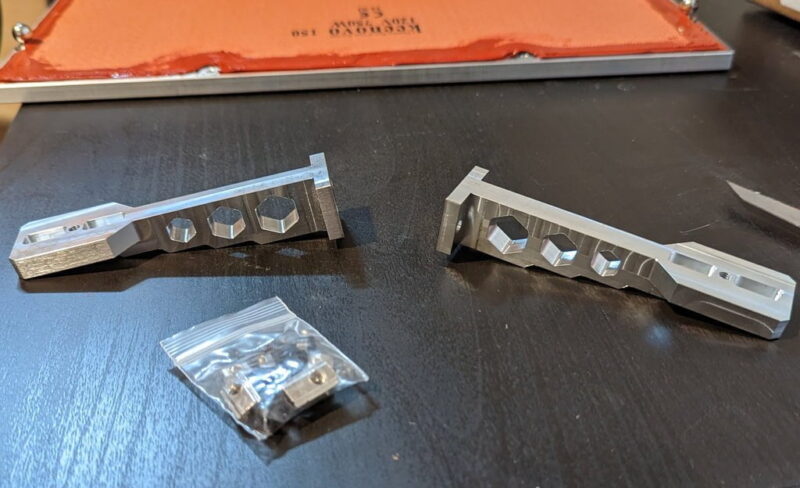

The Wings are designed to work with the Matched Height Kinematic kit and our line of Ultraflat beds. Though we are reasonably sure other beds will work as well if they have the Trident mounting holes. The Wings kit includes everything you need for mounting to your Voron 2.4 (4 M4 bolts, and 4 M4 tnuts for 2020).

Mandala Roseworks have had this idea in the back of their head for a long time, but with the introduction of Voron Tap, they decided it was time to implement the Voron Wings.

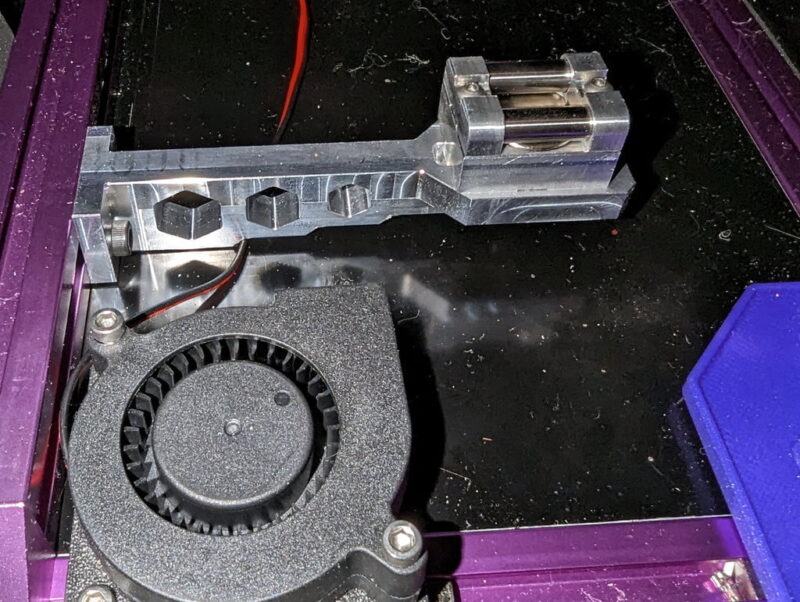

As the pin mount doesn’t have a super strong magnetic hold. The Voron tap triggers with around 600g of force, the wings increase the weight needed to disconnect the pin mount substantially. (Weight was applied to the right-front corner to test this, which is diagonally across from the pin mount.)

Force needed to release Pin Mount using Voron Wings:

  • 250 – 1300g
  • 300 – 1500g
  • 350 – 2500g

PLEASE NOTE: The wings are not explicitly required to use TAP. They are an outrigger set to increase the footprint of the bed to increase the amount of force needed to dislodge the magnetic hole of the kinematic set.

Additional information

Weight0.2 kg
DimensionsN/A
Size

250mm2, 300mm2, 350mm2

Brand

Mandala Rose Works
