Linneo XY/AB Wiring Harness

19.14 (incl. VAT France)

The Linneo XY/AB Wiring harnesses allows you to easily wire-up the A/B steppers and X/Y end stops of your printer to your controller board.

In stock

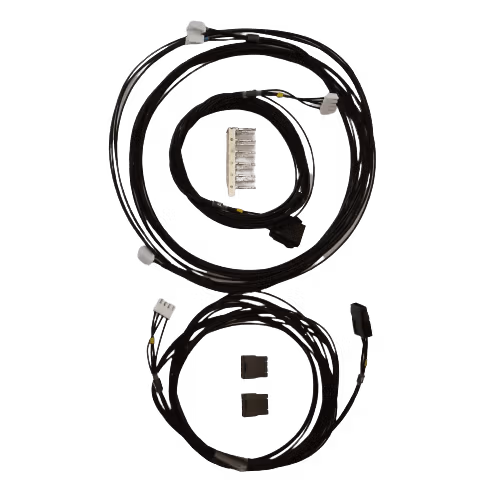

Linneo AB/XY harness
Linneo XY/AB Wiring Harness 19.14 (incl. VAT France)
Only 2 items left in stock!

Linneo XY/AB Wiring Harness

In addition to one of the CAN harnesses, you may also want to go for the Linneo XY/AB Wiring harnesses, which will allow you to easily connect the A/B steppers and X/Y end stop of your printer to your controller board.

The harnesses is made from black FEP wire and they are terminated with:

XY-harness (x1):
  • 2x JST 3-pin connectors for the X/Y end stops
  • 1x JST 4-pin connector for the X/Y end stops controller board side
AB-harness (x2):
  • Molex Microfit (4-pin) with counterpart connector and pins for the A & B motors
  • JST 4-pin connector for connection to the controller board





Additional information

Weight0.08 kg
Dimensions15 × 10 × 3 cm

Brand

Linneo
