Linneo Umbilical CAN harness

US$57.95

Linneo Umbilical CAN harness

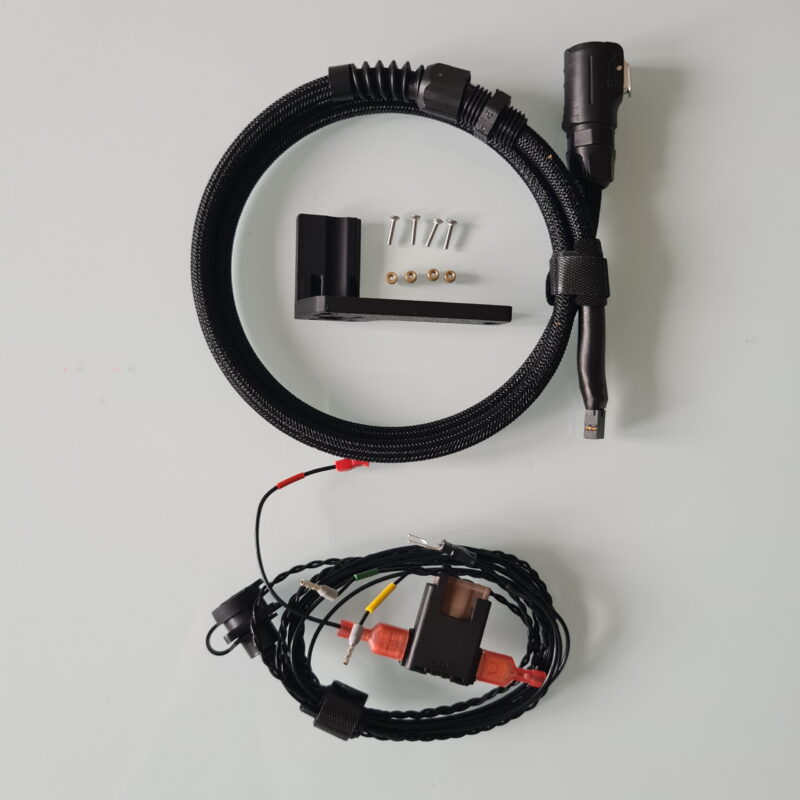

Pre-made FEP CAN harness consisting out of twisted CAN-H & CAN-L wires plus two wires for 24V supply made from IGUS wire covered in protective sleeve for umbilical use. A second FEP wire based harness will connect the umbilical harness to the controller board under the deck. The interconnection is done by a CNLinko connector pair.

Linneo UmbilicalCAN Harness (XT30)
Linneo Umbilical CAN harness US$57.95

Linneo Umbilical CAN harness

Pre-made FEP CAN harness consisting out of twisted CAN-H & CAN-L wires plus two wires for 24V supply made from IGUS wire covered in protective sleeve for umbilical use. A second FEP wire based harness will connect the umbilical harness to the controller board under the deck. The interconnection is done by a CNLinko connector pair.

Variants:

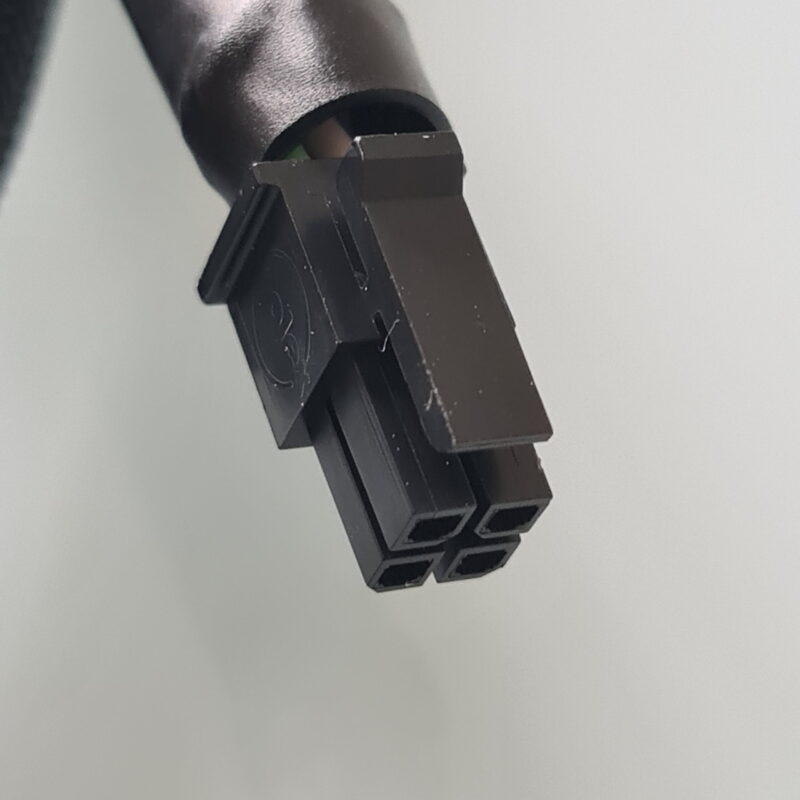

  • Molex connector (for BTT EBB36 & EBB42), Huvud (needs re-pinning of the Molex connector in a different order, get the Linneo pin tool if you need a Molex un-pin tool or let me know, Linneo can produce the Huvud variant on demand)

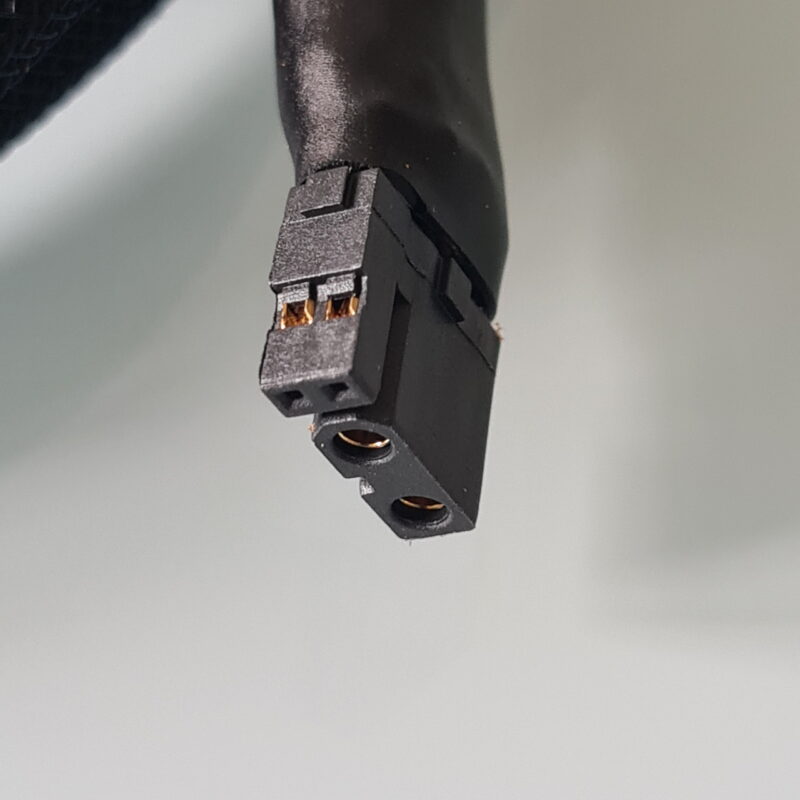

  • XT30 connector (for Fysetc SB2040, BTT EBB SB2209 and EBB SB2240)

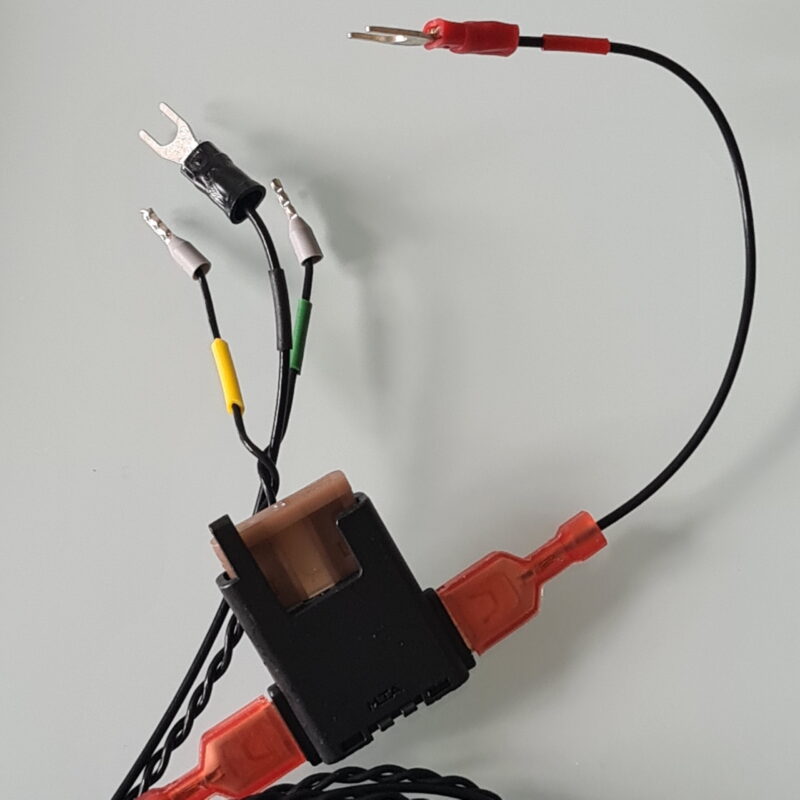

For maximum flexibility the harness has on the controller board side two fork connectors for 24V & GND and two ferrule connectors for CAN-H & CAN-L.

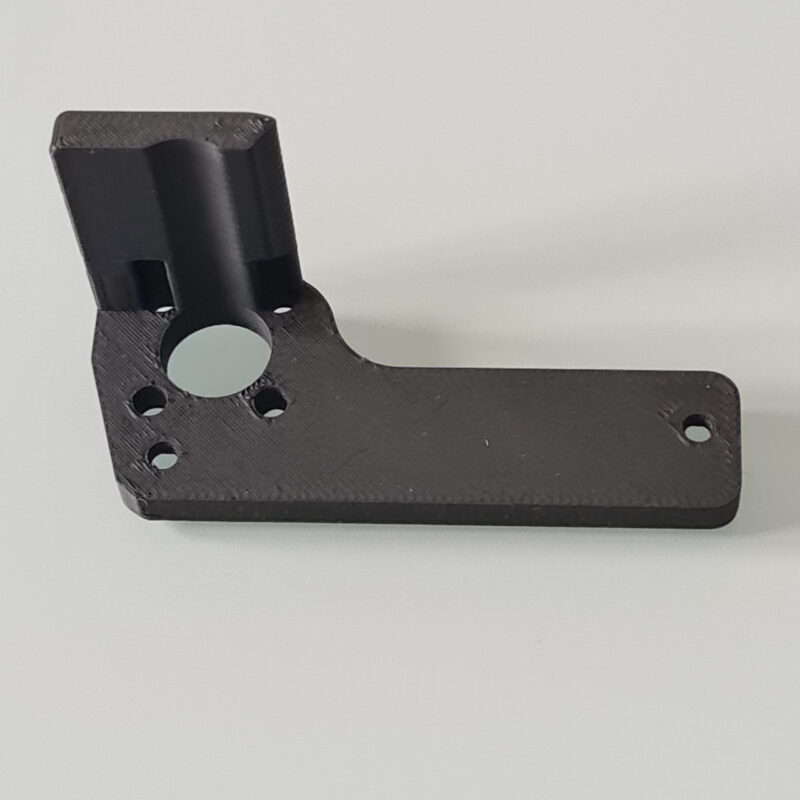

Comes fasteners for the CNLinko connector. A mount for the harness can be printed using this file: umbilical_mount.

Pin out:
  • Green: CAN H
  • Yellow: CAN L
  • Black/red: 24V
  • Black/black: GND

Lenghth of the harness: ~0.8m (fits for Voron 250mm up to 350mm build size)

Additional information

Weight0.29 kg
Dimensions23.5 × 17 × 3.5 cm
Variant

Molex connector, XT30 connector

Color

Black, Blue, Red

Brand

Linneo
